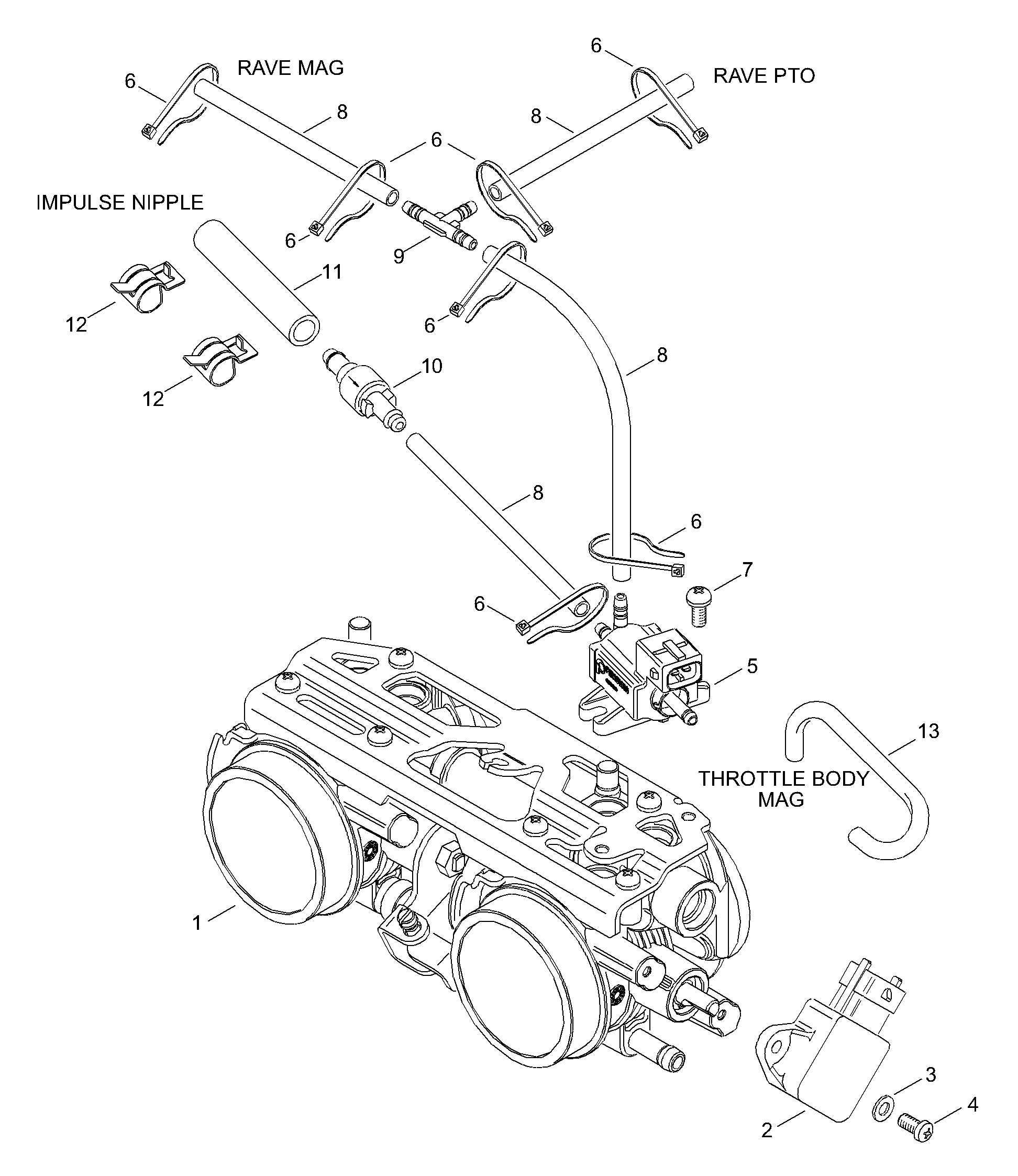

01- Engine для BRP Lynx Sport Touring 800 - 2003
-
№АртикулНазвание
-
1420889190 Throttle bodyThrottle body
-
2270000251 Throttle sensorThrottle sensor
-
3234041600 WasherWasher
-
4208641660 Screw M4x16Screw M4x16
-
5420664630 Solenoid valveSolenoid valve
-
6420866718 Tie rapTie rap
-
7420940011 Screw M5x10Screw M5x10
-
8420660571 Air hose, 180 mmAir hose, 180 mm
-
9420660550 T-fittingT-fitting
-
10420660540 Check valveCheck valve
-
11420660561 Air hose, 50 mmAir hose, 50 mm
-
12420853510 ClampClamp
-
13420660990 Formed hoseFormed hose
