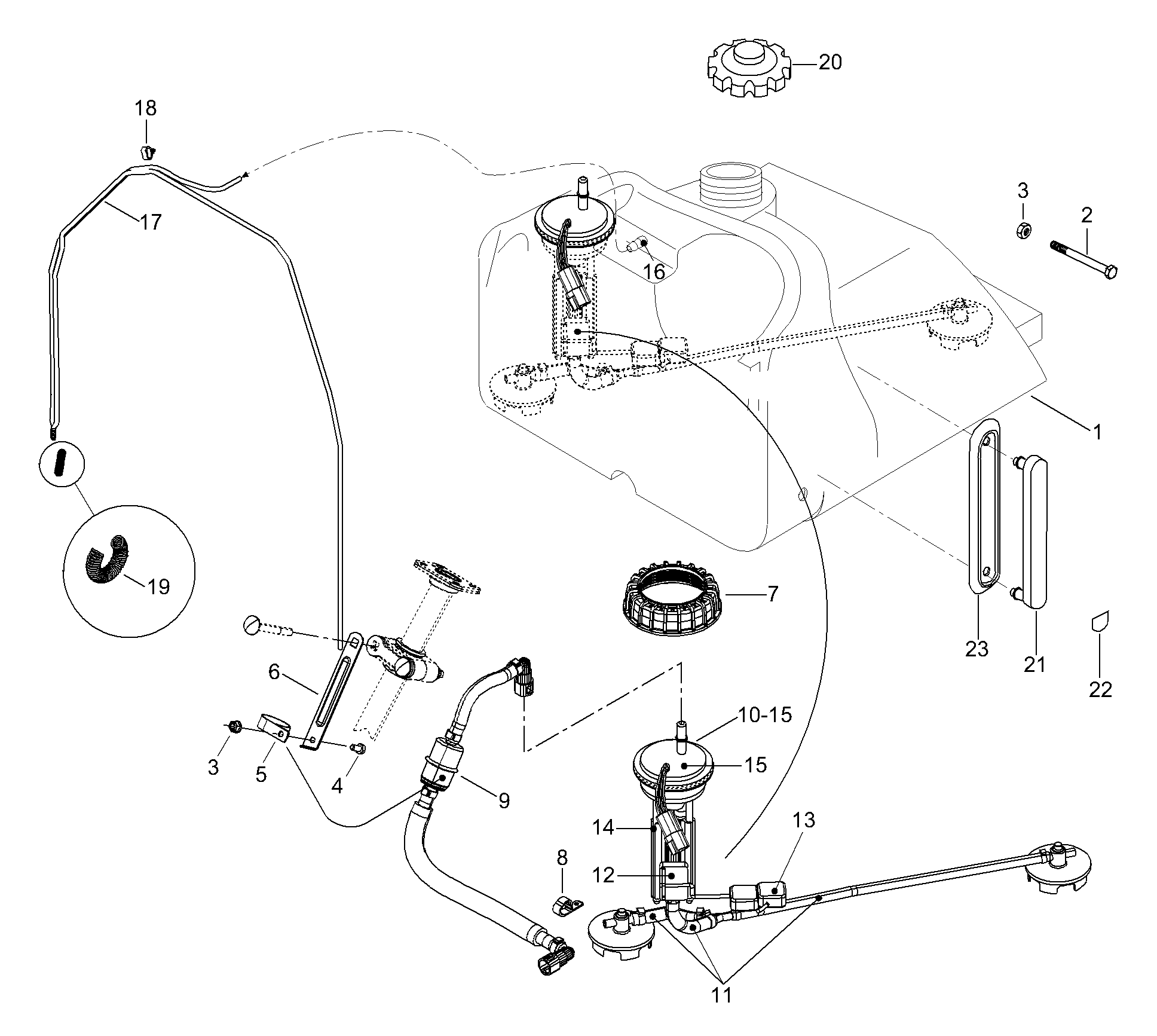

02- Fuel Tank для BRP Lynx Sport Touring 800 - 2003
-
№АртикулНазвание
-
1605149201 Fuel tankFuel tank
-
240193 Screw M6x50Screw M6x50
-
333200 Elastig flanged nut M6Elastig flanged nut M6
-
440029 Screw M6x16Screw M6x16
-
5513033047 ClampClamp
-
6513033057 BracketBracket
-
7513033040 CoverCover
-
827051 ClampClamp
-
9513033004 Fuel filterFuel filter
-
10513033006 Fuel pump assy. Includes items 10 thru 15Fuel pump assy. Includes items 10 thru 15
-
11861301700 Fuel hose kitFuel hose kit
-
12861301800 Resistor card kitResistor card kit
-
13861301900 Float lever kitFloat lever kit
-
14861302000 Pump kitPump kit
-
15861302100 Regulator kitRegulator kit
-
1619051 FittingFitting
-
1739035 Airhose 5/3Airhose 5/3
-
18513032923 Tube clampTube clamp
-
19414818200 SpringSpring
-
20572039600 Cap assemblyCap assembly
-
21572015900 Fuel gaugeFuel gauge
-
22549200 Fuel labelFuel label
-
23570018000 Housing gaugeHousing gauge
