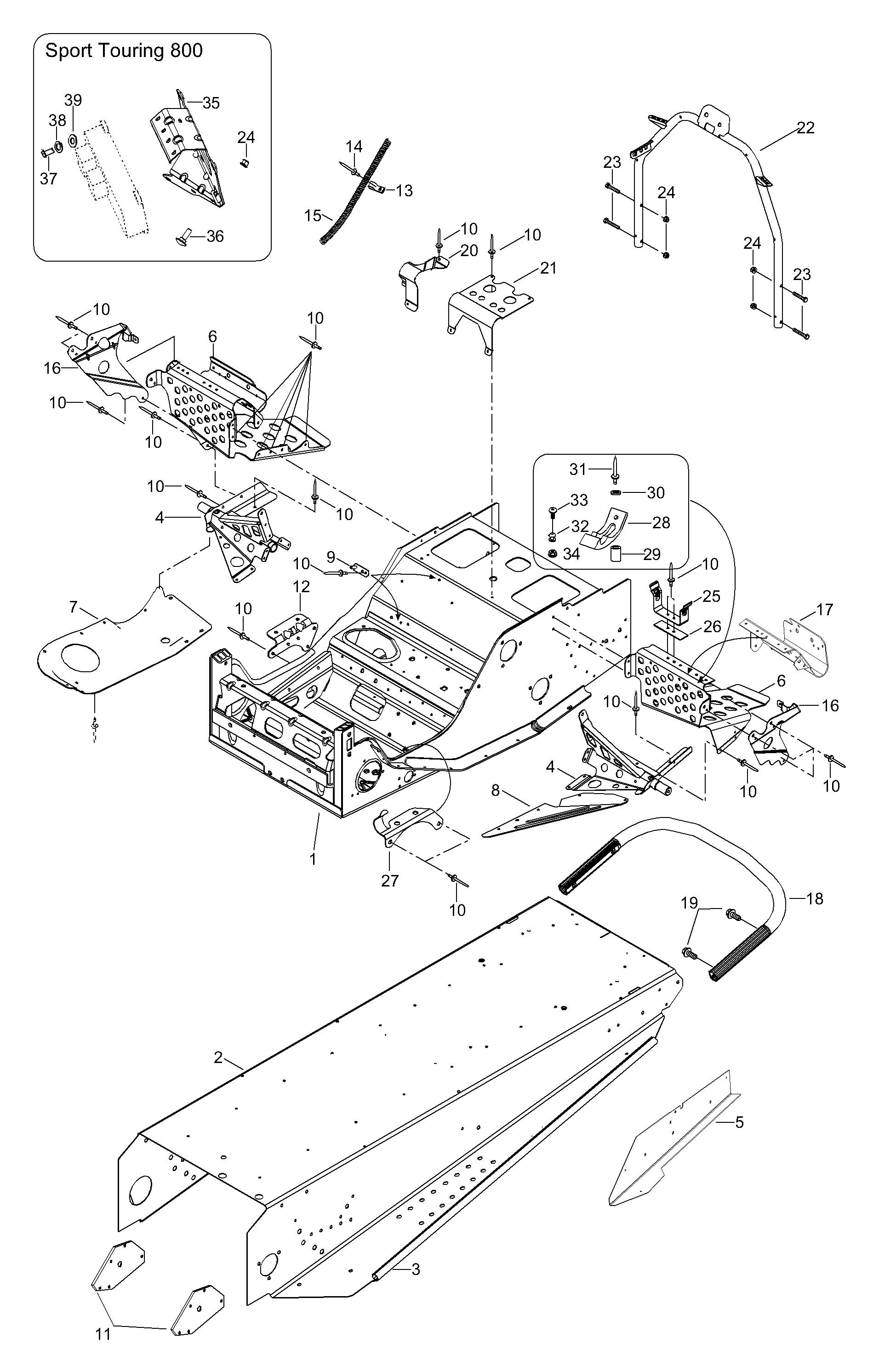

09- Frame для BRP Lynx Sport Touring 800 - 2003
-
№АртикулНазвание
-
1605149069 Frame assy, black. Includes items 1 thru 17Frame assy, black. Includes items 1 thru 17
-
35347257 SupportSupport
-
45246775 R.H. supportR.H. support
-
45246776 L.H. supportL.H. support
-
55348353 R.H. bracketR.H. bracket
-
55348354 L.H. bracketL.H. bracket
-
6605150082 R.H. front footrestR.H. front footrest
-
65146823 L.H. front footrestL.H. front footrest
-
7518322636 R.H. bottom pan plateR.H. bottom pan plate
-
8605349267 L.H. reinf. plateL.H. reinf. plate
-
9518319728 Double bracketDouble bracket
-
1036489 RivetRivet
-
115348321 SupportSupport
-
12518322635 Muffler supportMuffler support
-
1327092 ClipClip
-
1436087 RivetRivet
-
15518321569 Rope guideRope guide
-
165146912 R.H. footrest reinforcem.R.H. footrest reinforcem.
-
165146913 L.H. footrest reinforcem.L.H. footrest reinforcem.
-
17605149607 R.H. toe holdR.H. toe hold
-
175146918 L.H. toe holdL.H. toe hold
-
18517243800 Rear bumper, blackRear bumper, black
-
1940336 Screw M8x20Screw M8x20
-
20518322699 Hose supportHose support
-
21518310400 Air intake supportAir intake support
-
225247856 Handle steering supp.Handle steering supp.
-
2340002 Screw M6x40Screw M6x40
-
2433200 Nut M6Nut M6
-
25518202100 Pulley Guard bracketPulley Guard bracket
-
26518207500 ReinforcementReinforcement
-
27515175254 Cable supportCable support
-
28531955 LatchLatch
-
29543417 SleeveSleeve
-
30543392 WasherWasher
-
3136072 RivetRivet
-
32605449087 Counter rollCounter roll
-
3340168 Screw M4x25Screw M4x25
-
3433008 Nut M4Nut M4
-
35512059613 BracketBracket
-
3640327 Screw M6x12Screw M6x12
-
3740030 Screw M6x20Screw M6x20
-
3820052 Spring washerSpring washer
-
3920009 WasherWasher
