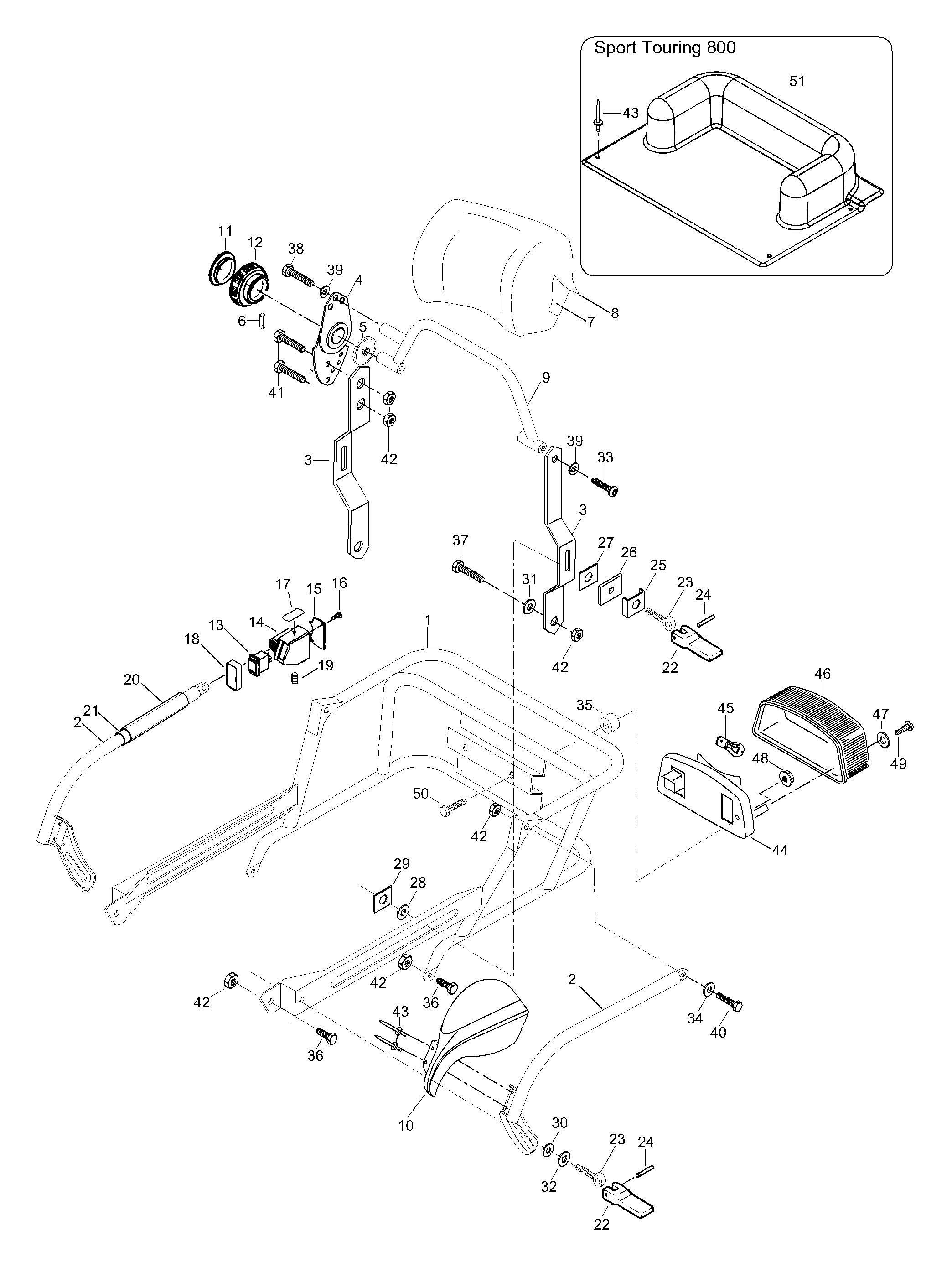

09- Body для BRP Lynx Sport Touring 800 - 2003
-
№АртикулНазвание
-
15146808 Rack assyRack assy
-
25342838 R.H. ArmR.H. Arm
-
25342839 L.H. ArmL.H. Arm
-
35342974 R.H. ArmR.H. Arm
-
35342975 L.H. ArmL.H. Arm
-
4414813300 ReclinerRecliner
-
55342954 SleeveSleeve
-
641007 PinPin
-
75343163 Backrest foamBackrest foam
-
8605148627 Backrest coverBackrest cover
-
95342906 BackrestBackrest
-
10572089400 R.H. ProtectorR.H. Protector
-
10572089500 L.H. ProtectorL.H. Protector
-
11414821000 CapCap
-
12414820900 StripStrip
-
13511000001 SwitchSwitch
-
14572089200 Heater switch housingHeater switch housing
-
15572089300 PlatePlate
-
16414473200 ScrewScrew
-
17418001800 Heat grip decalHeat grip decal
-
18511000002 ProtectorProtector
-
19414440800 Screw M8x10Screw M8x10
-
20415050300 GripGrip
-
21515175387 Heater elementHeater element
-
225243419 Lock leverLock lever
-
23517250100 Eye boltEye bolt
-
24414821400 PinPin
-
25517257300 GuideGuide
-
26570027400 Rubber plateRubber plate
-
27517251300 ShimplateShimplate
-
28414819500 Sleeve bearingSleeve bearing
-
295443899 Thread PlateThread Plate
-
3020085 Washer, nylonWasher, nylon
-
3120082 WasherWasher
-
3220080 WasherWasher
-
3340351 Allen screw M8x20Allen screw M8x20
-
3420004 WasherWasher
-
35549103 SleeveSleeve
-
3640336 Screw M8x20Screw M8x20
-
3740855 Screw M8x25Screw M8x25
-
3840036 Allenscrew M8x20Allenscrew M8x20
-
3920072 Lock washerLock washer
-
4040006 Screw M8x35Screw M8x35
-
4140037 Screw M8x25Screw M8x25
-
4233201 Elastic flanged nut M8Elastic flanged nut M8
-
4336037 RivetRivet
-
44414979400 Taillamp housingTaillamp housing
-
45410504000 BulbBulb
-
46414513700 LensLens
-
47414516400 WasherWasher
-
4833200 Nut M6Nut M6
-
49414516300 ScrewScrew
-
5040065 Screw M6x45Screw M6x45
-
51605349519 ProtectorProtector
