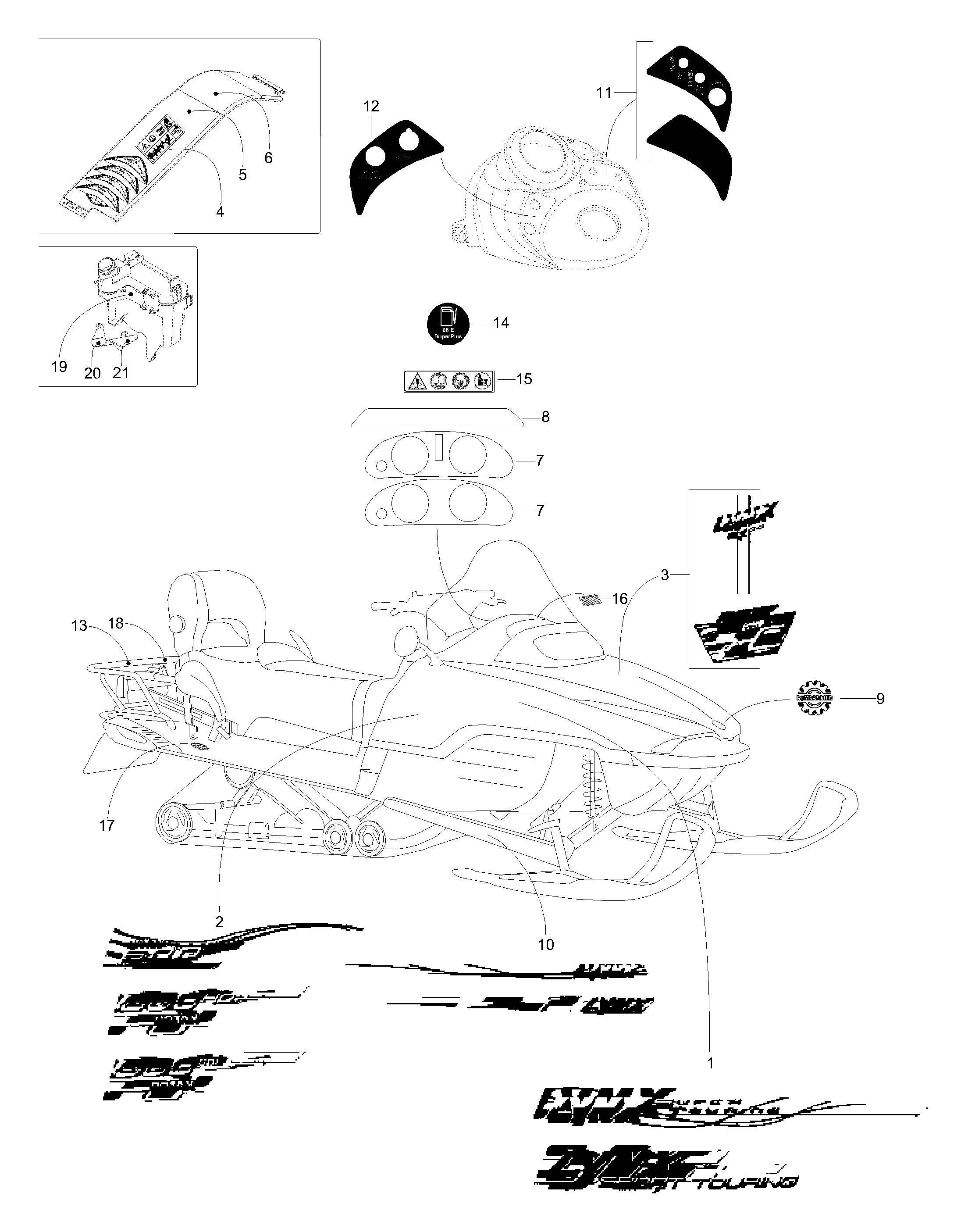

09- Decals для BRP Lynx Sport Touring 800 - 2003
-
№АртикулНазвание
-
1605348524 R.H. Hood decal, upperR.H. Hood decal, upper
-
1605348525 L.H. Hood decal, upperL.H. Hood decal, upper
-
2605348559 R.H. lower decal, hoodR.H. lower decal, hood
-
2605348560 L.H. lower decal, hoodL.H. lower decal, hood
-
4605448801 Warning labelWarning label
-
55447014 Pulley decalPulley decal
-
65447012 Oil check decalOil check decal
-
7605249323 Control panel decalControl panel decal
-
85346800 Instruction decalInstruction decal
-
9516000983 Logo-BombardierLogo-Bombardier
-
10605348529 Decal, swing arm L.H.Decal, swing arm L.H.
-
10605348528 Decal, swing arm R.H.Decal, swing arm R.H.
-
11605448798 R.H. console decalR.H. console decal
-
12605449573 Decal D.E.S.S./startDecal D.E.S.S./start
-
135447931 Instruction symbol decalInstruction symbol decal
-
145447020 Fuel label, 95EFuel label, 95E
-
155447124 Instruction symbol decalInstruction symbol decal
-
1621060 Reflector, brightReflector, bright
-
1721135 Reflector, yellowReflector, yellow
-
18605448799 Decal, pulling barDecal, pulling bar
-
19605449628 Label, oil levelLabel, oil level
-
20605449565 Instruction decalInstruction decal
-
21605449579 Oil decal, XP-S IIOil decal, XP-S II
Все узлы модели:
- 01- Air Silencer
- 01- Crankshaft Assy
- 01- Cylinder
- 01- Engine
- 01- Engine Mount Plate/Muffler
- 01- Oil Tank
- 01- Radiator, Hoses
- 02- Fuel Tank
- 03- Magneto
- 04- Rewind Starter
- 05- Chaincase
- 05- Clutch
- 05- Crankcase
- 05- Drive Axle
- 05- Driven Pulley
- 06- Brake Assy
- 07- Steering
- 08- Front Suspension
- 08- Front Suspension
- 08- Rear Suspension
- 08- Rear Suspension
- 08- Rear Suspension
- 09- Body
- 09- Body
- 09- Bottom Pan
- • 09- Decals
- 09- Frame
- 09- Hood
- 10- Electric
- 10- Electric Starter
- 10- Electric Starter
- 11- Accessories
