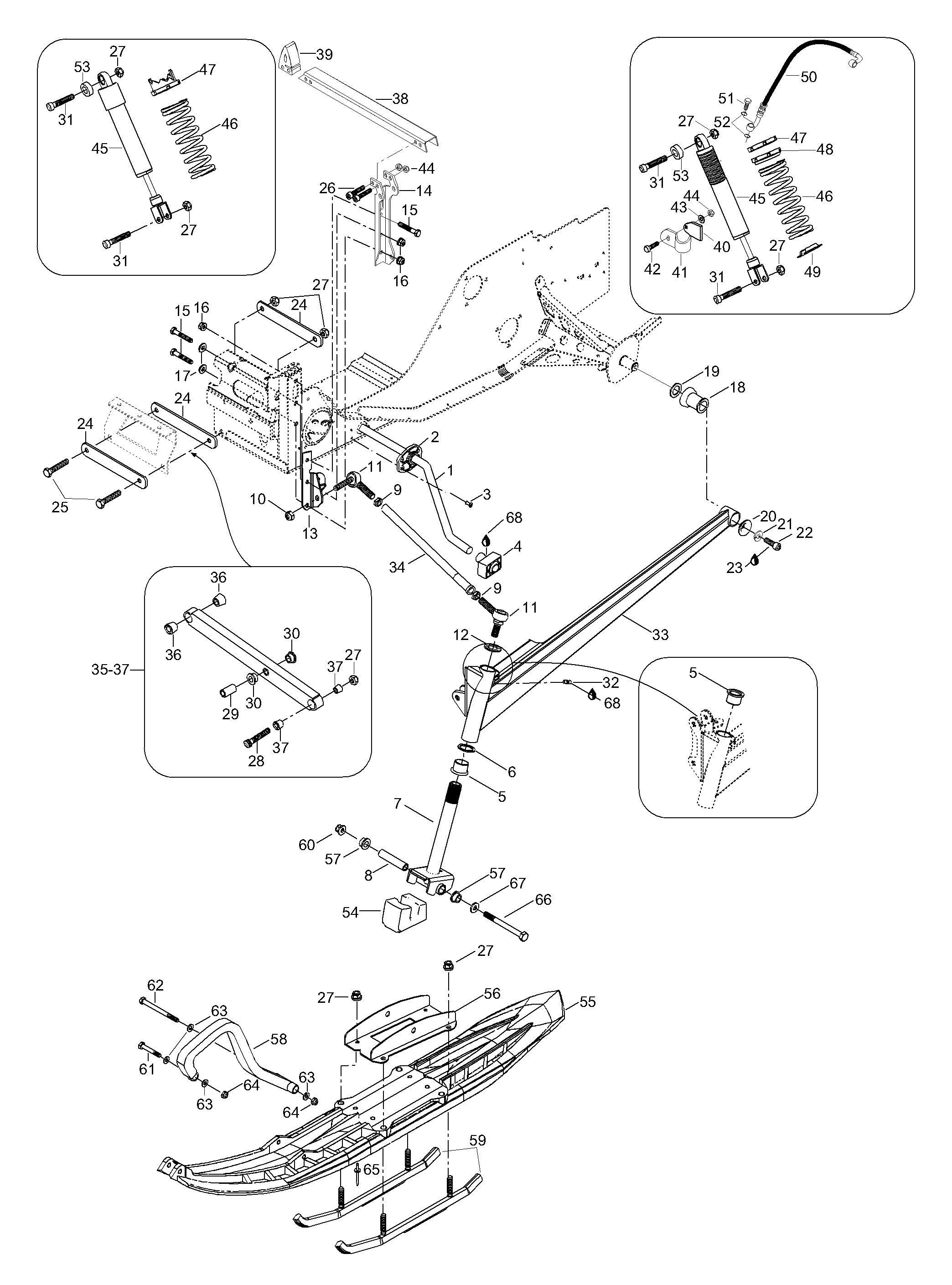

08- Front Suspension для BRP Lynx Sport Touring 800 - 2003
-
№АртикулНазвание
-
15246797 Sway barSway bar
-
2505070191 SleeveSleeve
-
336087 RivetRivet
-
4505070117 Block-joint ballBlock-joint ball
-
5505070003 BushingBushing
-
6505070004 WasherWasher
-
7605248927 Ski legSki leg
-
8506133300 SpacerSpacer
-
933048 Jam nut M12Jam nut M12
-
1033087 Jam nut elastic M12Jam nut elastic M12
-
1131092 Ball jointBall joint
-
1220074 Lock washerLock washer
-
135348064 R.H. Upper arm bracketR.H. Upper arm bracket
-
135348063 L.H. Upper arm bracketL.H. Upper arm bracket
-
145245488 Shock bracketShock bracket
-
145246395 Shock bracketShock bracket
-
1540010 Screw M8x55Screw M8x55
-
1633201 Elastic flanged nut M8Elastic flanged nut M8
-
1720104 Washer, hardenedWasher, hardened
-
18570062200 DamperDamper
-
19503146700 WasherWasher
-
20506079600 CupCup
-
2120014 Spring washerSpring washer
-
2240289 Allen screw M8x25Allen screw M8x25
-
23293800060 Loctite 243, 10mlLoctite 243, 10ml
-
245346112 Support plateSupport plate
-
2540814 Screw M10x110Screw M10x110
-
2640345 Allen screw M6x40Allen screw M6x40
-
2733012 Nut elastic M10Nut elastic M10
-
2840136 Allen screw M10x50Allen screw M10x50
-
295441433 BushingBushing
-
3031088 BearingBearing
-
3140837 Allen screw M10x55Allen screw M10x55
-
3234011 Grease fittingGrease fitting
-
33605248970 R.H. swing arm, full moonR.H. swing arm, full moon
-
33605248969 L.H. swing arm, full moonL.H. swing arm, full moon
-
345346122 Upper armUpper arm
-
35605248971 Lower arm, full moon. Includes items 35 thru 37Lower arm, full moon. Includes items 35 thru 37
-
365447769 Inner sleeveInner sleeve
-
375447770 Outer sleeveOuter sleeve
-
385348107 BracketBracket
-
395348087 Rubber damperRubber damper
-
405448228 BracketBracket
-
415446702 BracketBracket
-
4240846 Lock screw M6x16Lock screw M6x16
-
4320009 WasherWasher
-
4433010 Nut elastic M6Nut elastic M6
-
45605348898 Shock assy. Includes items 45 thru 53Shock assy. Includes items 45 thru 53
-
4523172 ShockShock
-
4625050 SpringSpring
-
47230053 Adjusting ringAdjusting ring
-
48230054 Guide springGuide spring
-
49230076 Guide springGuide spring
-
50230062 HoseHose
-
51415093810 ScrewScrew
-
52415038700 O-ringO-ring
-
53230055 Rubber bushingRubber bushing
-
54506151233 Stopper-skiStopper-ski
-
55505070727 Ski linerSki liner
-
56605349140 BridgeBridge
-
57605448774 SleeveSleeve
-
58505070963 Plastic handle, blackPlastic handle, black
-
595347985 RunnerRunner
-
6033074 Elastic flange nut M10Elastic flange nut M10
-
6140009 Screw M8x50Screw M8x50
-
6240264 Screw M8x90Screw M8x90
-
6320004 WasherWasher
-
6433011 Nut elastic M8Nut elastic M8
-
6536072 RivetRivet
-
6640814 Screw M10x110Screw M10x110
-
6720105 Washer, hardenedWasher, hardened
-
68413711500 Synthetic greaseSynthetic grease
