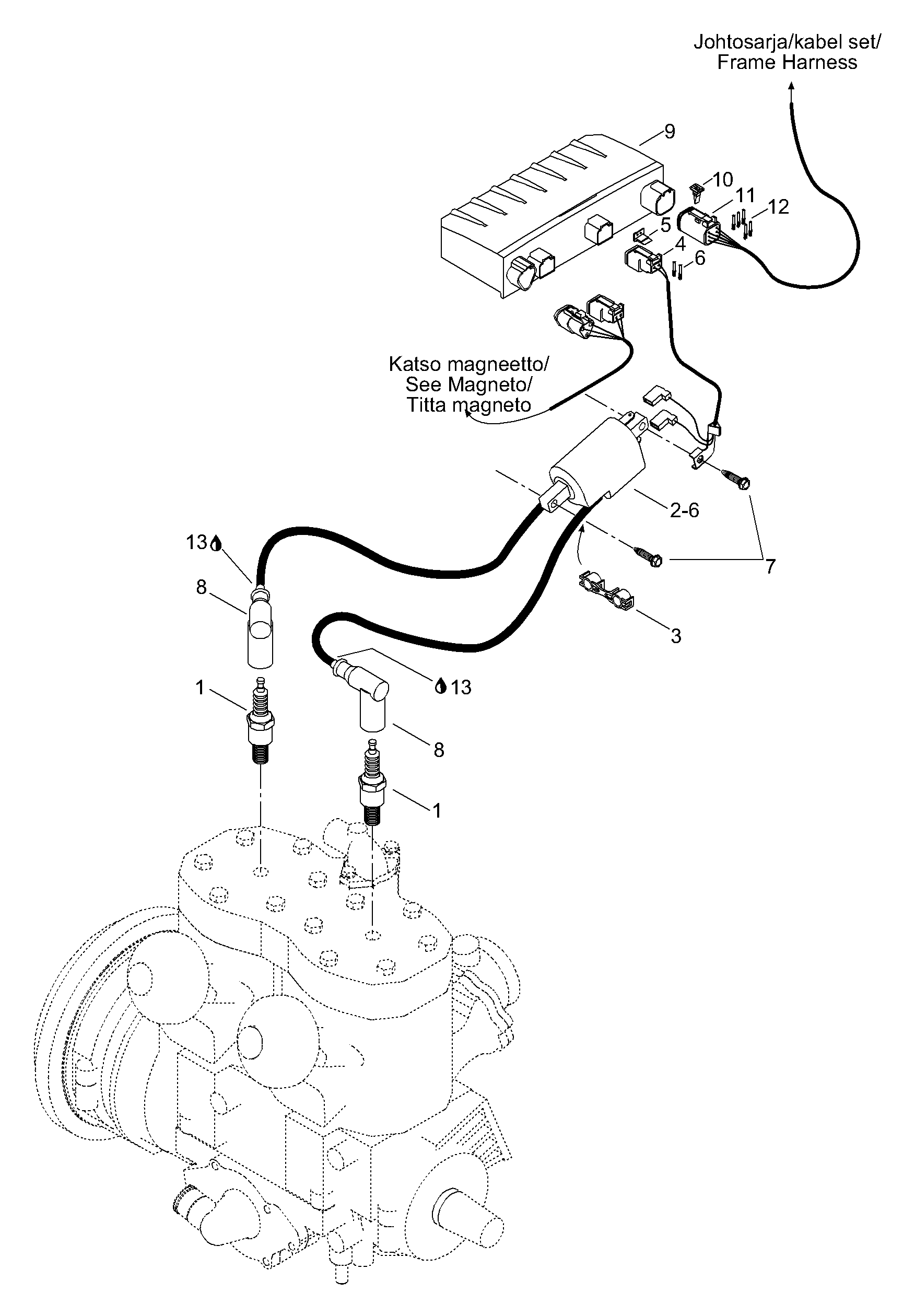

01- DPM для BRP Lynx ST 600 - 2003
-
№АртикулНазвание
-
1512059533 Spark plug BR9ECSSpark plug BR9ECS
-
25246315 Ignition coil assy. Includes items 2 thru 6Ignition coil assy. Includes items 2 thru 6
-
3410914600 Plastic clipPlastic clip
-
442610 Female terminal housingFemale terminal housing
-
542609 Female lock (2 circuits)Female lock (2 circuits)
-
6278000632 Female terminalFemale terminal
-
740377 Screw M6x20Screw M6x20
-
8278000237 Spark plug protectorSpark plug protector
-
95247879 Calibration moduleCalibration module
-
10278000737 Female lock (6 circuits)Female lock (6 circuits)
-
11278000736 Female terminal housingFemale terminal housing
-
12278000632 Female terminalFemale terminal
-
13293550004 140gDielectric grease, 140g140gDielectric grease, 140g
