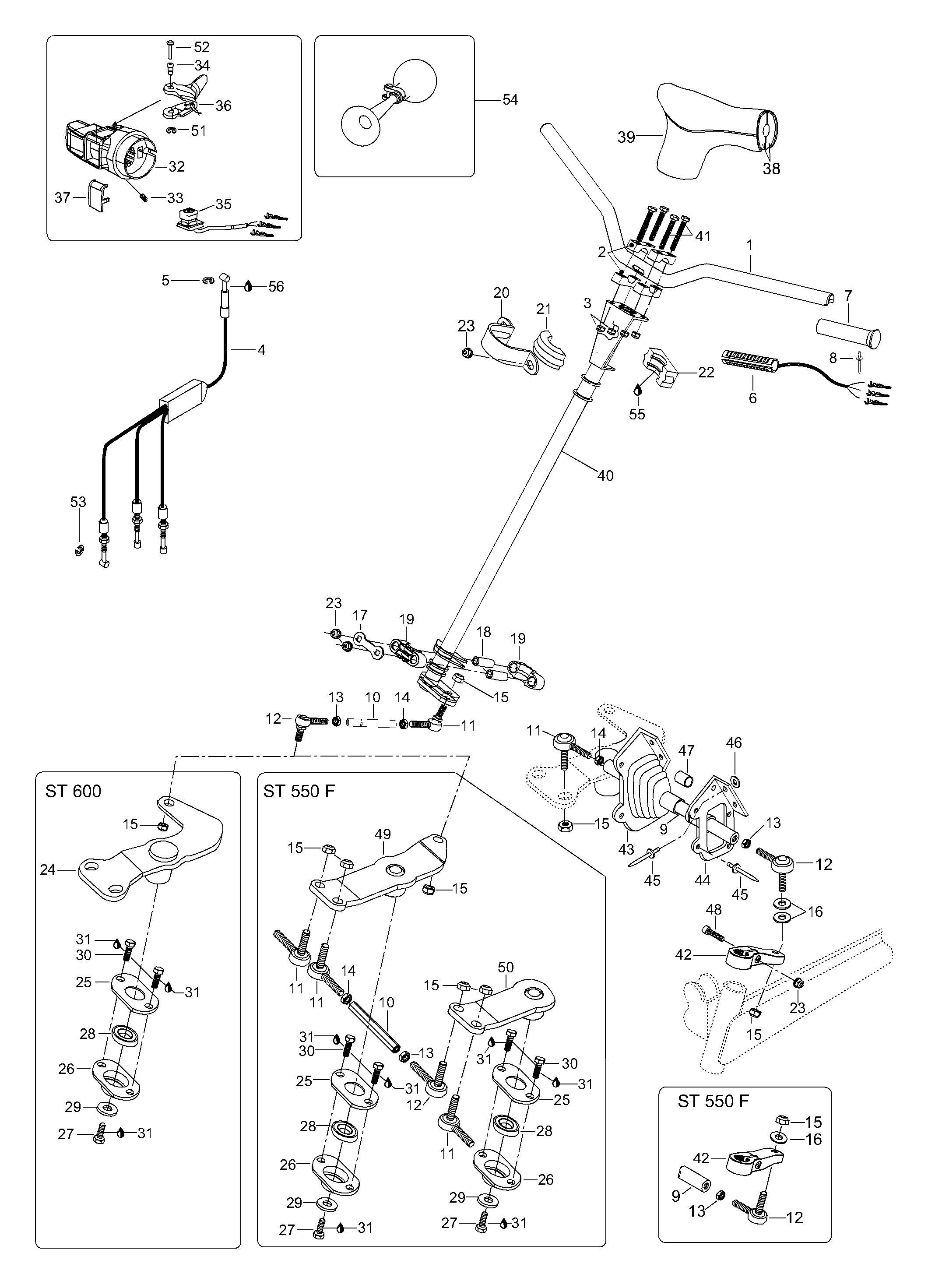

07- Steering для BRP Lynx ST 600 - 2003
-
№АртикулНазвание
-
1605249033 Steering handle barSteering handle bar
-
2548448 FasteningFastening
-
333011 Nut elastic M8Nut elastic M8
-
45246328 Throttle CableThrottle Cable
-
531038 CirclipCirclip
-
6515175664 Heating grip kitHeating grip kit
-
75340464 HandleHandle
-
836005 RivetRivet
-
95445591 Tie rodTie rod
-
105445590 Tie rod, shortTie rod, short
-
11506151495 Ball joint, leftBall joint, left
-
12506151492 Ball joint, rightBall joint, right
-
1333019 Nut M10 R.H.Nut M10 R.H.
-
1433017 Nut M10 L.H.Nut M10 L.H.
-
1533023 Nut elastic M10Nut elastic M10
-
1620105 Washer, hardenedWasher, hardened
-
17506150600 Plate stopperPlate stopper
-
18506150500 Bushing-housingBushing-housing
-
19506150400 Half-housingHalf-housing
-
205343381 Retaining supportRetaining support
-
21572064500 Bearing halfBearing half
-
22572064400 Bearing halfBearing half
-
2333201 Elastic flanged nut M8Elastic flanged nut M8
-
245344929 Lever weldLever weld
-
255345380 PlatePlate
-
265345339 Bearing SupportBearing Support
-
2740337 Screw M8x16Screw M8x16
-
28405404500 BearingBearing
-
295446279 WasherWasher
-
3040336 Screw M8x20Screw M8x20
-
31293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
32512059243 Throttle handle hous.Throttle handle hous.
-
33414440800 Screw M8x10Screw M8x10
-
34732601143 ScrewScrew
-
35515175410 Kill switchKill switch
-
36512059348 Heated handleHeated handle
-
37572100901 CoverCover
-
38605249281 Foam, frontFoam, front
-
38605248760 Foam, rearFoam, rear
-
39605248761 CoverCover
-
40605249034 Steering paleSteering pale
-
4140286 Allen screw M8x45Allen screw M8x45
-
425348261 Steering ArmSteering Arm
-
43570024800 R.H. Cap rod tieR.H. Cap rod tie
-
43570024900 R.H. Cap rod tieR.H. Cap rod tie
-
44517241300 L.H. Plate-capL.H. Plate-cap
-
44517241200 R.H. Plate-capR.H. Plate-cap
-
4536036 RivetRivet
-
4620008 WasherWasher
-
47572036500 BushingBushing
-
4840828 Allen screw M8x35Allen screw M8x35
-
5421003 Condor HornCondor Horn
-
55413711500 GreaseGrease
-
56293550004 Dielectric grease, 150gDielectric grease, 150g
