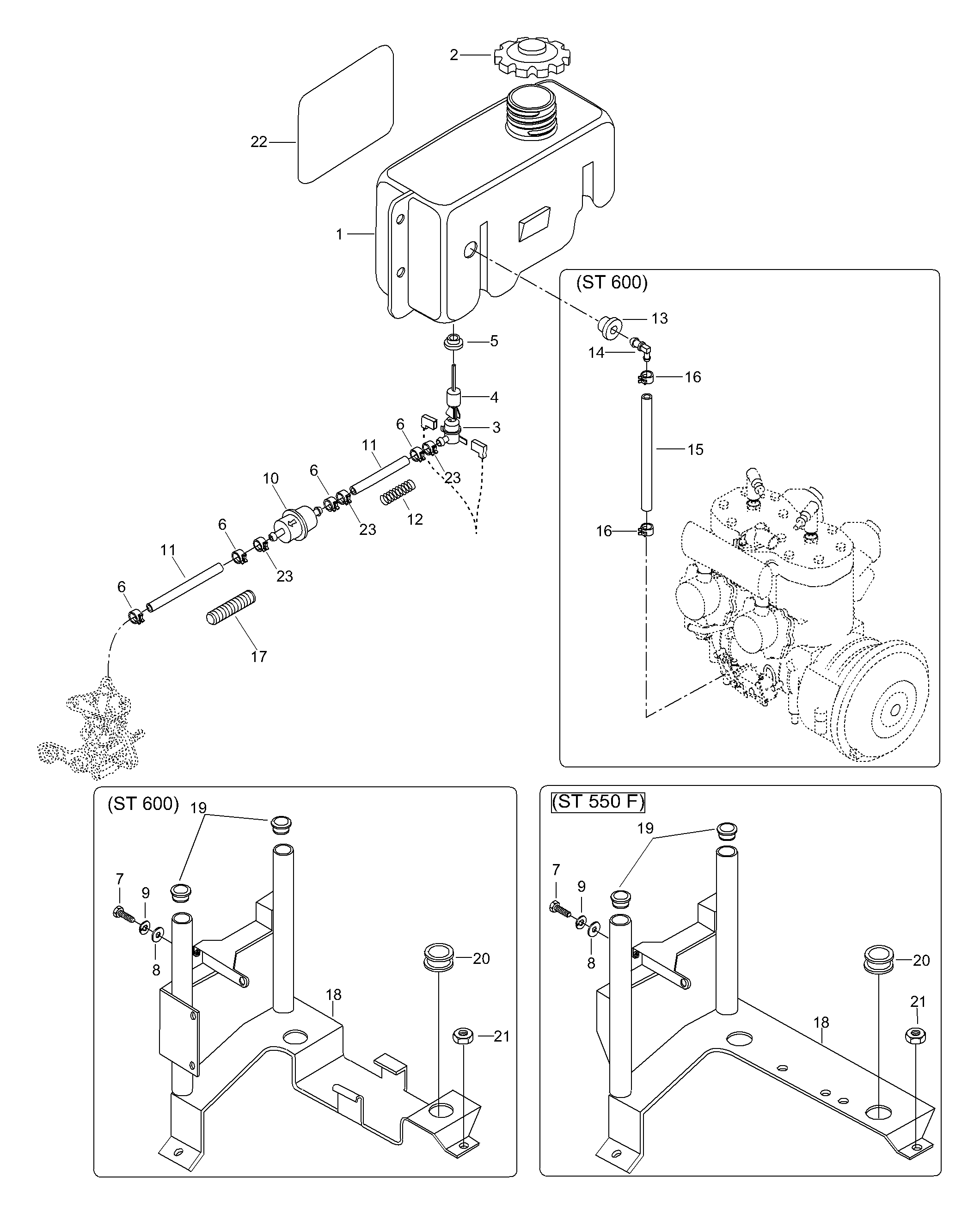

01- Oil Tank для BRP Lynx ST 600 - 2003
-
№АртикулНазвание
-
15146370 Oil tankOil tank
-
2519000044 Oil tank capOil tank cap
-
3414681800 Oil lever sensorOil lever sensor
-
4414681900 FloatFloat
-
5570023000 GrommetGrommet
-
6414420700 ClampClamp
-
740322 Screw M6x16Screw M6x16
-
820009 WasherWasher
-
920052 Lock washerLock washer
-
10414536500 Oil filterOil filter
-
1139046 Oil lineOil line
-
12250001 SpringSpring
-
13570135100 GrommetGrommet
-
14414580700 Elbow fitting 90 degr.Elbow fitting 90 degr.
-
1539004 Hose 5/8Hose 5/8
-
16414554800 ClampClamp
-
1728015 TubeTube
-
185246593 SupportSupport
-
1928136 PlugPlug
-
205446766 GrommetGrommet
-
2133200 Elastic flanged nut M6Elastic flanged nut M6
-
225443578 Al-protectorAl-protector
