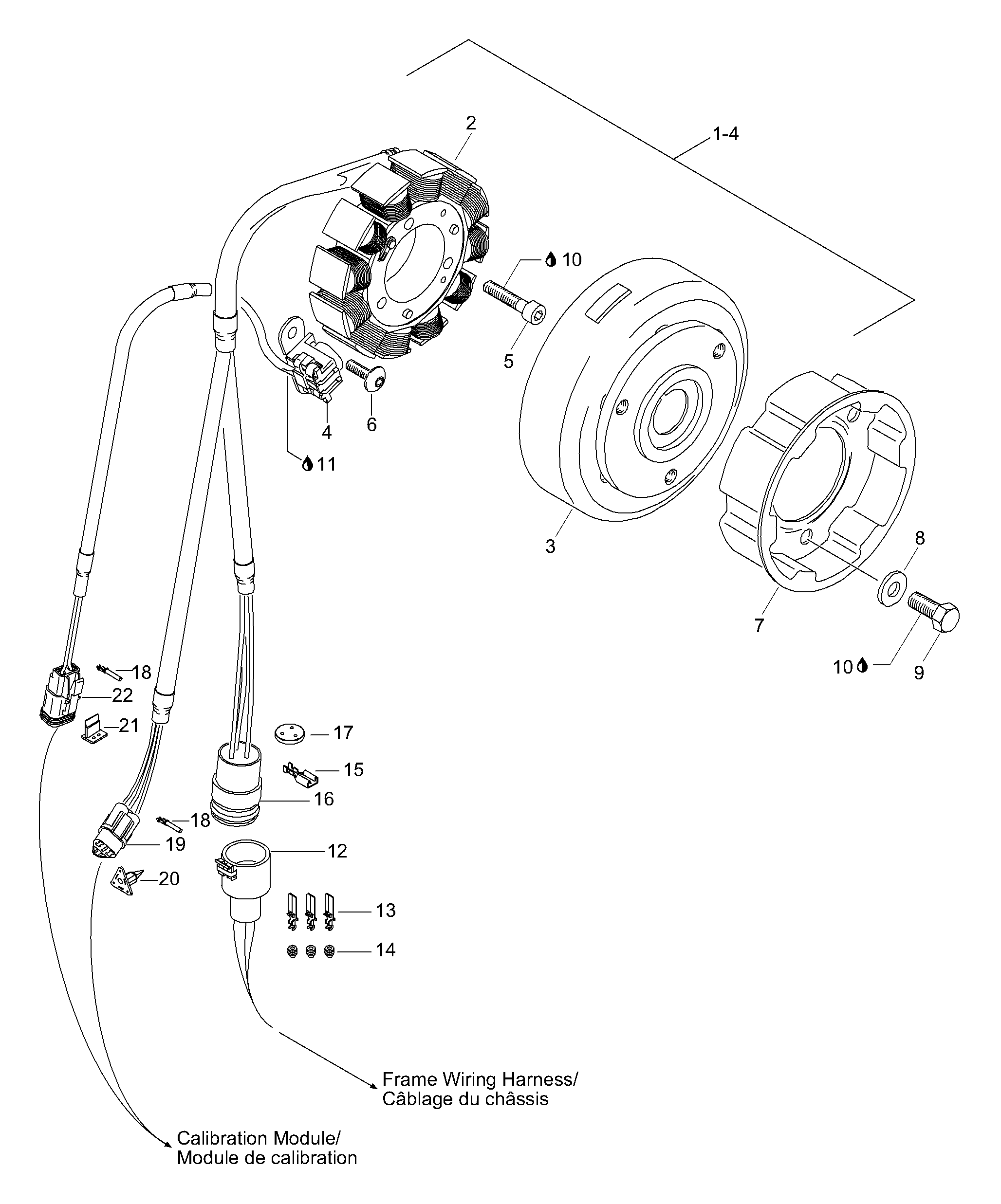

03- Magneto для BRP Lynx ST 600 - 2003
-
№АртикулНазвание
-
1420888195 Magneto 12V/290W. Includes items 1 thru 4Magneto 12V/290W. Includes items 1 thru 4
-
2420888619 Stator assyStator assy
-
3420889344 Magneto flywheelMagneto flywheel
-
4420966836 Pick up assyPick up assy
-
5420840880 Allen screw M6x30Allen screw M6x30
-
6420640321 Taptite screw M5x16Taptite screw M5x16
-
7420852590 Starter cupStarter cup
-
8420827405 Lock washerLock washer
-
9420841520 Allenscrew M8x12Allenscrew M8x12
-
10420899785 Loctite 221/viol.Loctite 221/viol.
-
11420897651 Loctite 243, blue, 10ccLoctite 243, blue, 10cc
