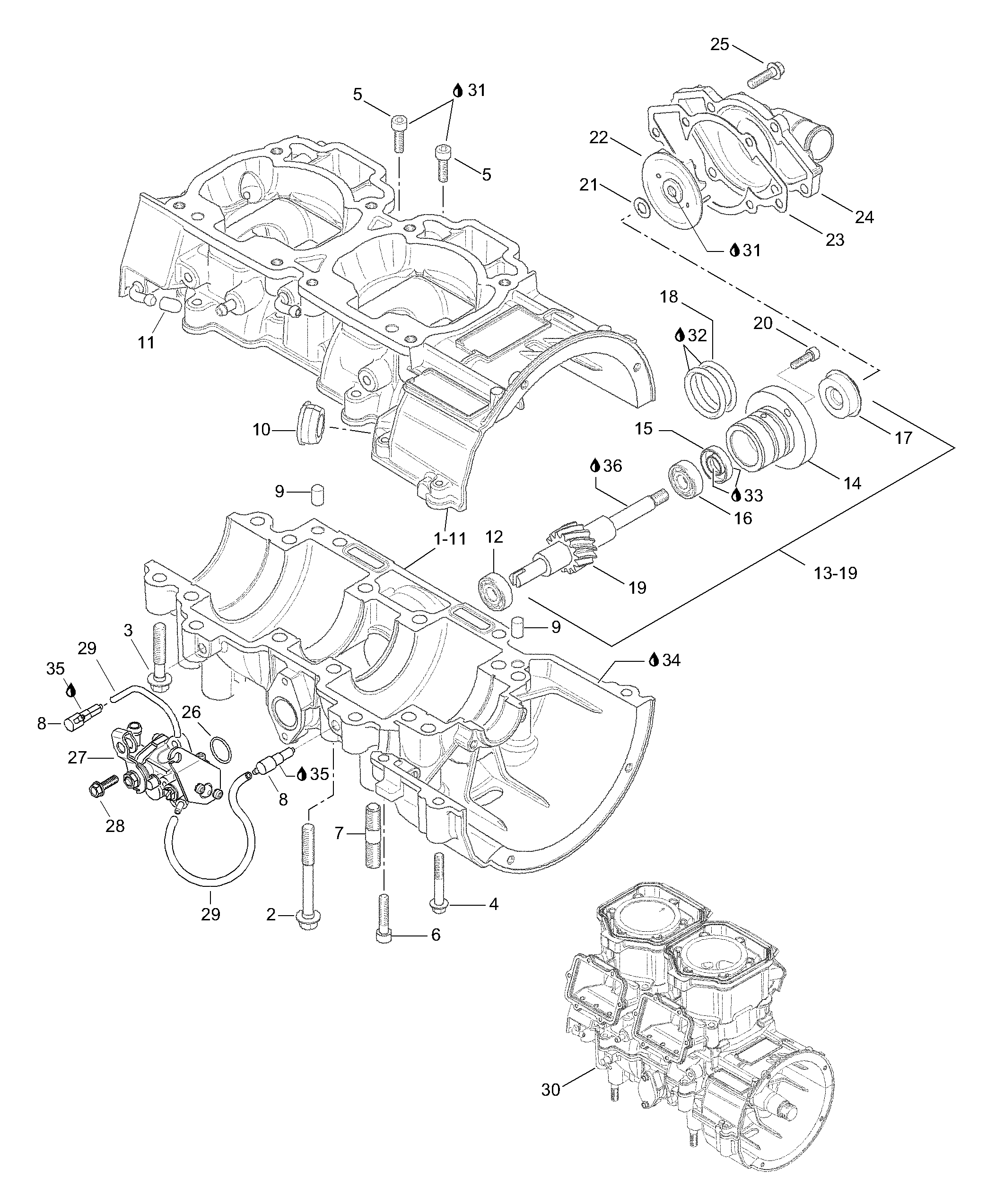

05- Crankcase для BRP Lynx ST 600 - 2003
-
№АртикулНазвание
-
1420888766 Crankcase assy. Includes items 1 thru 11Crankcase assy. Includes items 1 thru 11
-
2420640836 Screw M8x75Screw M8x75
-
3420640431 Screw M8x45Screw M8x45
-
4420640311 Screw M6x45Screw M6x45
-
5420840401 Allen screw M6x22Allen screw M6x22
-
6420840880 Allen screw M6x30Allen screw M6x30
-
7420940704 Stud M10Stud M10
-
8420956510 Checkvalve assyCheckvalve assy
-
9420632010 PinPin
-
10420860965 Cable grommetCable grommet
-
11420960770 Closure capClosure cap
-
12420232100 Ball bearingBall bearing
-
13420837421 Waterpump/oilpump shaft. Includes items 13 thru 19Waterpump/oilpump shaft. Includes items 13 thru 19
-
15420230195 Oil sealOil seal
-
16420232100 Ball bearingBall bearing
-
17420650370 Rotary sealRotary seal
-
18420950890 O-ringO-ring
-
20420840511 Allen screw M5x16Allen screw M5x16
-
21420227945 Thrust washerThrust washer
-
22420222505 ImpellerImpeller
-
23420931810 GasketGasket
-
24420922630 Pump housingPump housing
-
25420240031 Screw M6x25Screw M6x25
-
26420230400 O-ringO-ring
-
27420888260 Oil pumpOil pump
-
28420941925 Taptite screw M5x16Taptite screw M5x16
-
29414413800 Oil lineOil line
-
30300059306 Short block engineShort block engine
-
31293800060 Loctite 243, 10mlLoctite 243, 10ml
-
33420899271 Klueber petamo, 250gr.Klueber petamo, 250gr.
-
34420297906 Sealing compoundSealing compound
-
35413711400 Loctite 648Loctite 648
-
36320007 Transmission oilTransmission oil
