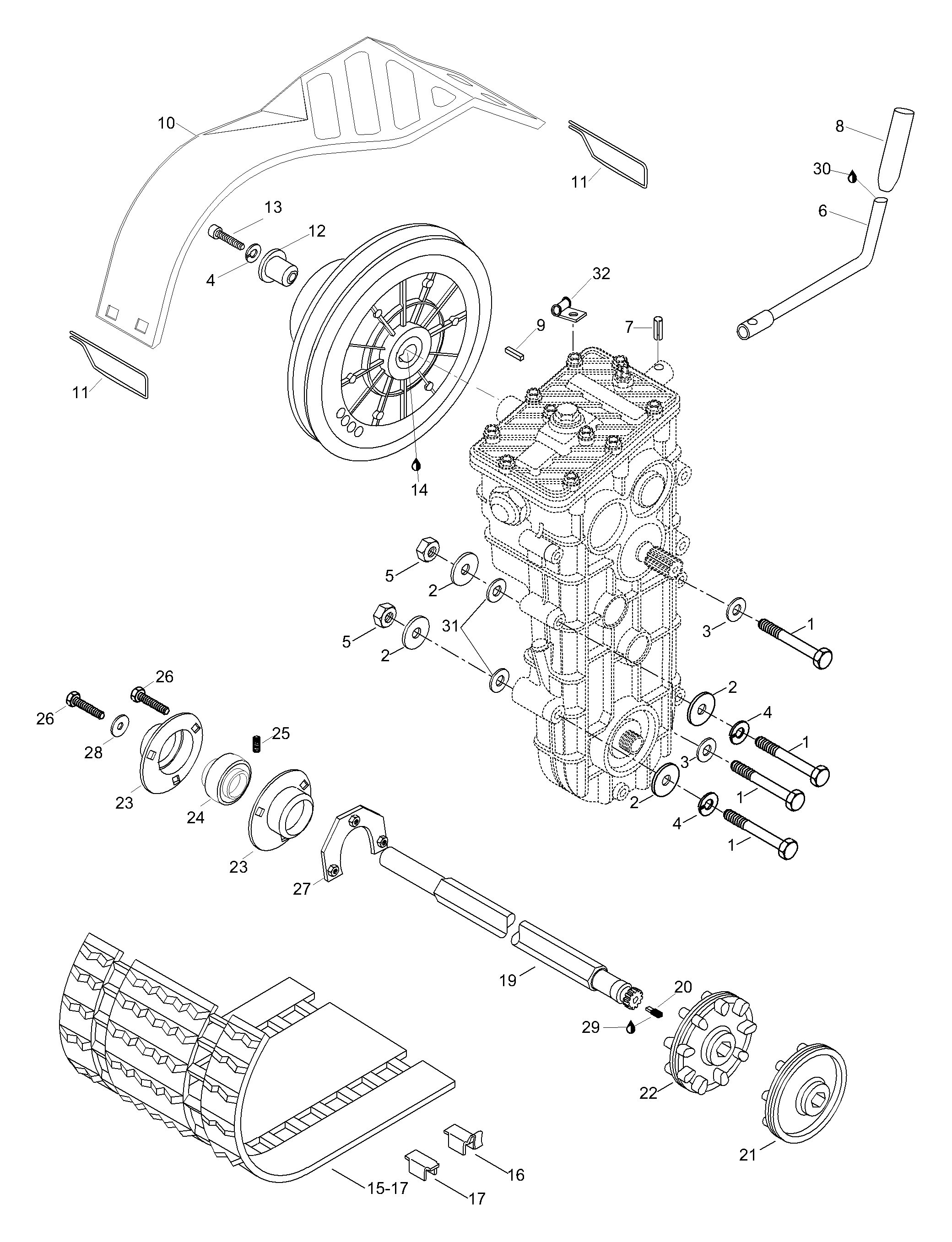

05- Drive Axle для BRP Lynx ST 600 - 2003
-
№АртикулНазвание
-
140012 Screw M8x80Screw M8x80
-
220010 WasherWasher
-
320004 WasherWasher
-
420014 Lock washerLock washer
-
533011 Nut elastic M8Nut elastic M8
-
65340902 Shift handleShift handle
-
741007 Spring keySpring key
-
828247 ButtonButton
-
9418763 KeyKey
-
105146001 Belt guardBelt guard
-
115442726 PinPin
-
125443201 SpacerSpacer
-
1340286 Allen screw M8x45Allen screw M8x45
-
14293800070 Loctite 767, 8 ozLoctite 767, 8 oz
-
1513070 Track (31.8). Includes items 15 thru 17Track (31.8). Includes items 15 thru 17
-
165318323 Cleat guideCleat guide
-
175318322 Slide guideSlide guide
-
185345116 Drive axle assy. Includes items 18 thru 22Drive axle assy. Includes items 18 thru 22
-
195345117 Drive axleDrive axle
-
20542013 Speedometer drive insertSpeedometer drive insert
-
21415067400 Sprocket 1:2Sprocket 1:2
-
22414931800 Sprocket 1:1Sprocket 1:1
-
23534430 Bearing housing setBearing housing set
-
2431UC205 BearingBearing
-
2510531 Lock screwLock screw
-
2640336 Screw M8x20Screw M8x20
-
27546421 Thrust ringThrust ring
-
28546336 WasherWasher
-
29293800005 Loctite 271, 10mlLoctite 271, 10ml
-
30293800060 Loctite 243Loctite 243
-
325443134 ClampClamp
