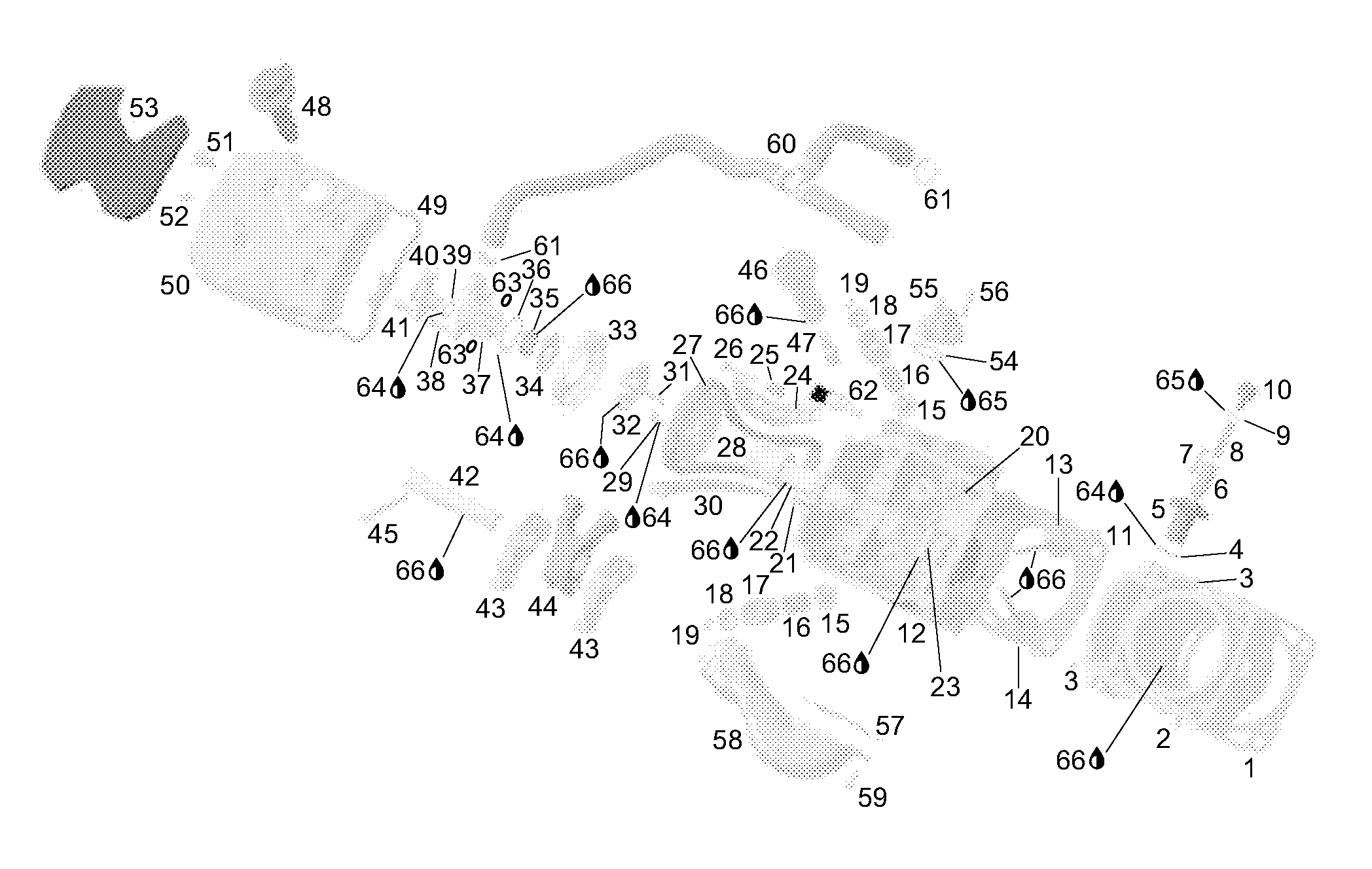

01- Cylinder для BRP Lynx Ranger V-1000 - 2004
-
№АртикулНазвание
-
1420630080 GasketGasket
-
2420923947 Cylinder assy. Includes items 2 thru 3Cylinder assy. Includes items 2 thru 3
-
3420929650 Drive pin 5 x 10Drive pin 5 x 10
-
4420430370 O-ringO-ring
-
5420236510 Chain tensioner housingChain tensioner housing
-
6420236520 Chain tensioner plungerChain tensioner plunger
-
7420440232 Screw M6 x 25Screw M6 x 25
-
8420238120 SpringSpring
-
9420250890 O-ringO-ring
-
10420641150 Plug screw M18 x 1Plug screw M18 x 1
-
11420950660 GasketGasket
-
12420613475 Cylinder head assyCylinder head assy
-
13420254027 Exhaust valve 31 mmExhaust valve 31 mm
-
14420254290 Intake valve 38 mmIntake valve 38 mm
-
15420630200 Valve stem sealValve stem seal
-
16420838280 Valve spring insideValve spring inside
-
17420238180 Valve springValve spring
-
18420254280 Valve spring retainerValve spring retainer
-
19420253645 Valve cotterValve cotter
-
20420641020 Screw M11 x 215Screw M11 x 215
-
21420440612 Screw M6 x 105Screw M6 x 105
-
22420837575 Camshaft frontCamshaft front
-
23420851692 Camshaft guideCamshaft guide
-
24420236540 Chain tension guideChain tension guide
-
25420247100 Distance sleeveDistance sleeve
-
26420440272 Screw M6 x 35Screw M6 x 35
-
27420297957 Camshaft chainCamshaft chain
-
28420254307 Camshaft sprocket (38 teetCamshaft sprocket (38 teet
-
29420841339 Screw M6 x 12Screw M6 x 12
-
30420236500 Chain guideChain guide
-
31420220790 Deko shaftDeko shaft
-
32420231064 Centrifugal weight assyCentrifugal weight assy
-
33420660034 CoverCover
-
34420627494 Thrust washerThrust washer
-
35420630125 V-ringV-ring
-
36420950870 O-ringO-ring
-
37420610272 Camshaft coverCamshaft cover
-
38420440162 Screw M6 x 16Screw M6 x 16
-
39420430220 O-ringO-ring
-
40420660275 Connecting coverConnecting cover
-
41420440162 Screw M6 x 16Screw M6 x 16
-
42420854599 Rockerarmshaft assyRockerarmshaft assy
-
43420254326 Rockerarm ass’y (exhaust)Rockerarm ass’y (exhaust)
-
44420254315 Rockerarm ass’y (inlet)Rockerarm ass’y (inlet)
-
45420641080 Screw M8 x 72Screw M8 x 72
-
46420851750 Spark plug pipeSpark plug pipe
-
47707000246 Spark plug DCP-R8ESpark plug DCP-R8E
-
48420664020 Stick coilStick coil
-
49420630071 Profile sealing ringProfile sealing ring
-
50420610185 Valve coverValve cover
-
51420440307 Screw M6 x 30Screw M6 x 30
-
52420641488 Screw M6 x 10Screw M6 x 10
-
53420660201 Valve coverValve cover
-
54420950890 O-ringO-ring
-
55420811700 Connecting coverConnecting cover
-
56420440232 Screw M6 x 25Screw M6 x 25
-
57420950680 GasketGasket
-
58420973781 Exhaust manifold ass’yExhaust manifold ass’y
-
59420440162 Screw M6 x 16Screw M6 x 16
-
60420660713 Molded hose ass’yMolded hose ass’y
-
61420853153 ClampClamp
-
62420222425 Temperature sensorTemperature sensor
-
63420230415 Gasket ringGasket ring
-
64293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
65293550014 Grease, super lubeGrease, super lube
-
66293600054 Engine oil 4 strokes, 0 W 4Engine oil 4 strokes, 0 W 4
