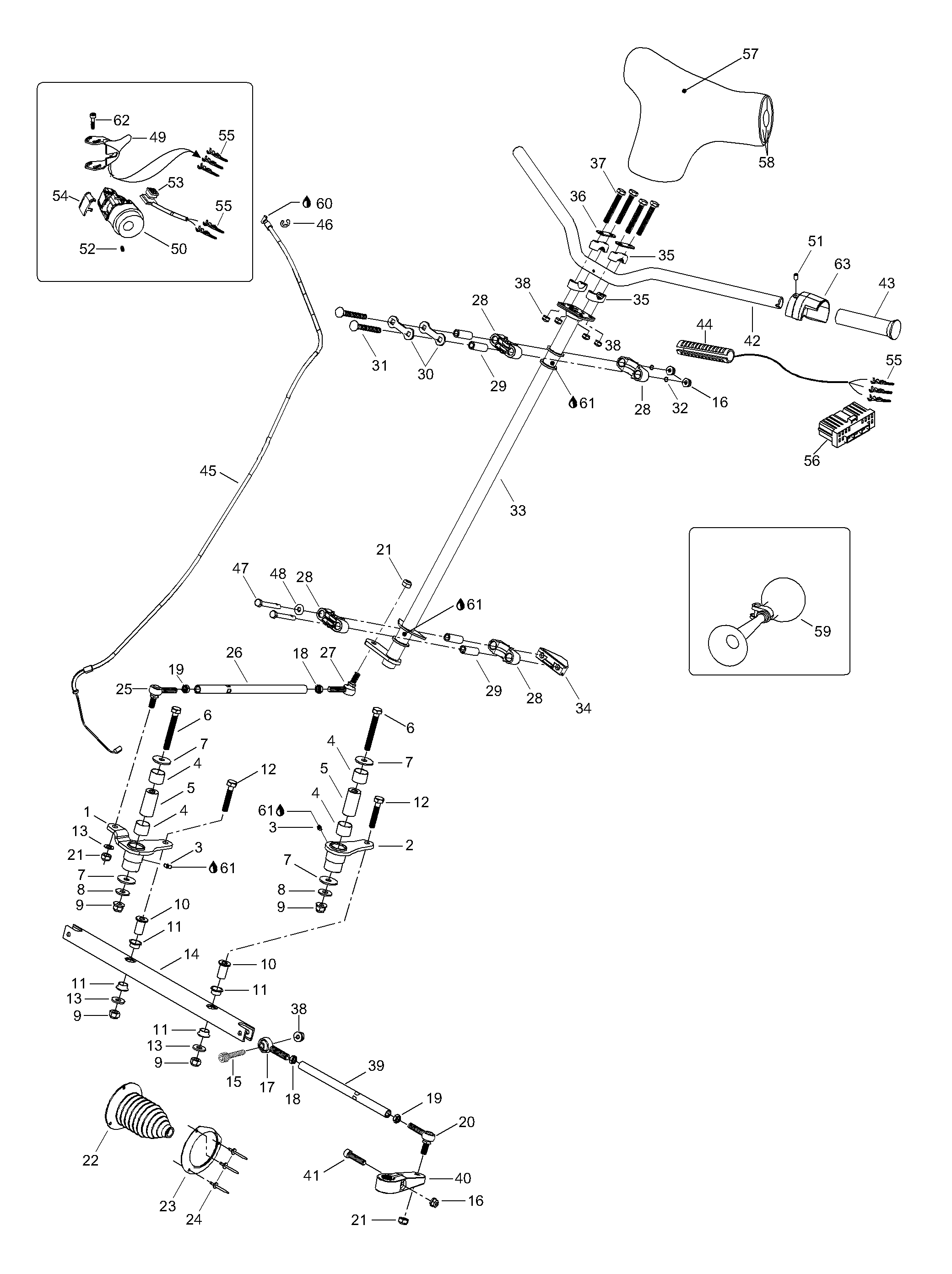

07- Steering для BRP Lynx Ranger V-1000 - 2004
-
№АртикулНазвание
-
1506151360 R.H. swivel armR.H. swivel arm
-
2506151623 L.H. swivel armL.H. swivel arm
-
334011 Grease FittingGrease Fitting
-
4506149900 Swivel bushingSwivel bushing
-
5506150100 Swivel-pivotSwivel-pivot
-
640229 Screw M10 x 80Screw M10 x 80
-
720080 WasherWasher
-
820101 Washer, hardenedWasher, hardened
-
933012 Nut elastic M10Nut elastic M10
-
10506147300 CushionCushion
-
11506150200 Swivel-bushingSwivel-bushing
-
1240018 Screw M10 x 55Screw M10 x 55
-
1320028 WasherWasher
-
14605249324 Bar-swivelBar-swivel
-
1540395 Allen screw M8 x 35Allen screw M8 x 35
-
1633201 Elastic flanged nut M8Elastic flanged nut M8
-
17506151496 Joint ball L.H.Joint ball L.H.
-
18732610011 L.H. jam nut M10L.H. jam nut M10
-
19732610010 R.H. jam nut M10R.H. jam nut M10
-
20506151491 Joint ballJoint ball
-
2133023 Nut elastic M10Nut elastic M10
-
22570070500 Tie-rod capTie-rod cap
-
235347006 Retainer ringRetainer ring
-
2436009 RivetRivet
-
25506151492 Joint ball, R.H.Joint ball, R.H.
-
26506151375 Inside tie-rodInside tie-rod
-
27506151495 Joint ball L.H.Joint ball L.H.
-
28506150400 Half housingHalf housing
-
29506150500 Housing bushingHousing bushing
-
30506150600 Stopper plateStopper plate
-
31207787044 Carriage bolt M8 x 70Carriage bolt M8 x 70
-
32506151140 O-ringO-ring
-
33506151363 Main tubeMain tube
-
34506151582 SupportSupport
-
35506151622 Steering supportSteering support
-
36506151196 ReinforcementReinforcement
-
3740010 Screw M8 x 55Screw M8 x 55
-
3833011 Nut elastic M8Nut elastic M8
-
395346200 Tie RodTie Rod
-
40506145800 R.H. steering armR.H. steering arm
-
40506145900 L.H. steering armL.H. steering arm
-
4140843 Allen screw M8 x 35Allen screw M8 x 35
-
42605249302 Handle barHandle bar
-
435340464 GripGrip
-
44515175657 HeaterHeater
-
45512059349 Throttle cableThrottle cable
-
4631038 CirclipCirclip
-
47250000105 Screw M8 x 65Screw M8 x 65
-
48224081201 WasherWasher
-
49512059483 Handle assyHandle assy
-
50512059763 Throttle handle housingThrottle handle housing
-
5140390 Screw M8 x 20Screw M8 x 20
-
52414440800 ScrewScrew
-
53512059751 Switch killSwitch kill
-
54572100901 Switch coverSwitch cover
-
5542603 Male terminalMale terminal
-
57605349234 CoverCover
-
58605349232 Steering pad foam, frontSteering pad foam, front
-
58605349233 Steering pad foam, rearSteering pad foam, rear
-
5921003 HornHorn
-
60293550004 Dielectric greaseDielectric grease
-
61413711500 Synthetic greaseSynthetic grease
-
62732601143 ScrewScrew
-
63506151566 AdaptorAdaptor
