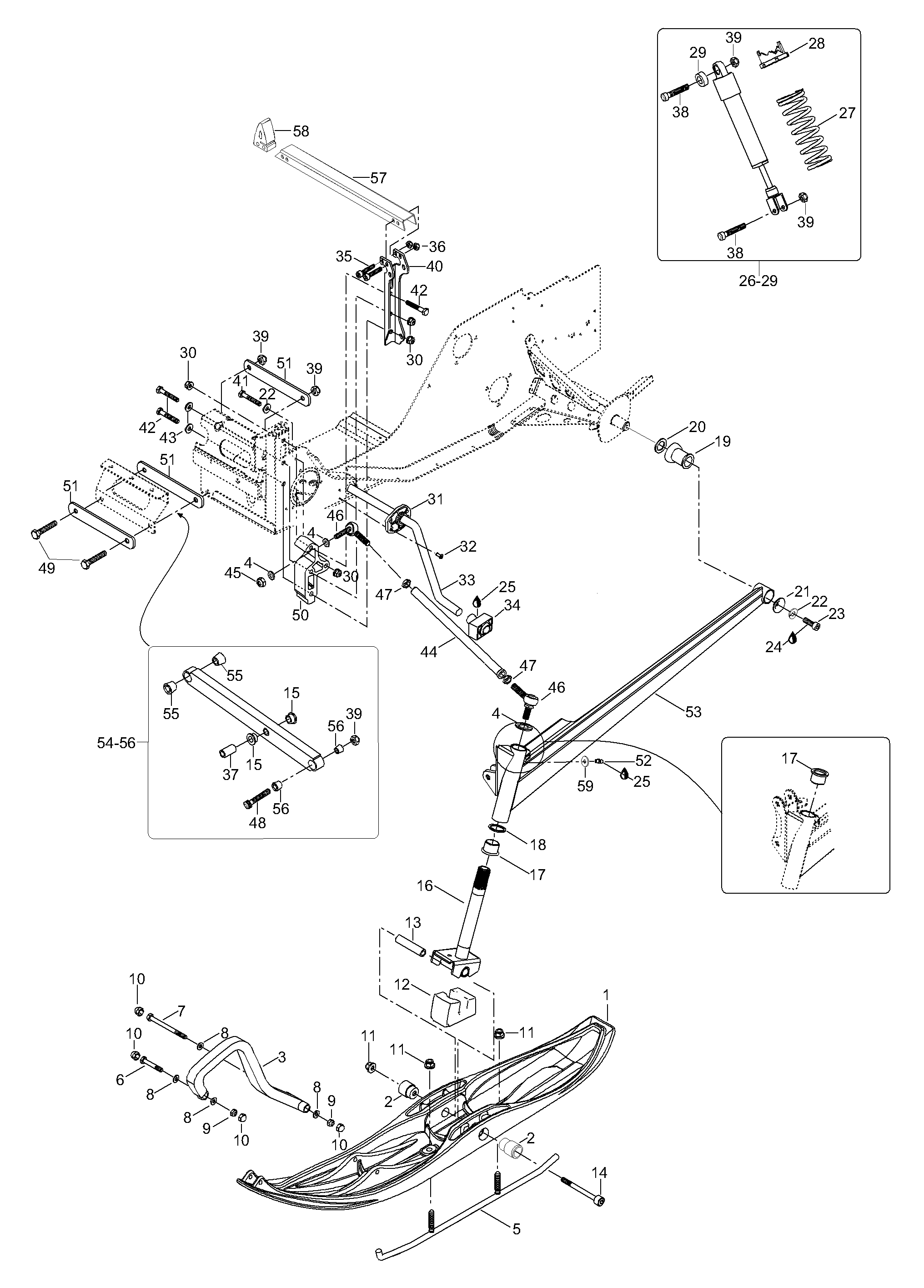

08- Front Suspension для BRP Lynx Ranger V-1000 - 2004
-
№АртикулНазвание
-
1605148440 Plastic ski. Includes items 1 thru 3Plastic ski. Includes items 1 thru 3
-
2605348392 SleeveSleeve
-
3505070963 Plastic handlePlastic handle
-
420074 Lock washerLock washer
-
5605349310 Runner carbideRunner carbide
-
640009 Screw M8 x 50Screw M8 x 50
-
740264 Screw M8 x 90Screw M8 x 90
-
820004 WasherWasher
-
933011 Elastic flanged nut M8Elastic flanged nut M8
-
1028056 CapCap
-
1133074 Elastic flange nut M10Elastic flange nut M10
-
12605348458 Stopper-skiStopper-ski
-
13506133300 SpacerSpacer
-
1440225 Allens crew M10 x 140Allens crew M10 x 140
-
1531088 Slede bearingSlede bearing
-
16605248927 Ski legSki leg
-
17505070003 BushingBushing
-
18505070004 WasherWasher
-
19570062200 DamperDamper
-
20503146700 WasherWasher
-
21506079600 CupCup
-
2220014 Spring washerSpring washer
-
2340289 Allen screw M8 x 25Allen screw M8 x 25
-
24293800060 Loctite 243, 10mlLoctite 243, 10ml
-
25413711500 Synthetic greaseSynthetic grease
-
2623147 Shock assy. Includes items 26 thru 29Shock assy. Includes items 26 thru 29
-
28503183700 CamCam
-
29230055 Rubber bushingRubber bushing
-
3033201 Elastic flanged nut M8Elastic flanged nut M8
-
31505070191 SleeveSleeve
-
3236087 RivetRivet
-
335246797 Sway barSway bar
-
34505070117 Block-joint ballBlock-joint ball
-
3540345 Allen screw M6 x 40Allen screw M6 x 40
-
3633010 Nut elastic M6Nut elastic M6
-
375441433 BushingBushing
-
3840837 Allen screw M10 x 55Allen screw M10 x 55
-
3933012 Nut elastic M10Nut elastic M10
-
405247702 Shock bracketShock bracket
-
4140010 Screw M8 x 55Screw M8 x 55
-
4240264 Screw M8 x 90Screw M8 x 90
-
4320104 Washer, hardenedWasher, hardened
-
445346122 Upper armUpper arm
-
4533087 Jam nut elastic M12Jam nut elastic M12
-
4631092 Ball jointBall joint
-
4733048 Jam nut M12Jam nut M12
-
4840136 Allen screw M10 x 50Allen screw M10 x 50
-
4940814 Screw M10 x 110Screw M10 x 110
-
505447566 R.H. Upper arm bracketR.H. Upper arm bracket
-
505447559 L.H. Upper arm bracketL.H. Upper arm bracket
-
515346112 Support plateSupport plate
-
5234011 Grease fittingGrease fitting
-
53605250362 R.H. Swing arm, SeashoreR.H. Swing arm, Seashore
-
53605250361 L.H. Swing arm, SeashoreL.H. Swing arm, Seashore
-
54605250363 Lower arm, Seashore. Includes items 54 thru 56Lower arm, Seashore. Includes items 54 thru 56
-
555447769 Inner sleeveInner sleeve
-
565447770 Outer sleeveOuter sleeve
-
57605349343 BracketBracket
-
585348099 RubberRubber
-
5920007 WasherWasher
