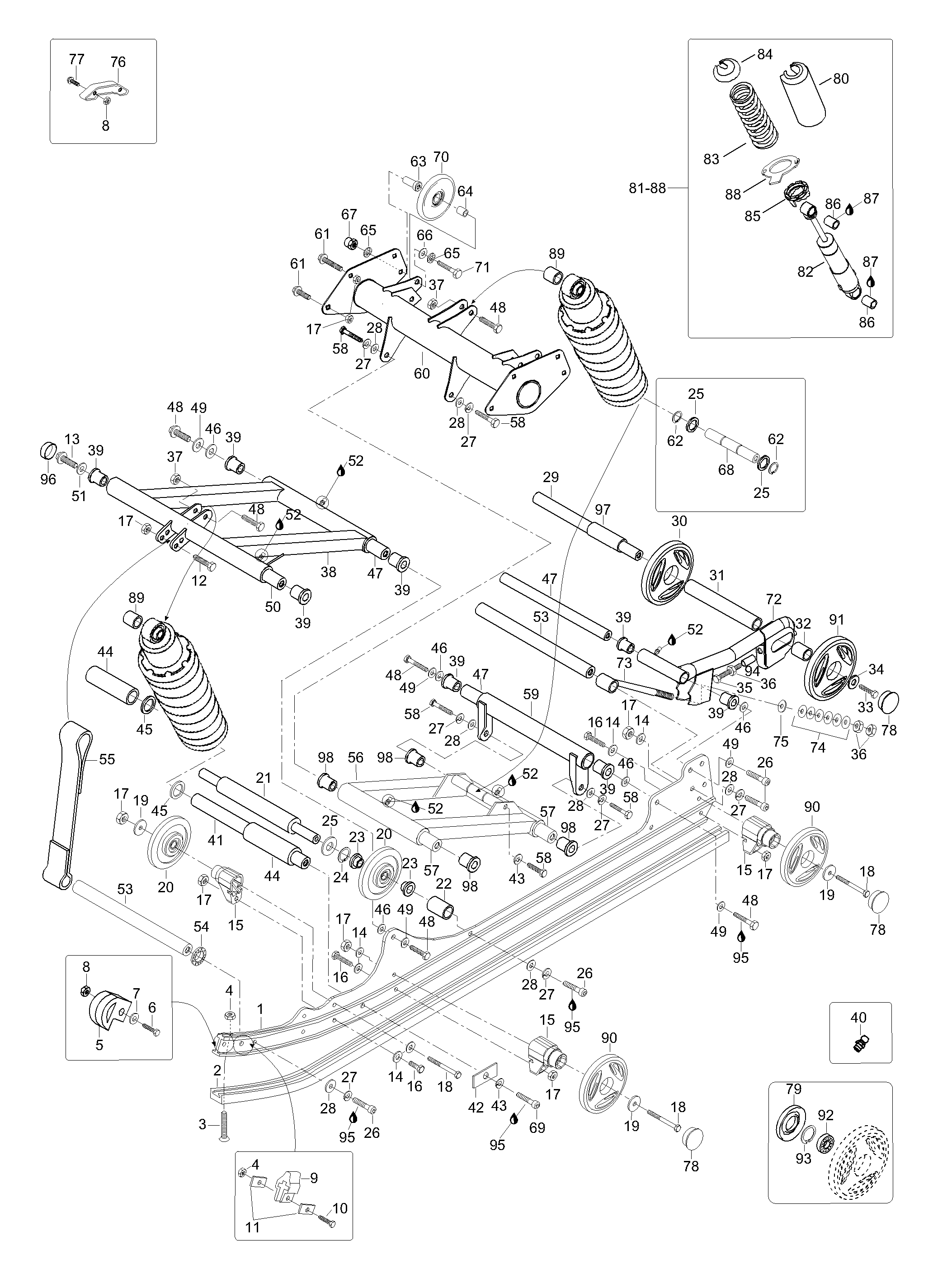

08- Rear Suspension для BRP Lynx Ranger V-1000 - 2004
-
№АртикулНазвание
-
15247224 RunnerRunner
-
25347724 Shoe runnerShoe runner
-
340059 Allen screw M6 x 60Allen screw M6 x 60
-
433010 Nut elastic M6Nut elastic M6
-
5605348954 Runner protectorRunner protector
-
640031 Screw M6 x 25Screw M6 x 25
-
720003 WasherWasher
-
833200 Elastic flanged nut M6Elastic flanged nut M6
-
95442328 Rubber stopperRubber stopper
-
1040032 Screw M6 x 30Screw M6 x 30
-
11548470 PlatePlate
-
1240008 Screw M8 x 45Screw M8 x 45
-
1340243 Screw M12 x 60Screw M12 x 60
-
1420104 Washer, hardenedWasher, hardened
-
15605450182 SupportSupport
-
1640037 Screw M8 x 25Screw M8 x 25
-
1733011 Nut elastic M8Nut elastic M8
-
1840089 Screw M8 x 75Screw M8 x 75
-
19503183100 Washer, hardenedWasher, hardened
-
20503190216 Idler wheel 135/blackIdler wheel 135/black
-
215347949 AxleAxle
-
225447951 SleeveSleeve
-
23503189534 InsertInsert
-
2431007 CirclipCirclip
-
2531091 ShimShim
-
2640134 Allen screw M10 x 45Allen screw M10 x 45
-
2720047 Spring washerSpring washer
-
2820105 Washer, hardenedWasher, hardened
-
295445986 AxleAxle
-
30503189478 Idler wheel 165Idler wheel 165
-
315444096 SleeveSleeve
-
325444098 SleeveSleeve
-
3340050 Locking screw M10 x 35Locking screw M10 x 35
-
34503183300 Washer, hardenedWasher, hardened
-
3540239 Screw M10 x 100Screw M10 x 100
-
3633004 Nut M10Nut M10
-
3733012 Elastic nut M10Elastic nut M10
-
385145588 Front arm weldedFront arm welded
-
3931083 SleeveSleeve
-
4034011 Grease nippleGrease nipple
-
415347633 AxleAxle
-
425447940 Support plateSupport plate
-
4320068 Lock washerLock washer
-
445346649 SleeveSleeve
-
4531013 ShimShim
-
4620116 WasherWasher
-
475346900 ShaftShaft
-
4840016 Screw M10 x 45Screw M10 x 45
-
49512056700 Lock washerLock washer
-
505346135 ShaftShaft
-
5120090 Spring washerSpring washer
-
52413711500 Synthetic greaseSynthetic grease
-
535343471 ShaftShaft
-
544181158 Snapp ringSnapp ring
-
555447919 Stopper strapStopper strap
-
56605349313 Rear arm weldedRear arm welded
-
575346865 ShaftShaft
-
5840014 Screw M10 x 40Screw M10 x 40
-
595345535 Rear arm weldedRear arm welded
-
60605249274 Upper armUpper arm
-
6140058 Locking screw M8 x 20Locking screw M8 x 20
-
6231007 CirclipCirclip
-
635447945 SleeveSleeve
-
645447946 SleeveSleeve
-
6520072 Locking washerLocking washer
-
6620077 WasherWasher
-
6733044 Nut M8Nut M8
-
68605449317 ShaftShaft
-
6940536 Allen screw M10 x 45Allen screw M10 x 45
-
7046027 Idler wheelIdler wheel
-
7140264 Screw M8 x 90Screw M8 x 90
-
725247806 R.H. ExtensionR.H. Extension
-
725247808 L.H. ExtensionL.H. Extension
-
735447373 Eye bolt adjusterEye bolt adjuster
-
7425004 PlatePlate
-
7520011 WasherWasher
-
765343191 ProtectorProtector
-
7740064 Locking screw M6 x 40Locking screw M6 x 40
-
78570063600 ProtectorProtector
-
79572089000 Labyrinth sealLabyrinth seal
-
805346754 Shock protectorShock protector
-
81605348905 Shock assy, front. Includes items 81 thru 87Shock assy, front. Includes items 81 thru 87
-
81605348906 Shock assy, rear. Includes items 81 thru 88Shock assy, rear. Includes items 81 thru 88
-
8223159 Shock assy, frontShock assy, front
-
8223160 Shock assy, rearShock assy, rear
-
8325058 Spring, centerSpring, center
-
8325060 Spring, rearSpring, rear
-
84230076 Spring seatSpring seat
-
85230078 Adjusting camAdjusting cam
-
8631094 Slide bearingSlide bearing
-
87320006 Loctite 641Loctite 641
-
88605348748 Cam adjusterCam adjuster
-
895446652 SleeveSleeve
-
90503190214 Idler wheel 135/Full MoonIdler wheel 135/Full Moon
-
91503189374 Idler wheel 165/Full MoonIdler wheel 165/Full Moon
-
92405404500 Ball bearingBall bearing
-
93371901700 CirclipCirclip
-
94546668 SleeveSleeve
-
95293800060 Loctite 243, 10Loctite 243, 10
-
965448025 CapCap
-
975444097 SleeveSleeve
-
9831068 Slide bearingSlide bearing
