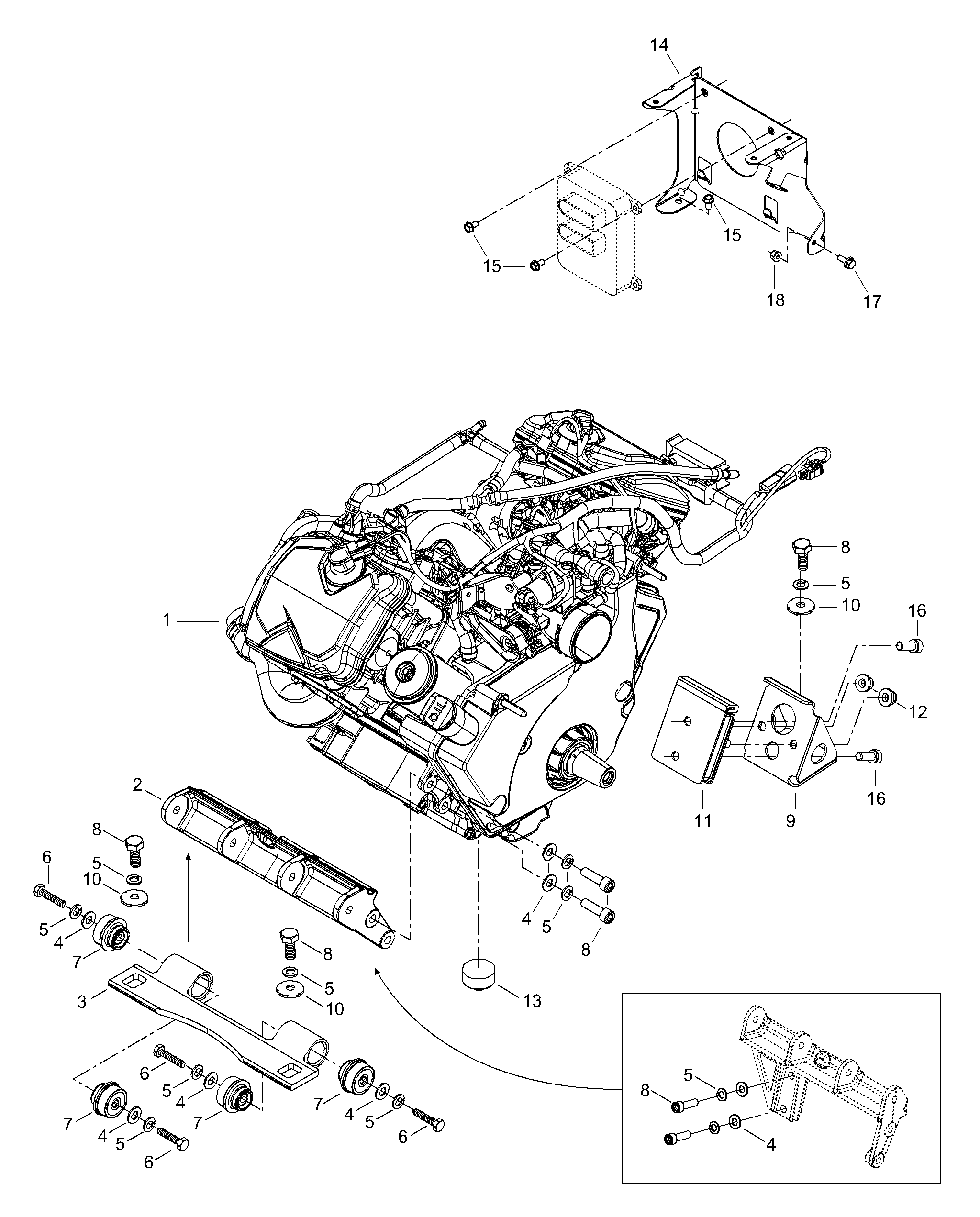

01- Engine Mount Plate для BRP Lynx Ranger V-1000 - 2004
-
№АртикулНазвание
-
111000126 EngineEngine
-
2512059422 Engine supportEngine support
-
3512059425 Engine support, frontEngine support, front
-
420005 WasherWasher
-
520113 Spring washerSpring washer
-
6205003544 Screw M10 x 35Screw M10 x 35
-
7512059691 Rubber mountRubber mount
-
840041 Screw M10 x 30Screw M10 x 30
-
9512059315 Engine support, rearEngine support, rear
-
10512056700 Lock washerLock washer
-
11512059316 Rubber mountRubber mount
-
1233074 Elastic flanged nut M10Elastic flanged nut M10
-
13512059710 Rubber mountRubber mount
-
14512059921 Support plateSupport plate
-
1540327 Screw M6 x 12Screw M6 x 12
-
1640053 Allen screw M10 x 25Allen screw M10 x 25
-
1740029 Screw M6 x 16Screw M6 x 16
-
1833200 Elastic flanged nut M6Elastic flanged nut M6
