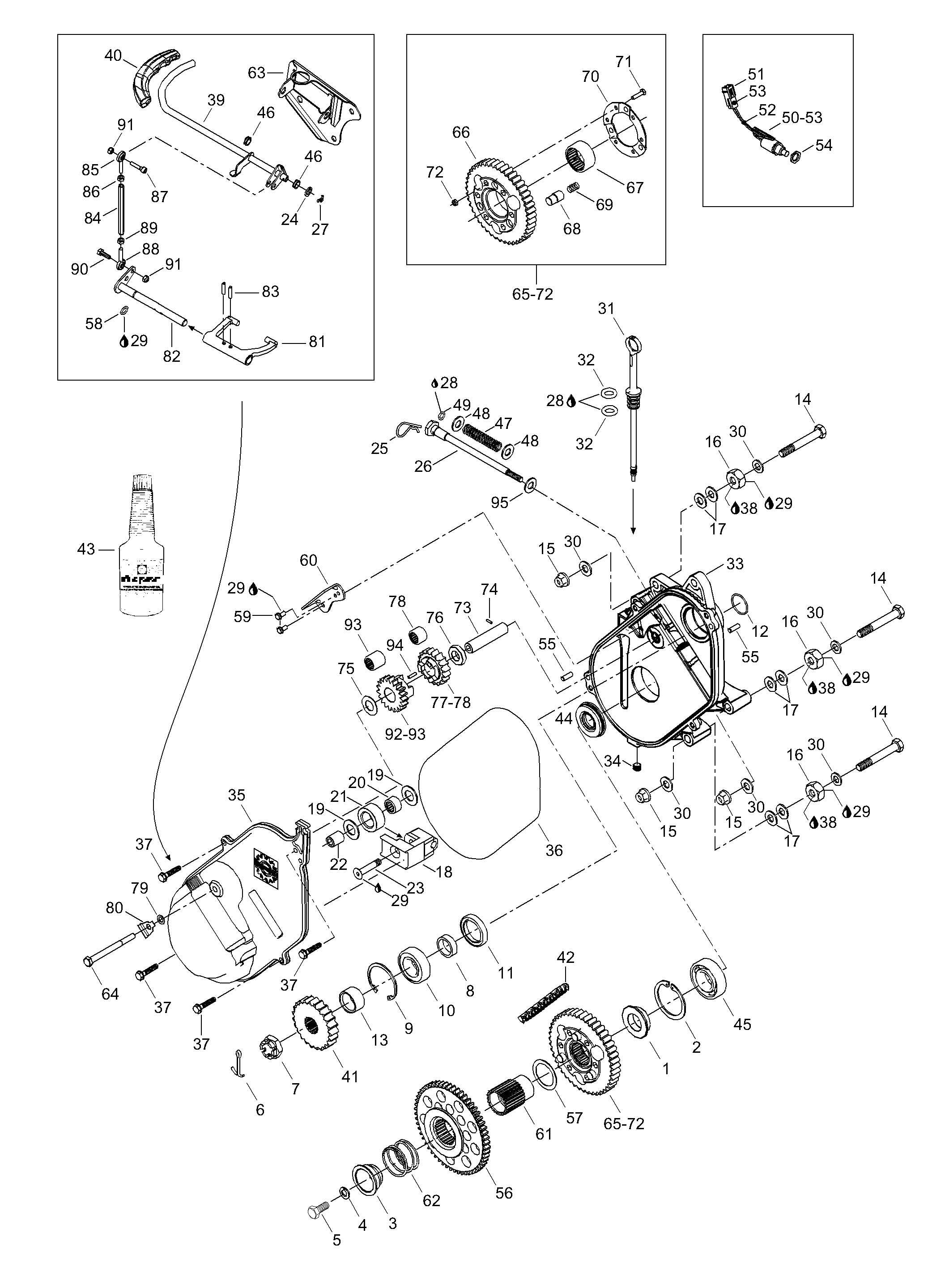

05- Chaincase для BRP Lynx Ranger V-1000 - 2004
-
№АртикулНазвание
-
1504076300 Ring-retainingRing-retaining
-
2415064300 CirclipCirclip
-
3504151964 CapCap
-
420068 WasherWasher
-
540196 Screw M10 x 50Screw M10 x 50
-
641003 Cotter pinCotter pin
-
7732610012 Castalled nut M20Castalled nut M20
-
8504147200 ShimShim
-
9371901700 CirclipCirclip
-
10504152006 BearingBearing
-
11415049300 SealSeal
-
12414876700 O-ringO-ring
-
13507031500 SpacerSpacer
-
1440190 Screw M10 x 80Screw M10 x 80
-
1533012 Nut elastic M10Nut elastic M10
-
16504083800 SpacerSpacer
-
17504073700 WasherWasher
-
18504151940 TensionerTensioner
-
19504080300 WasherWasher
-
20405403000 Needle bearingNeedle bearing
-
21414531300 RollerRoller
-
22504080200 SpacerSpacer
-
23732601144 ScrewScrew
-
24503189264 WasherWasher
-
25414575600 PinPin
-
26504151946 Tension adjuster screwTension adjuster screw
-
27371800800 Cotter pinCotter pin
-
28413711500 GreaseGrease
-
29293800005 Loctite 271/10 mlLoctite 271/10 ml
-
3020005 WasherWasher
-
31504151750 Filler cap assyFiller cap assy
-
32414969400 O-ringO-ring
-
33504152062 ChaincaseChaincase
-
34504151921 PlugPlug
-
35504151845 CoverCover
-
36415046400 O-ringO-ring
-
3740340 Self tapping screw M6 x 30Self tapping screw M6 x 30
-
38293800023 Loctite 767Loctite 767
-
39504151810 HandleHandle
-
40570064600 GripGrip
-
41504139300 Sprocket Z=21Sprocket Z=21
-
42504151857 Chain driving, 13/74Chain driving, 13/74
-
43320007 Synthetic chaincase oilSynthetic chaincase oil
-
44504151918 SealSeal
-
45504152005 BearingBearing
-
46504151818 BushingBushing
-
47504151945 SpringSpring
-
48503125900 Washer, hardenedWasher, hardened
-
49504151954 O-ringO-ring
-
50515175967 Switch assy. Includes items 50 thru 53Switch assy. Includes items 50 thru 53
-
51515175232 Male terminalMale terminal
-
52293740005 TubingTubing
-
53515175654 Connector housingConnector housing
-
54250100012 Nut M12Nut M12
-
55732620001 Cylinder pinCylinder pin
-
56504096800 Sprocket Z=56Sprocket Z=56
-
57504094300 WasherWasher
-
58414773200 O-ringO-ring
-
59210251180 ScrewScrew
-
60504152036 SliderSlider
-
61504097700 CouplingCoupling
-
62504096600 SpringSpring
-
63504151823 Support, reverseSupport, reverse
-
6440090 Screw M8 x 90Screw M8 x 90
-
65581096800 Sprocket 44TH assy. Includes items 65 thru 72Sprocket 44TH assy. Includes items 65 thru 72
-
66504084400 Sprocket 44THSprocket 44TH
-
67414772600 Needle bearingNeedle bearing
-
68504076800 Drive pinDrive pin
-
69414772700 SpringSpring
-
70504076100 Retainer ringRetainer ring
-
71207152044 Screw M5 x 20Screw M5 x 20
-
72233551416 Nut elastic M5Nut elastic M5
-
73504083100 Reverse shaftReverse shaft
-
74250400010 Rolled pin M3x10Rolled pin M3x10
-
75504077300 WasherWasher
-
76504078700 SleeveSleeve
-
77581096900 Sprocket 19 TH assy. Includes items 77 thru 78Sprocket 19 TH assy. Includes items 77 thru 78
-
78414773100 Needle bearingNeedle bearing
-
79504082900 WasherWasher
-
80504087700 Locking plateLocking plate
-
81504075800 ForkFork
-
82504151806 Fork axleFork axle
-
83414772500 Spring pinSpring pin
-
84504151814 Tie rodTie rod
-
85414773400 R.H. ball jointR.H. ball joint
-
8633015 Nut M6Nut M6
-
8740052 Allen screw M6 x 20Allen screw M6 x 20
-
88414773500 L.H. ball jointL.H. ball joint
-
8933002 Nut M6Nut M6
-
9040030 Screw M6 x 20Screw M6 x 20
-
9133010 Nut elastic M6Nut elastic M6
-
92581122200 Sprocket 19 TH assy. Includes items 92 thru 93Sprocket 19 TH assy. Includes items 92 thru 93
-
93414805000 Needle bearingNeedle bearing
-
94570048600 Alignment rodAlignment rod
-
95503189148 Washer, hardenedWasher, hardened
