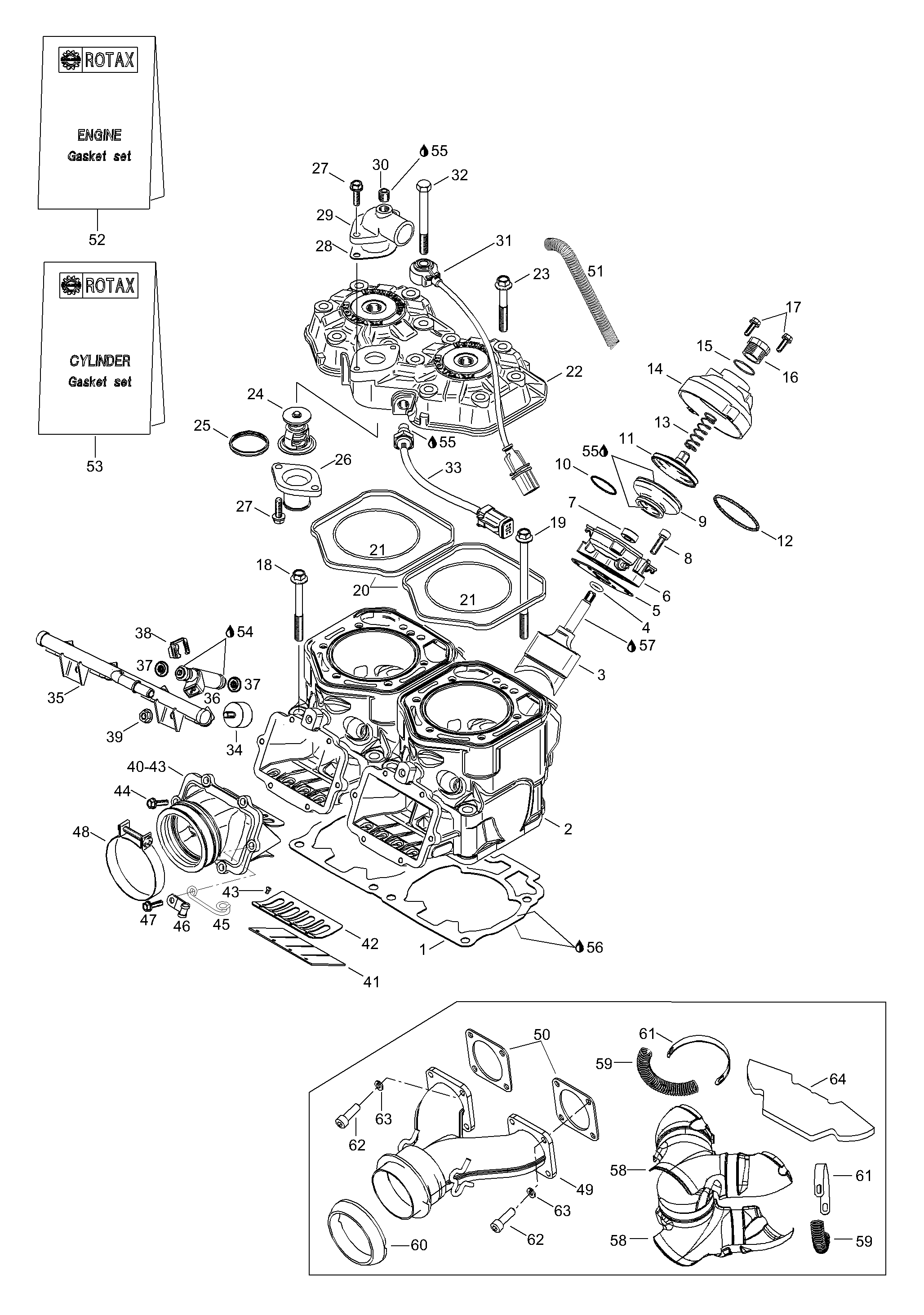

01- Cylinder для BRP Lynx Sport Touring 800 - 2004
-
№АртикулНазвание
-
1420931838 Gasket, double 0.5 mmGasket, double 0.5 mm
-
1420931837 Gasket, double 0.6 mmGasket, double 0.6 mm
-
1420931964 Gasket, double 0.7 mmGasket, double 0.7 mm
-
1420931839 Gasket, double 0.8 mmGasket, double 0.8 mm
-
2420923813 CylinderCylinder
-
3420854660 Exhaust valveExhaust valve
-
4420430110 O-ringO-ring
-
5420931542 Oil sealOil seal
-
6420854454 Valve rod housingValve rod housing
-
7420950730 Oil sealOil seal
-
8420840861 Allen screw M6 x 25Allen screw M6 x 25
-
9420260729 BellowsBellows
-
10420838255 Hose springHose spring
-
11420854449 Exhaust valve pistonExhaust valve piston
-
12420939280 Compression springCompression spring
-
13420239941 Spring, blueSpring, blue
-
14420911558 Valve coverValve cover
-
15420430220 O-ringO-ring
-
16420241220 Adjustment screwAdjustment screw
-
17420241270 Screw M5 x 25Screw M5 x 25
-
18420640524 Screw M10 x 80Screw M10 x 80
-
19420640534 Screw M10 x 120Screw M10 x 120
-
20420931590 Square ringSquare ring
-
21420931410 O-ringO-ring
-
22420923825 CylinderheadCylinderhead
-
23420941621 Screw M8x56,5Screw M8x56,5
-
24420922518 ThermostatThermostat
-
25420931272 Thermostat gasketThermostat gasket
-
26420922025 Water outlet socketWater outlet socket
-
27420941250 Screw M6 x 20Screw M6 x 20
-
28420850338 GasketGasket
-
29420922062 Bent otlet socketBent otlet socket
-
30420240480 Plug screwPlug screw
-
31420664030 Knock sensorKnock sensor
-
32420941221 Screw M8 x 80Screw M8 x 80
-
33420664500 Temperature sensorTemperature sensor
-
34420960065 Rubber bufferRubber buffer
-
35420874460 Fuel railFuel rail
-
36420874485 Fuel injectorFuel injector
-
37420631220 O-ringO-ring
-
38420851800 Injector clipInjector clip
-
39420442172 Nut elastic M6Nut elastic M6
-
40420867230 Reed valve assy. Includes items 40 thru 43Reed valve assy. Includes items 40 thru 43
-
41420924680 Reed pedalReed pedal
-
42420924695 Reed pedal stopReed pedal stop
-
43420941215 Screw M3 x 5Screw M3 x 5
-
44420941925 Screw M5 x 16Screw M5 x 16
-
45420853640 HookHook
-
46420853412 ClampClamp
-
47420841550 Taptite screw M5 x 22Taptite screw M5 x 22
-
48420851810 ClampClamp
-
49420673245 Exhaust manifoldExhaust manifold
-
50420931850 GasketGasket
-
51420460010 Tubing, 450 mmTubing, 450 mm
-
52420888741 Gasket kit, engineGasket kit, engine
-
53420888745 Gasket kit, cylinderGasket kit, cylinder
-
55420297906 Sealing compoundSealing compound
-
56293800038 Loctite 518, 50 mlLoctite 518, 50 ml
-
58514053593 Heat protectorHeat protector
-
59514053643 SpringSpring
-
60514053487 GasketGasket
-
61514053603 ClampClamp
-
6240052 Allen screw M6 x 20Allen screw M6 x 20
-
6320052 Spring washerSpring washer
-
64514053588 IsolationIsolation
