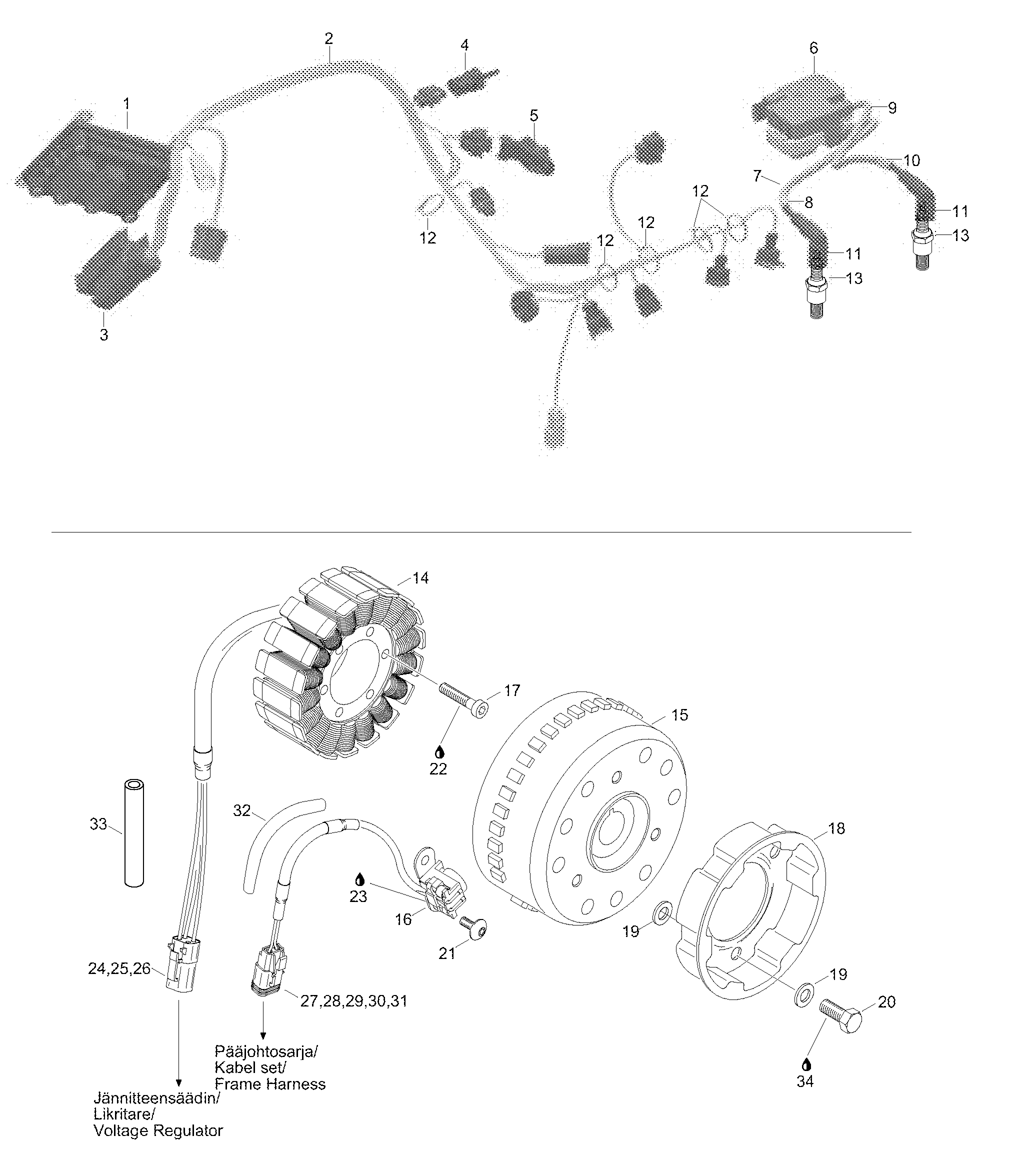

10- Electric для BRP Lynx Sport Touring 800 - 2004
-
№АртикулНазвание
-
1420664572 Electronic boxElectronic box
-
2420664312 Engine wiring harnessEngine wiring harness
-
3420664450 Connector housingConnector housing
-
4420966970 Temperature sensorTemperature sensor
-
5420274055 Pressure sensorPressure sensor
-
6420266070 Ignition coil assyIgnition coil assy
-
7420664300 Spark plug wire 365 mmSpark plug wire 365 mm
-
8420660632 Sleeve, MAGSleeve, MAG
-
9420664305 Spark plug wire 245 mmSpark plug wire 245 mm
-
10420660630 Sleeve, PTOSleeve, PTO
-
11278000237 Spark plug protectorSpark plug protector
-
12420866714 Tie rapTie rap
-
13512059534 Spark plug BR9ECSSpark plug BR9ECS
-
14420866060 Stator assyStator assy
-
15420866045 Magneto flywheelMagneto flywheel
-
16420966835 Pick upPick up
-
17420241816 Allen screw M6 x 40Allen screw M6 x 40
-
18420852532 Starter cupStarter cup
-
19420827405 Lock washerLock washer
-
20207181644 Screw M8 x 16Screw M8 x 16
-
21420640321 Taptite screw M6 x 16Taptite screw M6 x 16
-
22420897651 Loctite 243, blue, 10ccLoctite 243, blue, 10cc
-
23420297710 PU-glue, sikaflex 255PU-glue, sikaflex 255
-
24278001473 Female terminal housingFemale terminal housing
-
25515175568 Female terminalFemale terminal
-
26278001474 Female lock (4 circuits)Female lock (4 circuits)
-
27515175670 Female terminal housingFemale terminal housing
-
28278000632 Female terminalFemale terminal
-
29278001661 Female terminalFemale terminal
-
30515175675 Female lock (2 circuits)Female lock (2 circuits)
-
31293000052 PlugPlug
-
32420460012 Tubing, 30 mmTubing, 30 mm
-
33420660911 Tubing, 330 mmTubing, 330 mm
-
34420899785 Loctite 221/viol.Loctite 221/viol.
