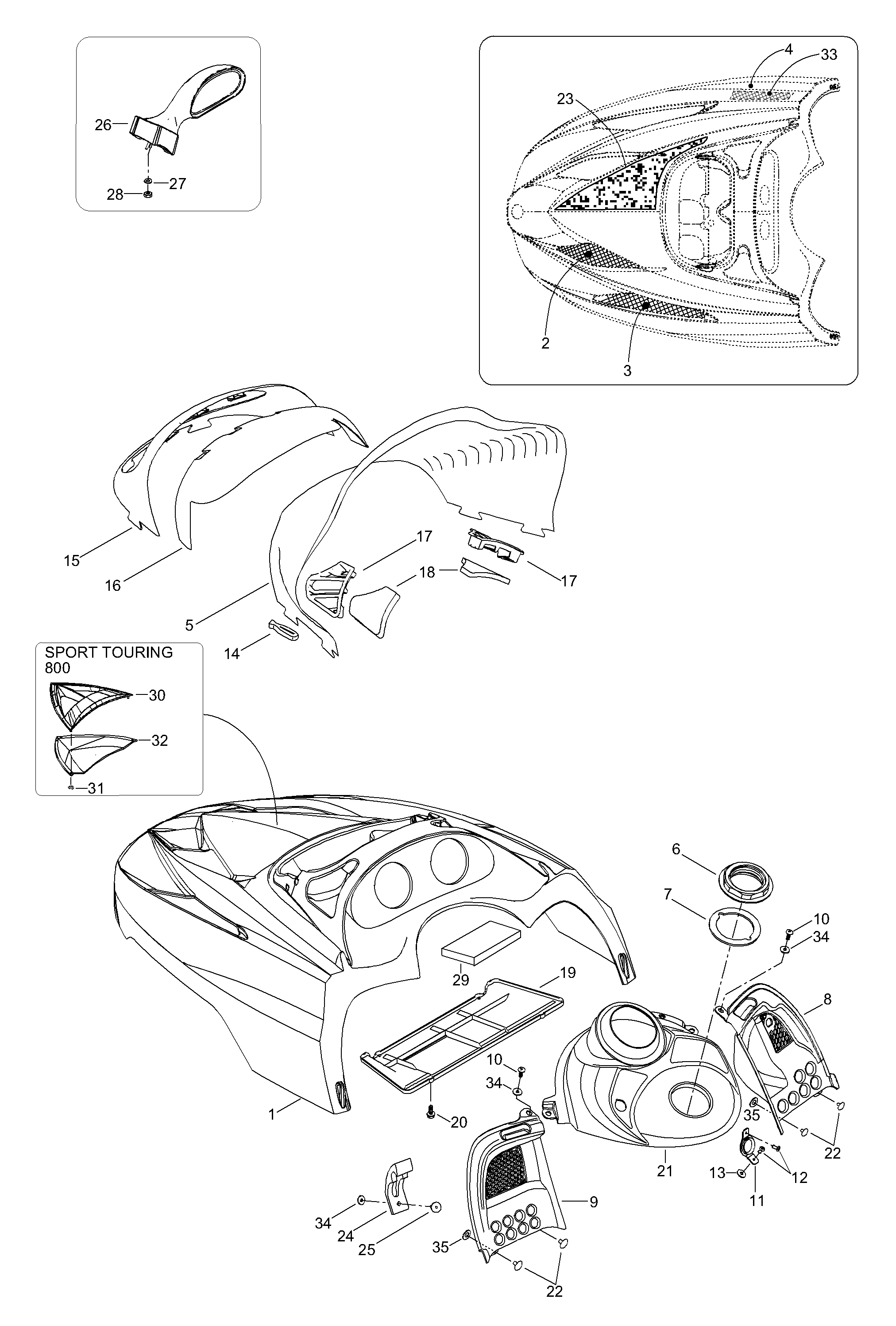

09- Hood для BRP Lynx Sport Touring 800 - 2004
-
№АртикулНазвание
-
1605150442 Hood, Jade Green. Includes items 1 thru 3Hood, Jade Green. Includes items 1 thru 3
-
25346887 L.H. GrillL.H. Grill
-
25346888 R.H. GrillR.H. Grill
-
35346889 L.H. GrillL.H. Grill
-
35346890 R.H. GrillR.H. Grill
-
4605149354 Heat protectorHeat protector
-
5605148994 Windshield, X-highWindshield, X-high
-
6517302043 Console nutConsole nut
-
75447116 GasketGasket
-
8517302027 R.H.consoleR.H.console
-
9517302006 L.H.consoleL.H.console
-
10732600030 ScrewScrew
-
11517302129 Rope guideRope guide
-
1236002 RivetRivet
-
13517302286 Rubber stopperRubber stopper
-
14570023800 Windshield latchWindshield latch
-
15517302582 Mold. head lampMold. head lamp
-
16517302003 Windshield supportWindshield support
-
17517302024 R.H. air intake grillR.H. air intake grill
-
17517302025 L.H. air intake grillL.H. air intake grill
-
18605450267 Air intake foamAir intake foam
-
19517302836 Air intake plateAir intake plate
-
20243141640 Screw M4.8 x 16Screw M4.8 x 16
-
21517302729 Center consoleCenter console
-
2236036 RivetRivet
-
23414631900 Foam-acousticFoam-acoustic
-
24570027100 Hood latchHood latch
-
2536037 RivetRivet
-
26517302764 R.H. mirrorR.H. mirror
-
26517302766 L.H. mirrorL.H. mirror
-
2720037 WasherWasher
-
2833008 Nut elastic M4Nut elastic M4
-
29605350268 FoamFoam
-
30517303016 GrillGrill
-
3141034 Snap ringSnap ring
-
32605349372 Inlet ductInlet duct
-
33517302998 R.H. grillR.H. grill
-
3420008 WasherWasher
-
3520002 WasherWasher
