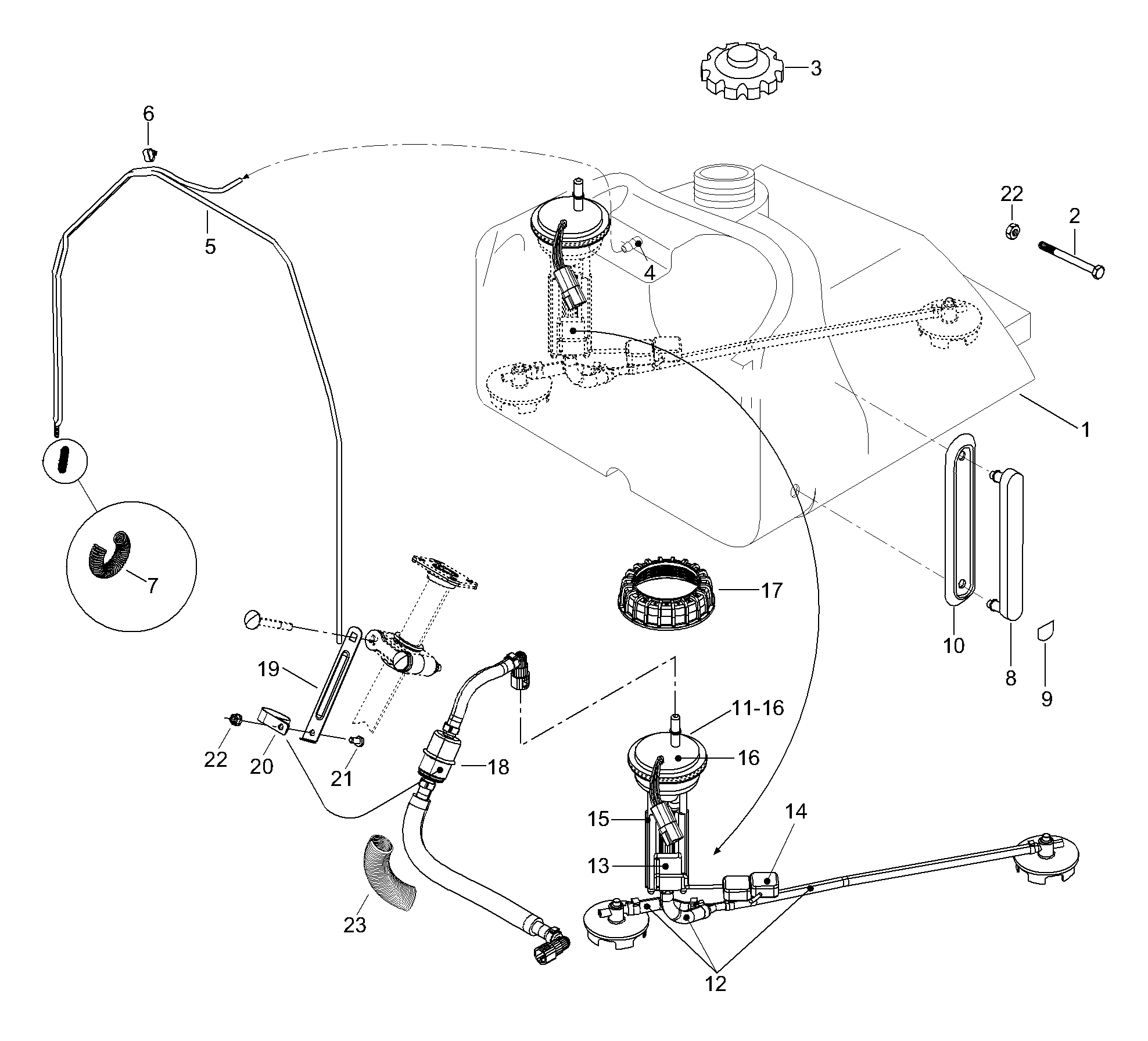

02- Fuel Tank для BRP Lynx Sport Touring 800 - 2004
-
№АртикулНазвание
-
1605149201 Fuel tankFuel tank
-
240193 Screw M6 x 50Screw M6 x 50
-
3572039600 Cap assemblyCap assembly
-
419051 FittingFitting
-
539035 Airhose 5/3Airhose 5/3
-
6513032923 Tube clampTube clamp
-
7414818200 SpringSpring
-
8572015900 Fuel gaugeFuel gauge
-
9549200 Fuel labelFuel label
-
10570018000 Housing gaugeHousing gauge
-
11513033101 Fuel pump assy. Includes items 11 thru 16Fuel pump assy. Includes items 11 thru 16
-
12861302300 Fuel hose kitFuel hose kit
-
13861301800 Resistor card kitResistor card kit
-
14861301900 Float lever kitFloat lever kit
-
15861302000 Pump kitPump kit
-
16861302100 Regulator kitRegulator kit
-
17513033040 CoverCover
-
18605350660 Fuel filter assyFuel filter assy
-
19513033057 BracketBracket
-
20513033047 ClampClamp
-
2140029 Screw M6 x 16Screw M6 x 16
-
2233200 Elastig flanged nut M6Elastig flanged nut M6
-
2328015 TubingTubing
