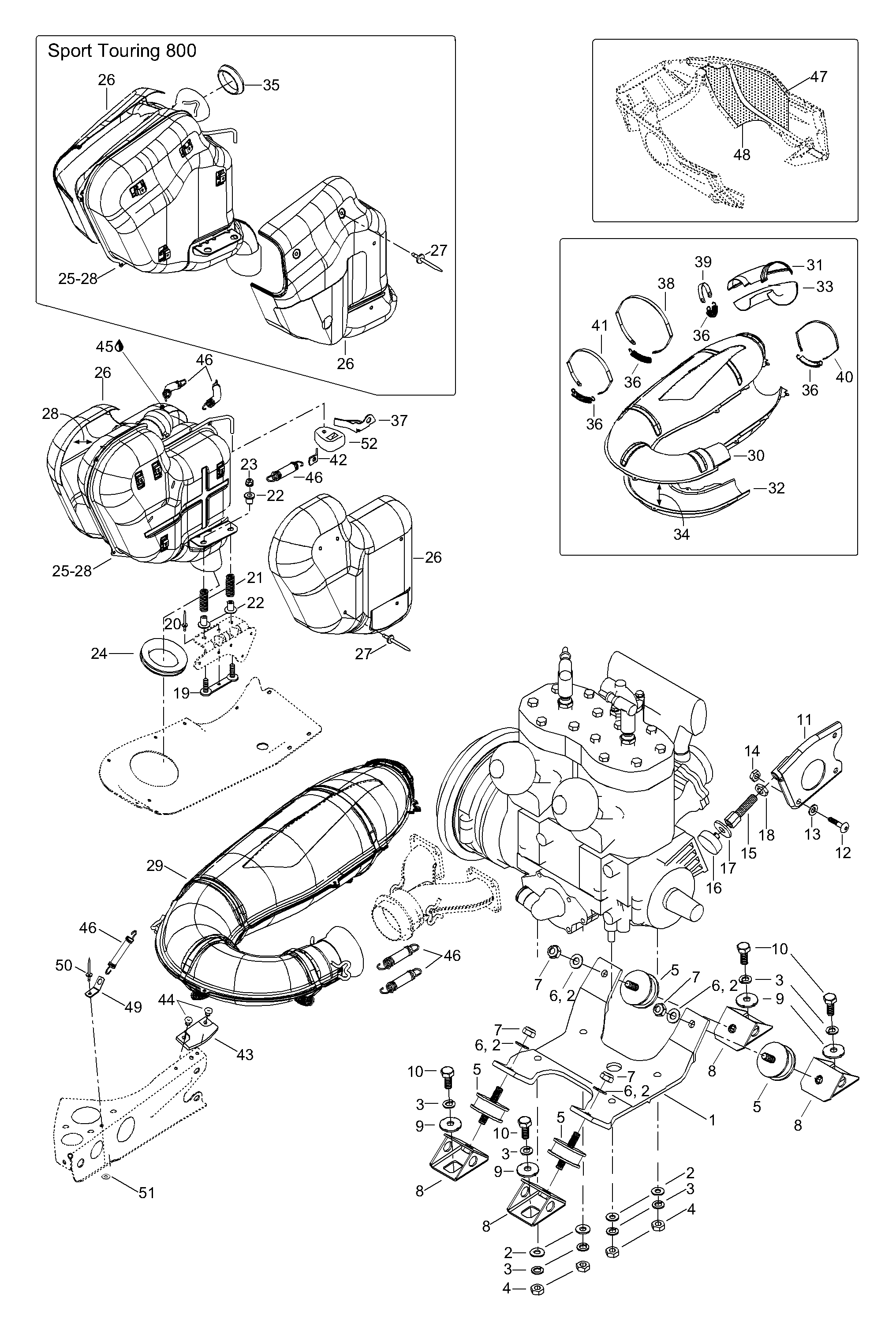

01- Engine Mount Plate/Muffler для BRP Lynx Sport Touring 800 - 2004
-
№АртикулНазвание
-
1512059173 Engine supportEngine support
-
220105 Washer, hardenedWasher, hardened
-
320047 Spring washerSpring washer
-
433004 Nut M10Nut M10
-
5570128700 Rubber mountRubber mount
-
733012 Nut elastic M10Nut elastic M10
-
8512050900 Engine supportEngine support
-
9512056700 Lock washerLock washer
-
1040040 Screw M10 x 25Screw M10 x 25
-
11512058500 Support plateSupport plate
-
1240344 Allen screw M8 x 25Allen screw M8 x 25
-
1320104 Washer, hardenedWasher, hardened
-
1433011 Nut elastic M8Nut elastic M8
-
15512058800 Stopper screwStopper screw
-
16512059056 StopperStopper
-
1720023 WasherWasher
-
1833218 Jam nut M12Jam nut M12
-
195447628 BracketBracket
-
2036083 RivetRivet
-
21414913700 SpringSpring
-
22514053343 SleeveSleeve
-
2333029 Elastic flanged nut M8Elastic flanged nut M8
-
24514053064 Rubber grommetRubber grommet
-
25514053675 Muffler assy. Includes items 25 thru 28Muffler assy. Includes items 25 thru 28
-
26514053680 L.H. heat shieldL.H. heat shield
-
26514053694 R.H. heat shieldR.H. heat shield
-
27390910000 RivetRivet
-
28514053682 L.H. insulating woolL.H. insulating wool
-
28514053681 R.H. insulating woolR.H. insulating wool
-
29514053717 Muffler assy. Includes items 29 thru 41Muffler assy. Includes items 29 thru 41
-
30514053724 Upper enveloppeUpper enveloppe
-
31514053313 Rear upper enveloppeRear upper enveloppe
-
32514053691 Lower enveloppeLower enveloppe
-
33514053314 Rear lower enveloppeRear lower enveloppe
-
34514053696 IsolationIsolation
-
35514053677 Exhaust gasketExhaust gasket
-
36514053643 SpringSpring
-
37514053442 SupportSupport
-
38514053540 Norma gear clampNorma gear clamp
-
39514053492 Norma gear clampNorma gear clamp
-
40514053500 Norma gear clampNorma gear clamp
-
41514052512 Norma gear clampNorma gear clamp
-
42514053436 Brached, springBrached, spring
-
43570044100 Rubber padRubber pad
-
4436037 RivetRivet
-
45293800090 Sealant, Loctite 80mlSealant, Loctite 80ml
-
46415107100 SpringSpring
-
47514052718 IsoleringIsolering
-
48514053390 IsoleringIsolering
-
495447086 Spring bracketSpring bracket
-
5036489 RivetRivet
-
5120008 WasherWasher
-
52514052704 Rubber pumberRubber pumber
