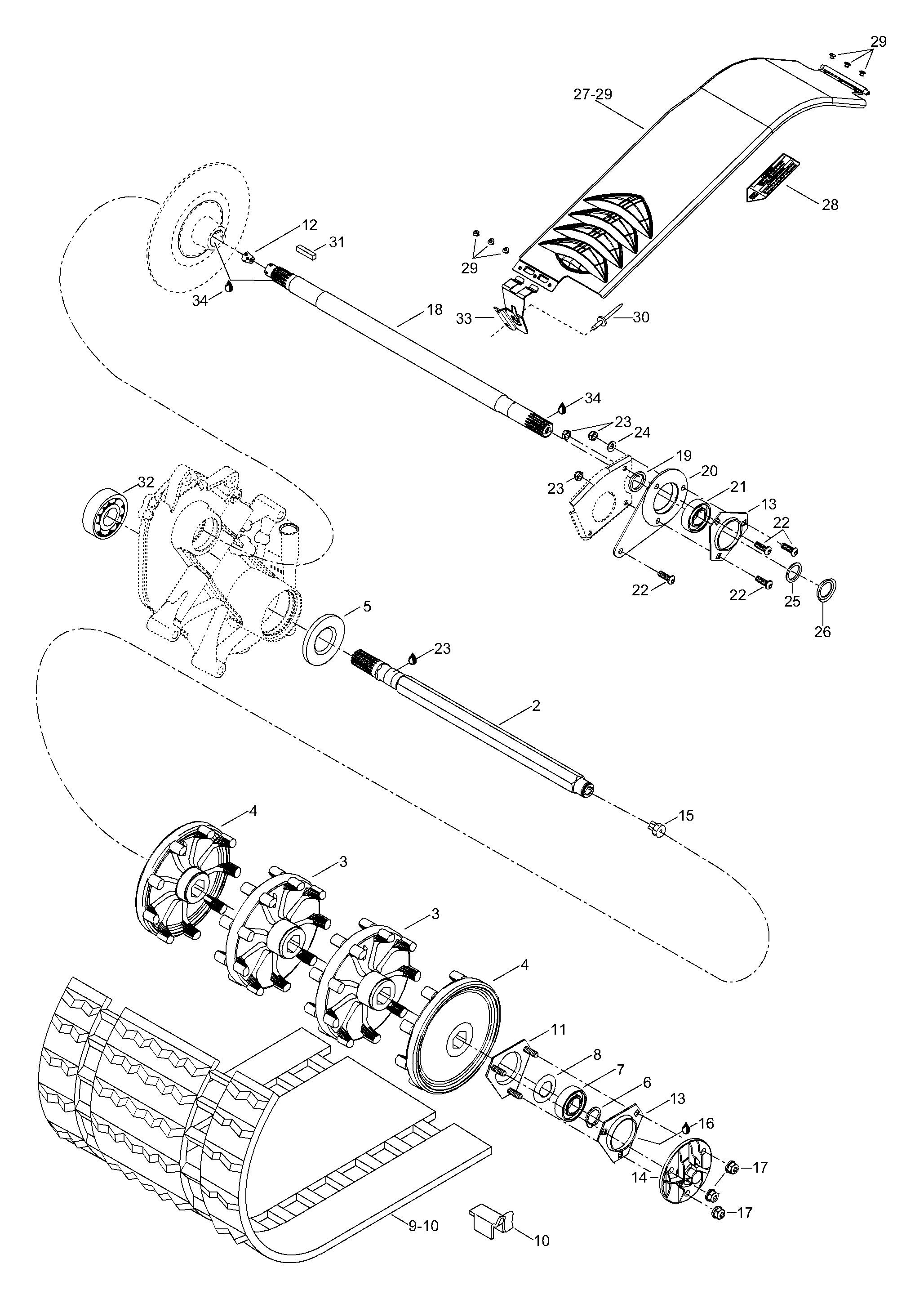

05- Drive Axle для BRP Lynx Sport Touring 800 - 2004
-
№АртикулНазвание
-
15346820 Drive axle assy. Includes items 1 thru 3Drive axle assy. Includes items 1 thru 3
-
2501027400 Drive axleDrive axle
-
3504151781 Sprocket 9 teethSprocket 9 teeth
-
4504151782 Half sprocket 9 teethHalf sprocket 9 teeth
-
5504151918 Oil sealOil seal
-
631001 CirclipCirclip
-
7504152009 BearingBearing
-
8501017400 Ball bearing protectorBall bearing protector
-
9504152028 Track (31,8). Includes items 9 thru 10Track (31,8). Includes items 9 thru 10
-
10500003400 Guide cleatGuide cleat
-
11504151860 Bearing housingBearing housing
-
12414784800 CorkCork
-
13501025000 FlangeFlange
-
14504152173 FlangeFlange
-
15504152040 Magnetic, adaptorMagnetic, adaptor
-
16413711500 Synthetic greaseSynthetic grease
-
1733201 Elastic flanged nut M6Elastic flanged nut M6
-
18501026300 Counter shaftCounter shaft
-
19504149100 HylsaHylsa
-
20080044200 Casting spacerCasting spacer
-
21504152026 Bearing ballBearing ball
-
2240344 Allen screw M8 x 25Allen screw M8 x 25
-
2333011 Nut elastic M8Nut elastic M8
-
2420004 WasherWasher
-
25417300054 ShimShim
-
26417300055 ProtectorProtector
-
27417300173 Belt guard assy. Includes items 27 thru 29Belt guard assy. Includes items 27 thru 29
-
28516001190 Warning labelWarning label
-
29390402200 RivetRivet
-
3036087 RivetRivet
-
31507021300 KeyKey
-
32504152005 Bearing ballBearing ball
-
33417300001 BracketBracket
-
34293800023 Loctite 767, antiseizeLoctite 767, antiseize
