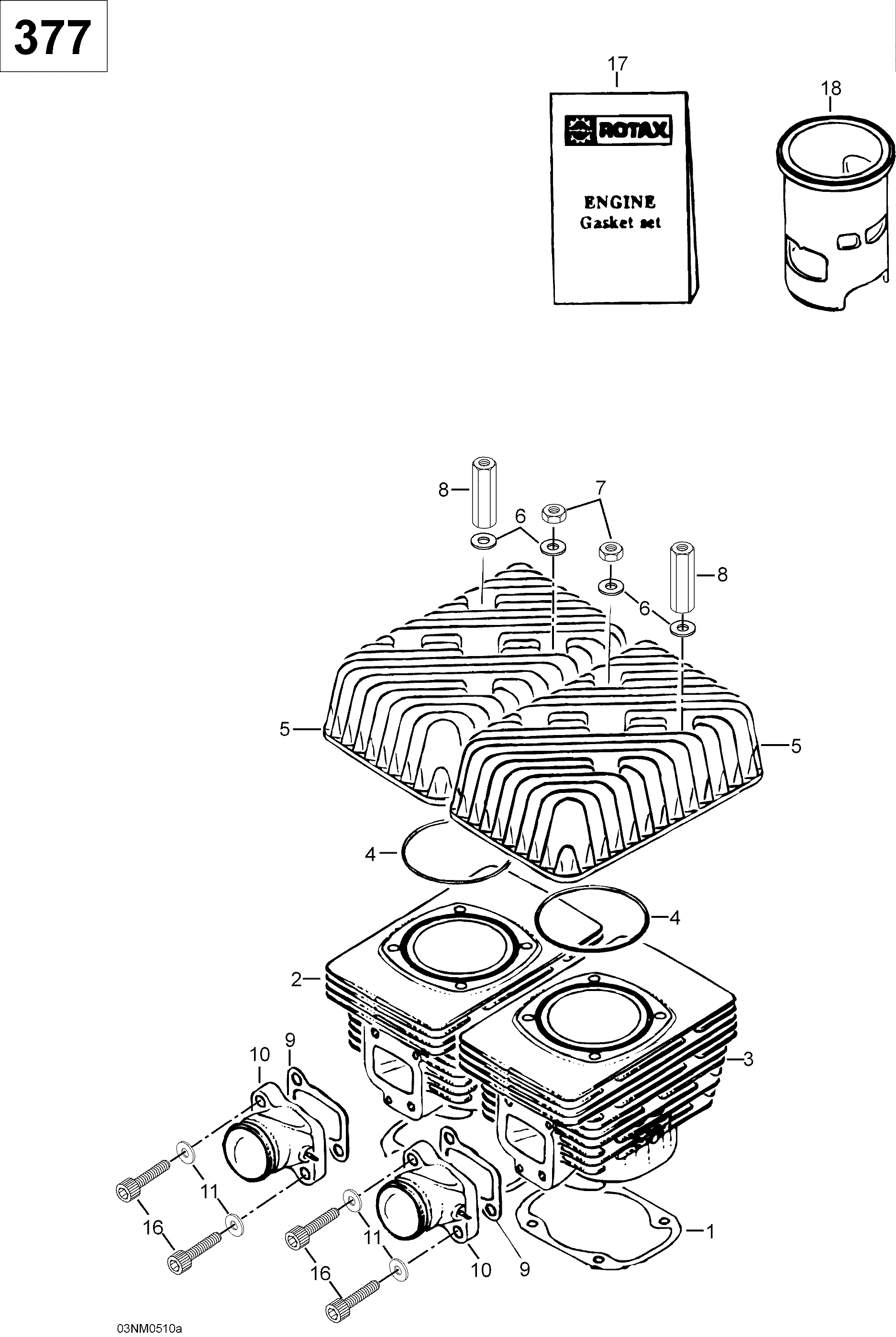

01- Cylinder And Cylinder Head 377 для BRP Lynx Enduro 400RC - 2005
-
№АртикулНазвание
-
1420931781 Gasket, cyl.bottom 0.4Gasket, cyl.bottom 0.4
-
2420923404 Cylinder,var.sideCylinder,var.side
-
3420923409 Cylinder, mag.sideCylinder, mag.side
-
4420931380 Gasket, cylinder headGasket, cylinder head
-
5420613632 Cylinder headCylinder head
-
620004 WasherWasher
-
7420242206 Nut M8Nut M8
-
8420842208 Nut M8 x 51Nut M8 x 51
-
9420831866 Intake gasket 1,0 mmIntake gasket 1,0 mm
-
10420867408 Intake manifoldIntake manifold
-
1120014 Spring washerSpring washer
-
12420841591 Allen screw M8 x 35Allen screw M8 x 35
-
13420994232 Gasket setGasket set
-
14420923781 Spare cylinder sleeveSpare cylinder sleeve
-
15420297434 LoctiteLoctite
