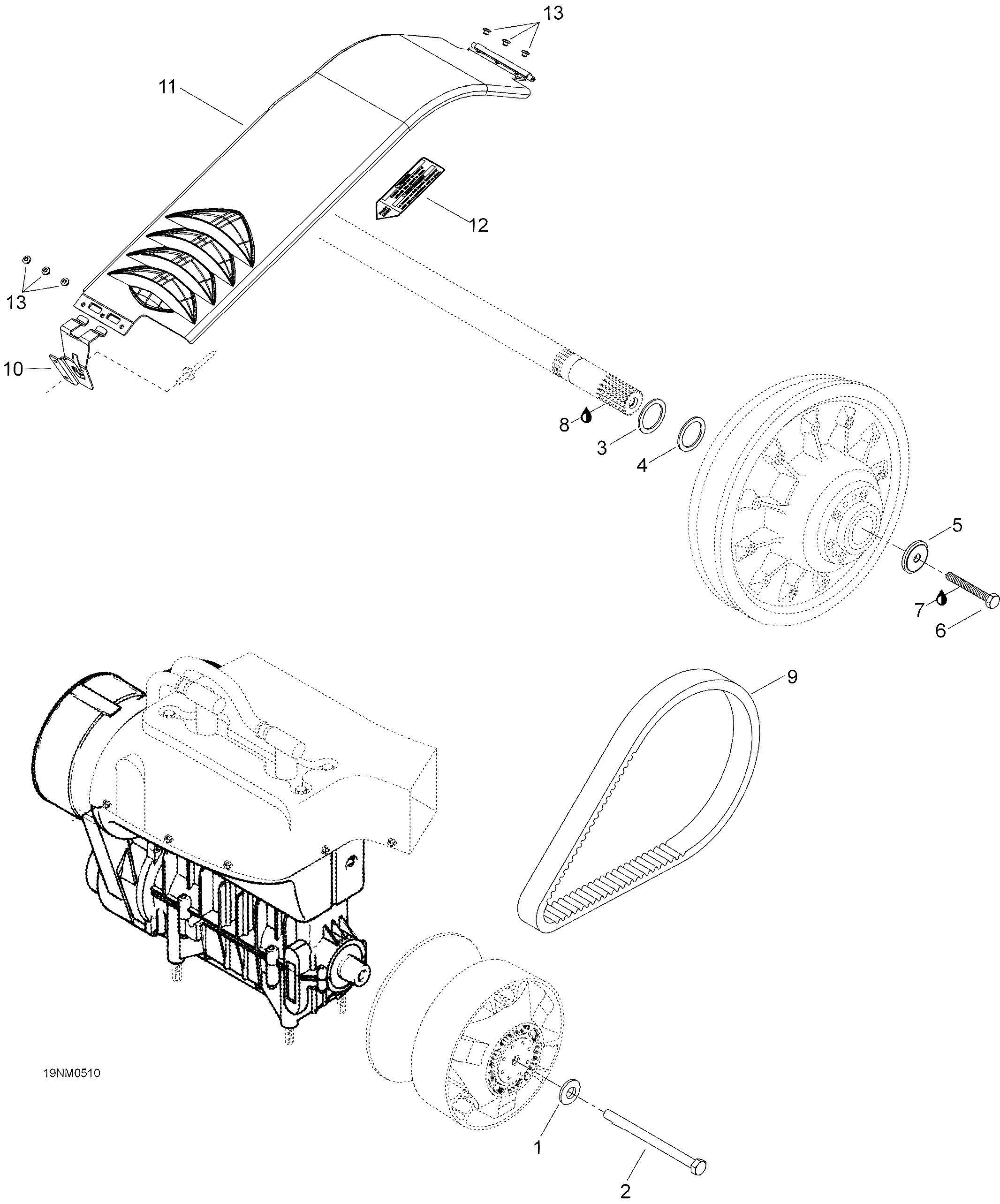

05- Pulley System, 400RC для BRP Lynx Enduro 400RC - 2005
-
№АртикулНазвание
-
120090 WasherWasher
-
2417113800 BoltBolt
-
3417300054 Shim. Enduro 400 R.C.Shim. Enduro 400 R.C.
-
4417300055 ShimShim
-
5517302322 WasherWasher
-
640089 Hex. screw M8 x 75Hex. screw M8 x 75
-
7293800060 Loctite 243, 10mlLoctite 243, 10ml
-
8293800070 Loctite 767, 8ozLoctite 767, 8oz
-
9415060600 Drive beltDrive belt
-
10417300172 BracketBracket
-
11417300173 Belt quard ass'y. Includes 11 to 13Belt quard ass'y. Includes 11 to 13
-
12516001190 Warning labelWarning label
-
13390402200 RivetRivet
