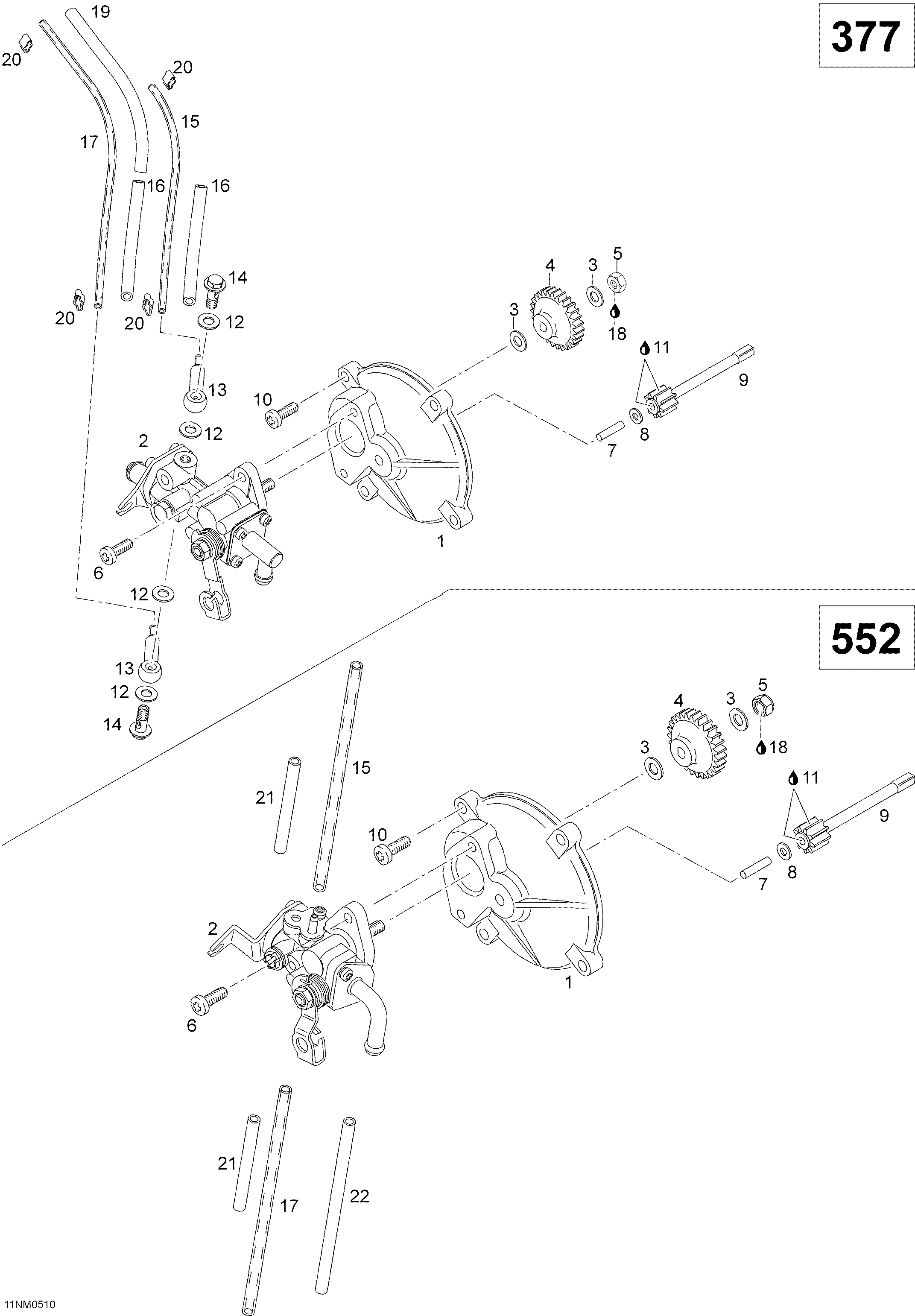

02- Oil Pump, 400RC для BRP Lynx Enduro 400RC - 2005
-
№АртикулНазвание
-
1420910160 Pump Mounting FlangePump Mounting Flange
-
2420887996 Oil Pump Ass’Y. Enduro 400 R.C.Oil Pump Ass’Y. Enduro 400 R.C.
-
3420927945 Flat WasherFlat Washer
-
4420935930 Oil Pump Gear, 27 TeethOil Pump Gear, 27 Teeth
-
5232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
6420841971 ScrewScrew
-
7420832260 Needle PinNeedle Pin
-
8420244073 Washer 4.3 mmWasher 4.3 mm
-
9420935970 Gear, 9 TeethGear, 9 Teeth
-
10420841976 ScrewScrew
-
11413707000 Molykote 111, 150 GMolykote 111, 150 G
-
12404146600 Sealing WasherSealing Washer
-
13420956010 Valve Ass’YValve Ass’Y
-
14404146800 Banjo Bolt M6 X 16Banjo Bolt M6 X 16
-
15414413800 Oil LineOil Line
-
16420960750 Isolation Line 90 mmIsolation Line 90 mm
-
17414413800 Oil LineOil Line
-
18293800060 Loctite 243, 250 mlLoctite 243, 250 ml
-
19420960729 Isolation Hose 150 mmIsolation Hose 150 mm
-
20420853840 ClampClamp
