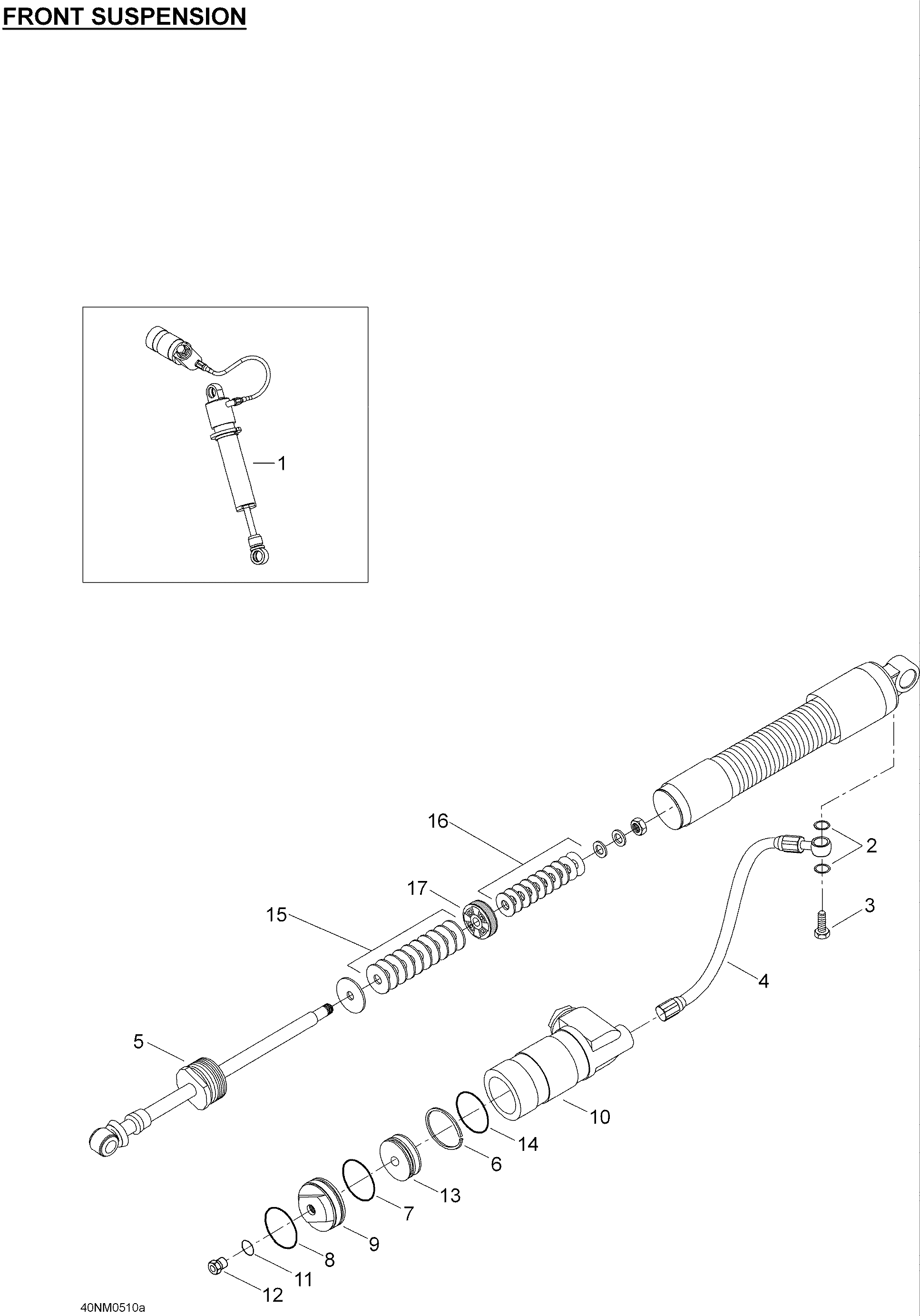

07- Take Apart Shock, Ski, 400RC для BRP Lynx Enduro 400RC - 2005
-
№АртикулНазвание
-
123197 Shock. Includes 1 to 14, Enduro 400 R.C.Shock. Includes 1 to 14, Enduro 400 R.C.
-
2415038700 O-ringO-ring
-
3415093810 Banjo-boltBanjo-bolt
-
4230062 HoseHose
-
6415093806 Piston ringPiston ring
-
7415093804 O-ringO-ring
-
8415093805 Stop ringStop ring
-
11230050 O-ring. Enduro 400 R.C.O-ring. Enduro 400 R.C.
-
12230061 Air valve. Enduro 400 R.C.Air valve. Enduro 400 R.C.
-
13415093812 Free pistonFree piston
-
14415093807 O-ringO-ring
-
15415038800 Leaf valve 12x0.114Leaf valve 12x0.114
-
15414888339 Leaf valve 12x0.152Leaf valve 12x0.152
-
15414888338 Leaf valve 12x0.203Leaf valve 12x0.203
-
15414888337 Leaf valve 15x0.114Leaf valve 15x0.114
-
15414888336 Leaf valve 15x0.152Leaf valve 15x0.152
-
15414888335 Leaf valve 15x0.203Leaf valve 15x0.203
-
15414888334 Leaf valve 15x0.254Leaf valve 15x0.254
-
15415038900 Leaf valve 16x0.114Leaf valve 16x0.114
-
15414888333 Leaf valve 16x0.152Leaf valve 16x0.152
-
15414888332 Leaf valve 16x0.203Leaf valve 16x0.203
-
15414888331 Leaf valve 16x0.254Leaf valve 16x0.254
-
15230015 Leaf valve 18x0.114Leaf valve 18x0.114
-
15414888330 Leaf valve 18x0.152Leaf valve 18x0.152
-
15414888329 Leaf valve 18x0.203Leaf valve 18x0.203
-
15230016 Leaf valve 18x0.254Leaf valve 18x0.254
-
15414888328 Leaf valve 20x0.114Leaf valve 20x0.114
-
15414888327 Leaf valve 20x0.152Leaf valve 20x0.152
-
15414888326 Leaf valve 20x0.203Leaf valve 20x0.203
-
15230017 Leaf valve 20x0.254Leaf valve 20x0.254
-
15230018 Leaf valve 22x0.114Leaf valve 22x0.114
-
15414888325 Leaf valve 22x0.152Leaf valve 22x0.152
-
15414888324 Leaf valve 22x0.203Leaf valve 22x0.203
-
15230019 Leaf valve 22x0.254Leaf valve 22x0.254
-
15230021 Leaf valve 24x0.114Leaf valve 24x0.114
-
15230022 Leaf valve 24x0.152Leaf valve 24x0.152
-
15230023 Leaf valve 24x0.203Leaf valve 24x0.203
-
15230024 Leaf valve 26x0.114Leaf valve 26x0.114
-
15414888323 Leaf valve 26x0.152Leaf valve 26x0.152
-
15414888322 Leaf valve 26x0.203Leaf valve 26x0.203
-
15415039000 Leaf valve 26x0.254Leaf valve 26x0.254
-
15230025 Leaf valve 28x0.114Leaf valve 28x0.114
-
15414888321 Leaf valve 28x0.152Leaf valve 28x0.152
-
15230026 Leaf valve 28x0.254Leaf valve 28x0.254
-
15414888320 Leaf valve 28x0.203Leaf valve 28x0.203
-
15414888319 Leaf valve 30x0.152Leaf valve 30x0.152
-
15414888318 Leaf valve 30 x 0.203Leaf valve 30 x 0.203
-
15415039100 Leaf valve 30x0.254Leaf valve 30x0.254
-
16415038800 Leaf valve 12x0.114Leaf valve 12x0.114
-
16414888339 Leaf valve 12x0.152Leaf valve 12x0.152
-
16414888338 Leaf valve 12x0.203Leaf valve 12x0.203
-
16414888337 Leaf valve 15x0.114Leaf valve 15x0.114
-
16414888336 Leaf valve 15x0.152Leaf valve 15x0.152
-
16414888335 Leaf valve 15x0.203Leaf valve 15x0.203
-
16414888334 Leaf valve 15x0.254Leaf valve 15x0.254
-
16415038900 Leaf valve 16x0.114Leaf valve 16x0.114
-
16414888333 Leaf valve 16x0.152Leaf valve 16x0.152
-
16414888332 Leaf valve 16x0.203Leaf valve 16x0.203
-
16414888331 Leaf valve 16x0.254Leaf valve 16x0.254
-
16230015 Leaf valve 18x0.114Leaf valve 18x0.114
-
16414888330 Leaf valve 18x0.152Leaf valve 18x0.152
-
16414888329 Leaf valve 18x0.203Leaf valve 18x0.203
-
16230016 Leaf valve 18x0.254Leaf valve 18x0.254
-
16414888328 Leaf valve 20x0.114Leaf valve 20x0.114
-
16414888327 Leaf valve 20x0.152Leaf valve 20x0.152
-
16414888326 Leaf valve 20x0.203Leaf valve 20x0.203
-
16230017 Leaf valve 20x0.254Leaf valve 20x0.254
-
16230018 Leaf valve 22x0.114Leaf valve 22x0.114
-
16414888325 Leaf valve 22x0.152Leaf valve 22x0.152
-
16414888324 Leaf valve 22x0.203Leaf valve 22x0.203
-
16230019 Leaf valve 22x0.254Leaf valve 22x0.254
-
16230021 Leaf valve 24x0.114Leaf valve 24x0.114
-
16230022 Leaf valve 24x0.152Leaf valve 24x0.152
-
16230023 Leaf valve 24x0.203Leaf valve 24x0.203
-
16230024 Leaf valve 26x0.114Leaf valve 26x0.114
-
16414888323 Leaf valve 26x0.152Leaf valve 26x0.152
-
16414888322 Leaf valve 26x0.203Leaf valve 26x0.203
-
16415039000 Leaf valve 26x0.254Leaf valve 26x0.254
-
16230025 Leaf valve 28x0.114Leaf valve 28x0.114
-
16414888321 Leaf valve 28x0.152Leaf valve 28x0.152
-
16230026 Leaf valve 28x0.254Leaf valve 28x0.254
-
16414888320 Leaf valve 28x0.203Leaf valve 28x0.203
-
16414888319 Leaf valve 30x0.152Leaf valve 30x0.152
-
16414888318 Leaf valve 30 x 0.203Leaf valve 30 x 0.203
-
16415039100 Leaf valve 30x0.254Leaf valve 30x0.254
-
17230027 Piston, 1 slitsPiston, 1 slits
-
17230028 Piston, 3 slitsPiston, 3 slits
-
17414888306 Piston, 4 slits. Enduro 400 R.C.Piston, 4 slits. Enduro 400 R.C.
