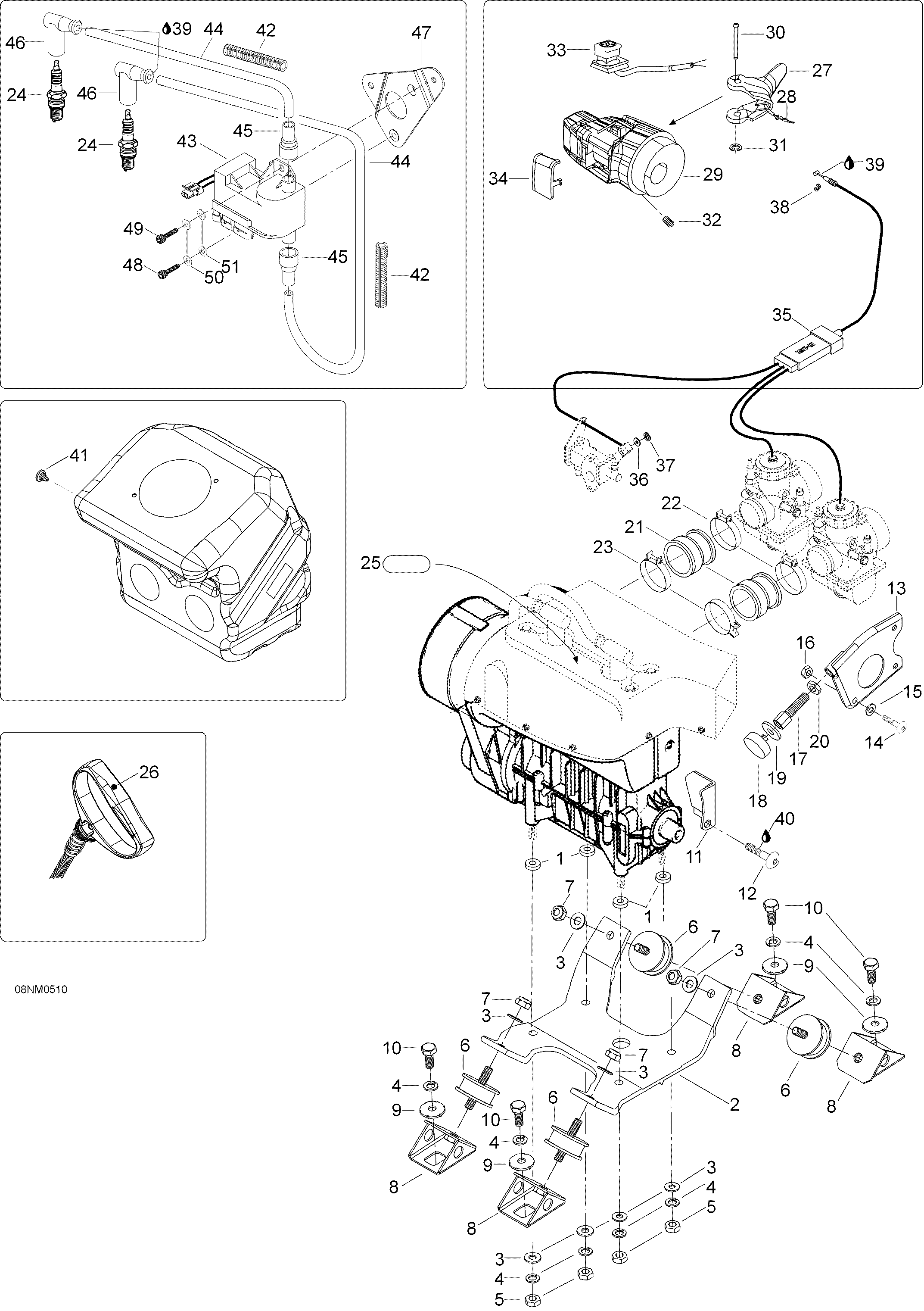

01- Engine And Engine Support, 400RC для BRP Lynx Enduro 400RC - 2005
-
№АртикулНазвание
-
1512051800 Washer. Enduro 400 R.C.Washer. Enduro 400 R.C.
-
2512059397 Engine supportEngine support
-
320005 Washer A10,5. Enduro 400 R.C.Washer A10,5. Enduro 400 R.C.
-
420113 Spring washer M10Spring washer M10
-
533004 Nut M10Nut M10
-
6570128700 RubberRubber
-
733082 Elastic stop nut M10Elastic stop nut M10
-
8512050900 Engine supportEngine support
-
9512056700 Lock washerLock washer
-
1040040 Hex. screw M10 x 25Hex. screw M10 x 25
-
11512059399 Support plate. Enduro 400 R.C.Support plate. Enduro 400 R.C.
-
1240882 Torx-screw M8 x 20. Enduro 400 R.C.Torx-screw M8 x 20. Enduro 400 R.C.
-
13512059446 Support plateSupport plate
-
1440344 Socket head screw M8 x 25Socket head screw M8 x 25
-
1520004 Washer A8,4Washer A8,4
-
1633011 Elastic stop nut M8Elastic stop nut M8
-
17512058800 Stopper screwStopper screw
-
18512059056 StopperStopper
-
195147306 Washer. Enduro 400 R.C.Washer. Enduro 400 R.C.
-
2033218 Jam nut M12Jam nut M12
-
21512059396 Adaptor. Enduro 400 R.C.Adaptor. Enduro 400 R.C.
-
22408803800 Clamp. Enduro 400 R.C.Clamp. Enduro 400 R.C.
-
23414532700 Clamp. Enduro 400 R.C.Clamp. Enduro 400 R.C.
-
24414961100 Spark plug , BR 9 ESSpark plug , BR 9 ES
-
25516000986 Decal, spark plugDecal, spark plug
-
26572084400 GripGrip
-
27512059624 Throttle handle. Enduro 400 R.C.Throttle handle. Enduro 400 R.C.
-
2842603 ConnectorConnector
-
29572100900 Throttle handle housingThrottle handle housing
-
29512059489 Throttle handle housingThrottle handle housing
-
30414438700 PinPin
-
31414439000 CirclipCirclip
-
32414440800 Screw M8 x 10Screw M8 x 10
-
33515175410 Switch killSwitch kill
-
34572100901 CoverCover
-
35512059625 Throttle cableThrottle cable
-
36414753300 WasherWasher
-
37414753500 Circlip. Enduro 400 R.C.Circlip. Enduro 400 R.C.
-
3831038 CirclipCirclip
-
39293550004 Dielectric-rasva, 150gDielectric-rasva, 150g
-
40293800005 Loctite 271, 10mlLoctite 271, 10ml
-
41572051500 Plug. Enduro 400 R.C.Plug. Enduro 400 R.C.
-
4228012 TubingTubing
-
43512059518 Electronic box ass'y. Sisaltaa osat 43-46, Enduro 400 R.C.Electronic box ass'y. Sisaltaa osat 43-46, Enduro 400 R.C.
-
44278001268 Ignition cableIgnition cable
-
45515174900 Protection capProtection cap
-
46278000237 Spark plug connectorSpark plug connector
-
47512059494 BracketBracket
-
4840364 Socket head screw M6 x 16Socket head screw M6 x 16
-
4940052 Socket head screw M6 x 20Socket head screw M6 x 20
-
5020052 Lock washer A6Lock washer A6
-
5120003 Washer A6,4Washer A6,4
