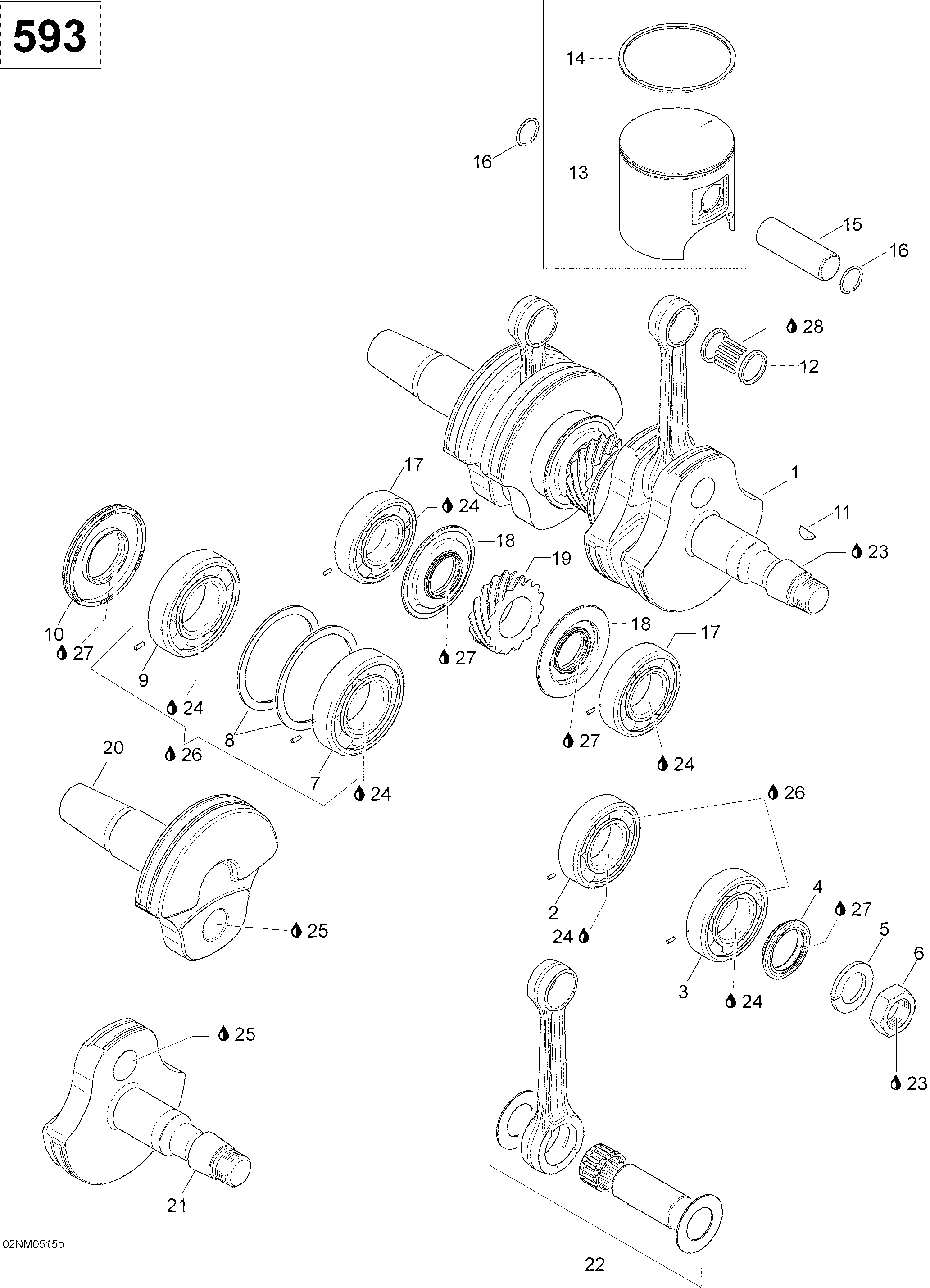

01- Crankshaft, 593 для BRP Lynx Ranger 600 - 2005
-
№АртикулНазвание
-
1420888759 Crankshaft ass'y (600). Includes 1 to 11Crankshaft ass'y (600). Includes 1 to 11
-
2420832596 Ball bearing 6206Ball bearing 6206
-
3420832590 Ball bearing 6206Ball bearing 6206
-
4420931792 Oil sealOil seal
-
5420945759 Lock washer 22 mmLock washer 22 mm
-
6420842230 Hex. nut M22Hex. nut M22
-
7420832638 Ball bearing 6207Ball bearing 6207
-
8420927710 Retaining diskRetaining disk
-
9420832575 Ball bearing 6207Ball bearing 6207
-
10420831950 Oil sealOil seal
-
11420246015 Woodruff-keyWoodruff-key
-
12420832425 Needle bearingNeedle bearing
-
13420889170 Piston ass'y (1 Ring 75.88 mm). Includes 13 to 14Piston ass'y (1 Ring 75.88 mm). Includes 13 to 14
-
13420889171 Oversize piston ass'y (1 Ring 76.13 mm). Includes 13 to 14Oversize piston ass'y (1 Ring 76.13 mm). Includes 13 to 14
-
14420815155 Semi-trapez ring 76 mmSemi-trapez ring 76 mm
-
14420815156 Oversize semi-trapez ring 76.25Oversize semi-trapez ring 76.25
-
15420916410 Piston pinPiston pin
-
16420845106 Piston circlipPiston circlip
-
17420832590 Ball bearing 6206Ball bearing 6206
-
18420931940 Oil sealOil seal
-
19420834350 Central gear 15 TeethCentral gear 15 Teeth
-
20420818664 Crankshaft (PTO-side)Crankshaft (PTO-side)
-
21420818693 Crankshaft (MAG-side)Crankshaft (MAG-side)
-
22420888753 Rod repair kit (MAG side)Rod repair kit (MAG side)
-
22420888754 Rod repair kit (PTO side)Rod repair kit (PTO side)
-
23293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
24293800023 Loctite 767, Antiseize lubricant, 454 gLoctite 767, Antiseize lubricant, 454 g
-
25413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
26413802900 Klueber Isoflex grease, 400 gKlueber Isoflex grease, 400 g
-
27420899271 Grease Petamo Ghy 133N, 400 gGrease Petamo Ghy 133N, 400 g
-
28413802900 Injection oil (12 x 1 Liter)Injection oil (12 x 1 Liter)
