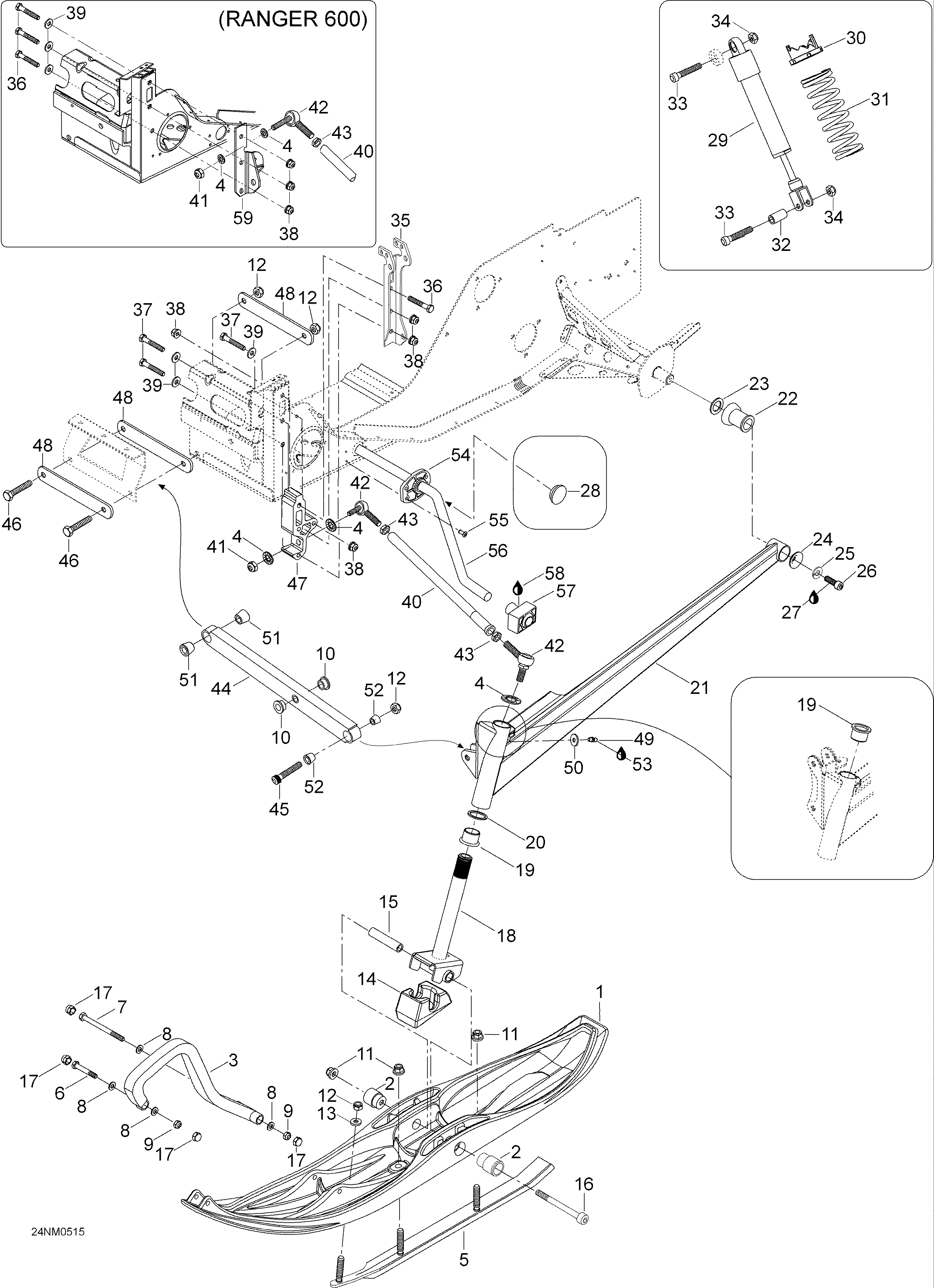

07- Front Suspension And Ski для BRP Lynx Ranger 600 - 2005
-
№АртикулНазвание
-
1605148440 ADJ-ski. Includes 1 to 2ADJ-ski. Includes 1 to 2
-
2605348392 SleeveSleeve
-
3505070963 HandleHandle
-
420074 Lock washer M12Lock washer M12
-
5619400006 Runner kit 3 carbidesRunner kit 3 carbides
-
5619400005 Runner kit 4 carbidesRunner kit 4 carbides
-
640009 Hex. screw M8 x 50Hex. screw M8 x 50
-
740264 Hex. screw M8 x 90Hex. screw M8 x 90
-
820004 Washer A8,4Washer A8,4
-
933011 Elastic stop nut M8Elastic stop nut M8
-
1031029 CushionCushion
-
1133074 CushionCushion
-
1233012 Elastic stop nut M10Elastic stop nut M10
-
1320028 WasherWasher
-
14605351977 Rubber damper. Ranger 550Rubber damper. Ranger 550
-
14605348458 Rubber damper. Ranger 600Rubber damper. Ranger 600
-
15506133300 SleeveSleeve
-
1640225 Socket head screw M10 x 140Socket head screw M10 x 140
-
1728056 CapCap
-
185245502 Ski leg. Ranger 550Ski leg. Ranger 550
-
18605248927 Ski leg. Ranger 600Ski leg. Ranger 600
-
19505070003 CushionCushion
-
20505070004 WasherWasher
-
21605248970 R.H. Swing arm (Full Moon)R.H. Swing arm (Full Moon)
-
21605248969 L.H. Swing arm (Full Moon)L.H. Swing arm (Full Moon)
-
22570062200 Rubber damperRubber damper
-
23503146700 WasherWasher
-
24506079600 CupCup
-
2520014 Lock washer A8Lock washer A8
-
2640289 Socket head screw M8 x 25Socket head screw M8 x 25
-
27293800060 Loctite 243, 10mlLoctite 243, 10ml
-
28414916600 PlugPlug
-
2923147 Shock. Includes 28 to 30Shock. Includes 28 to 30
-
30503183700 Adjusting camAdjusting cam
-
325441433 SleeveSleeve
-
3340837 Socket head screw M10 x 55Socket head screw M10 x 55
-
3433012 Elastic stop nut M10Elastic stop nut M10
-
355247702 Shock bracket. Ranger 550Shock bracket. Ranger 550
-
355245488 L.H. Shock bracket. Ranger 600L.H. Shock bracket. Ranger 600
-
355246395 R.H. Shock bracket. Ranger 600R.H. Shock bracket. Ranger 600
-
3640010 Hex. screw M8 x 55. Ranger 550Hex. screw M8 x 55. Ranger 550
-
3640010 Hex. screw M8 x 55. Ranger 600Hex. screw M8 x 55. Ranger 600
-
3740264 Hex. screw M8 x 90Hex. screw M8 x 90
-
3833201 Elastic flanged nut M8. Ranger 550Elastic flanged nut M8. Ranger 550
-
3833201 Elastic flanged nut M8. Ranger 600Elastic flanged nut M8. Ranger 600
-
3920104 Washer, hardened M8. Ranger 550Washer, hardened M8. Ranger 550
-
3920104 Washer, hardened M8. Ranger 600Washer, hardened M8. Ranger 600
-
40605348813 Upper arm. Ranger 550Upper arm. Ranger 550
-
405346122 Upper arm. Ranger 600Upper arm. Ranger 600
-
4133087 Nut M12Nut M12
-
4231092 Ball jointBall joint
-
4333048 Nut M12Nut M12
-
44605251494 Lower arm ass'y (Full Moon). Ranger 550Lower arm ass'y (Full Moon). Ranger 550
-
44605248971 Lower arm ass'y (Full Moon). Ranger 600Lower arm ass'y (Full Moon). Ranger 600
-
4540858 Socket head screw M10 x 50Socket head screw M10 x 50
-
4640814 Hex. screw M10 x 110Hex. screw M10 x 110
-
475447559 L.H. Upper bracket. Ranger 550L.H. Upper bracket. Ranger 550
-
475447566 R.H. Upper bracket. Ranger 550R.H. Upper bracket. Ranger 550
-
485346112 Support plateSupport plate
-
4934011 Grease fittingGrease fitting
-
5020007 Washer A6,4Washer A6,4
-
515447769 SleeveSleeve
-
525447770 SleeveSleeve
-
53293550033 Synthetic greaseSynthetic grease
-
54505070191 Sleeve. Ranger 600Sleeve. Ranger 600
-
5536009 Rivet. Ranger 600Rivet. Ranger 600
-
565246797 Stabilizator. Ranger 600Stabilizator. Ranger 600
-
57505070117 Block-joint ball. Ranger 600Block-joint ball. Ranger 600
-
58413711500 Synthetic greaseSynthetic grease
-
595348063 L.H. Bnracket. Ranger 600L.H. Bnracket. Ranger 600
-
595348064 R.H. Bnracket. Ranger 600R.H. Bnracket. Ranger 600
