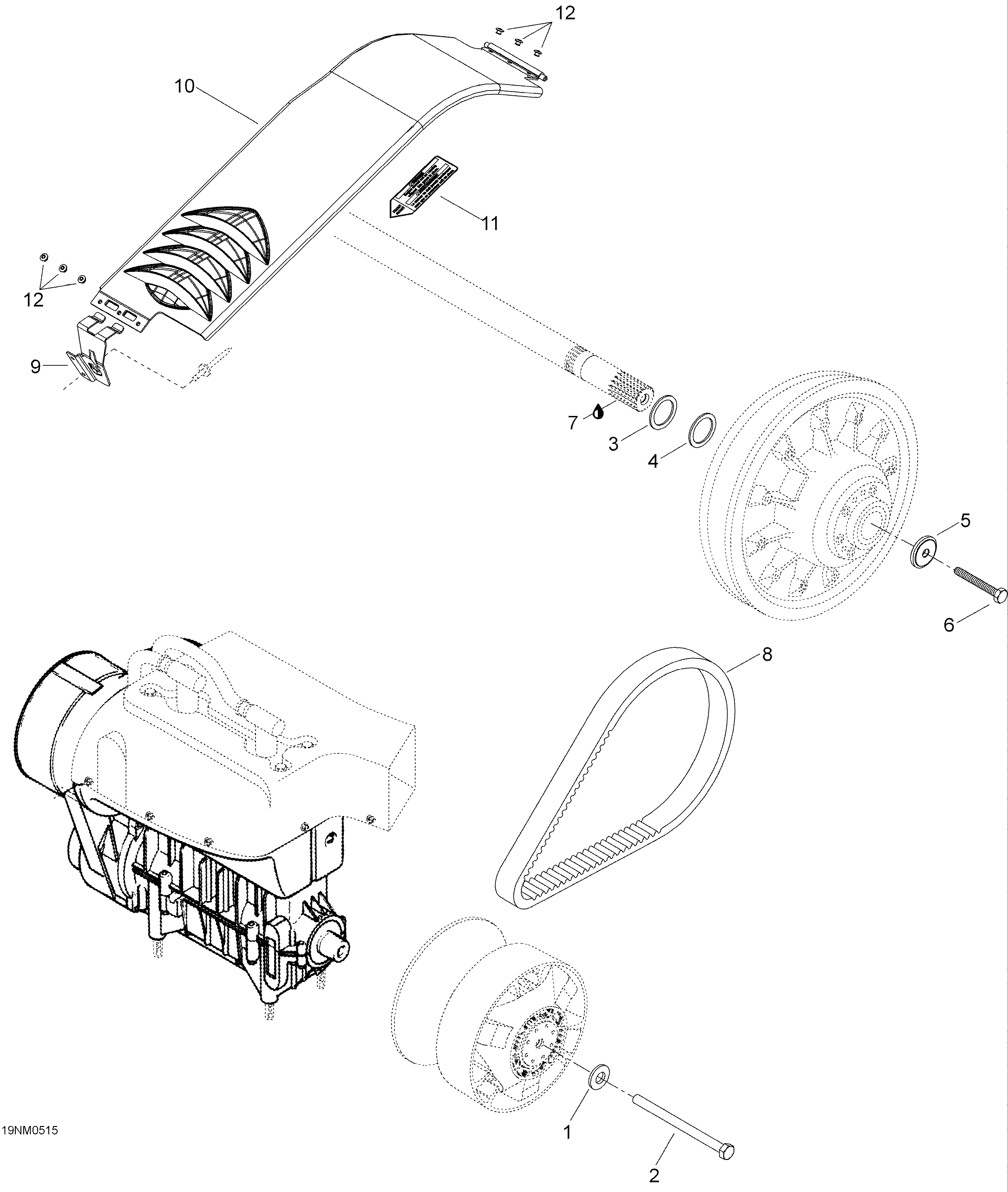

05- Pulley System для BRP Lynx Ranger 600 - 2005
-
№АртикулНазвание
-
120090 Washer. Ranger 550Washer. Ranger 550
-
120110 Washer M14. Ranger 600Washer M14. Ranger 600
-
2417113800 Bolt. Ranger 550Bolt. Ranger 550
-
2417120000 Bolt M14. Ranger 600Bolt M14. Ranger 600
-
3417300054 ShimShim
-
4417300055 ShimShim
-
5517302322 WasherWasher
-
640089 Hex. screw M8 x 75Hex. screw M8 x 75
-
7293800070 Loctite 767, 8ozLoctite 767, 8oz
-
8415060600 Drive belt. Ranger 550Drive belt. Ranger 550
-
8414860700 Drive belt. Ranger 600Drive belt. Ranger 600
-
9417300172 Bracket. Ranger 550Bracket. Ranger 550
-
9417300001 Bracket. Ranger 600Bracket. Ranger 600
-
10417300173 Belt quard ass'y. Includes 10 to 12Belt quard ass'y. Includes 10 to 12
-
11516001190 Warning labelWarning label
-
12390402200 RivetRivet
