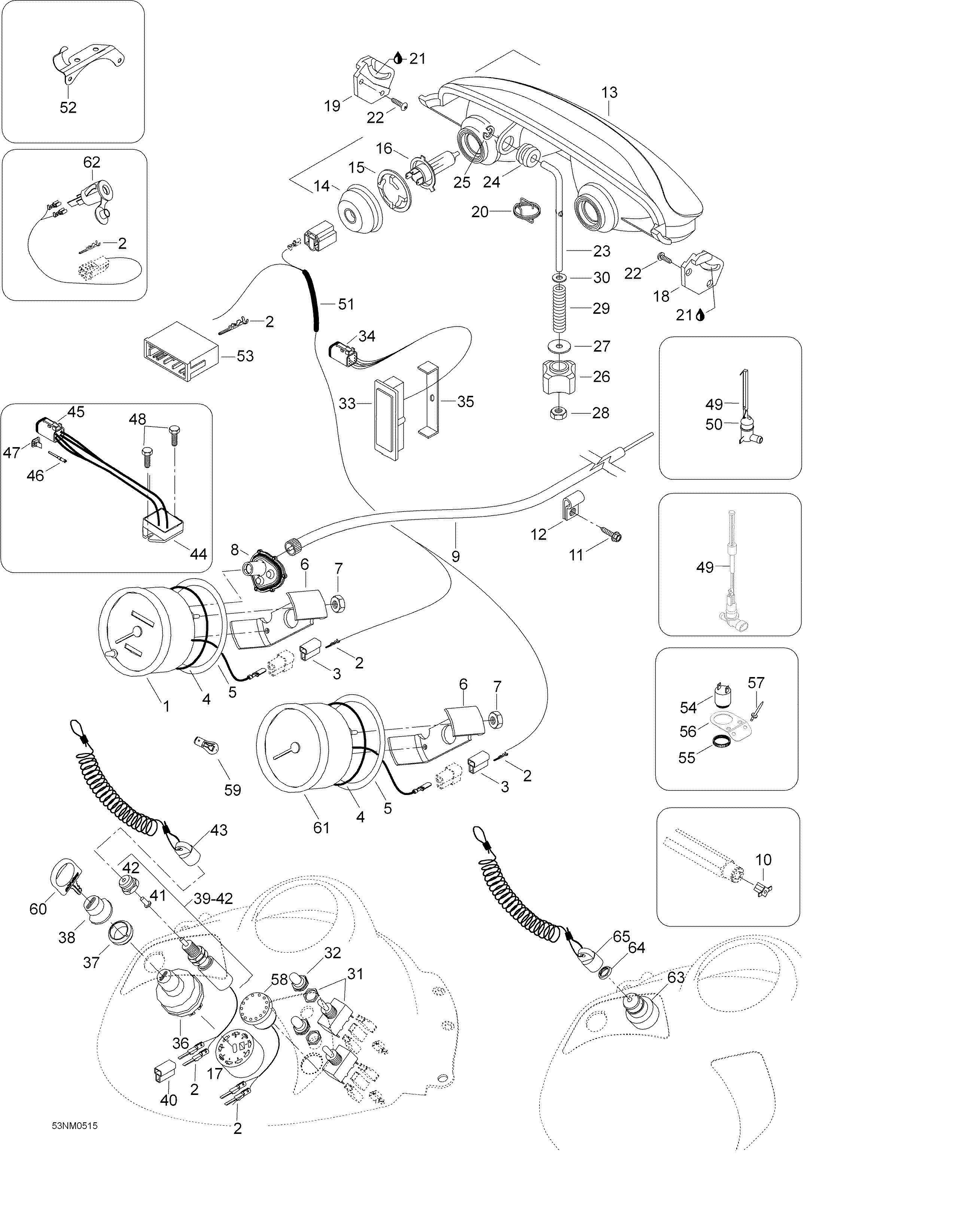

10- Electrical Acessories для BRP Lynx Ranger 600 - 2005
-
№АртикулНазвание
-
1515175335 Speedometer, whiteSpeedometer, white
-
242603 Male terminalMale terminal
-
342608 Connector housing (2 circuits)Connector housing (2 circuits)
-
4414807100 O-ring. Ranger 550O-ring. Ranger 550
-
4414807100 O-ring. Ranger 600O-ring. Ranger 600
-
5517258500 Washer. Ranger 550Washer. Ranger 550
-
5517258500 Washer. Ranger 600Washer. Ranger 600
-
6414806500 Holder. Ranger 550Holder. Ranger 550
-
6414806500 Holder. Ranger 600Holder. Ranger 600
-
733062 Elastic flanged nut M5. Ranger 550Elastic flanged nut M5. Ranger 550
-
733062 Elastic flanged nut M5. Ranger 600Elastic flanged nut M5. Ranger 600
-
8515175400 Drive angleDrive angle
-
9415101500 Speedometer cableSpeedometer cable
-
10572010100 Insert-speedoInsert-speedo
-
1140870 ScrewScrew
-
1227025 ClampClamp
-
13515175909 Halogen headlamp ass'y. Includes 13 to 16Halogen headlamp ass'y. Includes 13 to 16
-
14410607100 CoverCover
-
15410608300 Bulb holderBulb holder
-
16410504401 Halogen bulb 60/55WHalogen bulb 60/55W
-
17572150700 Ignition blockIgnition block
-
18517289300 R.H. Headlamp supportR.H. Headlamp support
-
19517289400 L.H. headlamp supportL.H. headlamp support
-
205447238 SpringSpring
-
21413707500 Grease, 400gGrease, 400g
-
2240177 Screw B4,8 x 16Screw B4,8 x 16
-
23517295800 Adjuster RodAdjuster Rod
-
24415100800 GrommetGrommet
-
25732610072 Nut PushNut Push
-
26515175548 HandleHandle
-
2720038 WasherWasher
-
2833010 Elastic stop nut M6Elastic stop nut M6
-
29415100600 SpringSpring
-
3020003 Washer A6,4Washer A6,4
-
31410107300 SwitchSwitch
-
32515175281 Rubber cover for switchRubber cover for switch
-
335348029 Signal lamp assy. Ranger 550Signal lamp assy. Ranger 550
-
335348028 Signal lamp assy. Ranger 600Signal lamp assy. Ranger 600
-
3442622 male connector housing (15 circuits)male connector housing (15 circuits)
-
355442157 Fit plateFit plate
-
3642019 Ignition switchIgnition switch
-
37410112100 NutNut
-
38570013700 Boot switchBoot switch
-
39515175571 Emergency switchEmergency switch
-
4042608 Connector housing (2 circuits)Connector housing (2 circuits)
-
41570151100 CoverCover
-
42515145900 NutNut
-
43515151500 Emergency switch lockEmergency switch lock
-
44515175656 Voltage regulator. Includes 44 to 47Voltage regulator. Includes 44 to 47
-
45278001477 Connector housingConnector housing
-
46515175568 ConnectorConnector
-
47278001478 LasLas
-
4840322 Self tapping screw M6 x 16Self tapping screw M6 x 16
-
49414681800 Sensor. Ranger 550Sensor. Ranger 550
-
49515176016 Sensor. Ranger 600Sensor. Ranger 600
-
50414681900 Float. Ranger 550Float. Ranger 550
-
515347991 Wiring harness, headlamp. Ranger 550Wiring harness, headlamp. Ranger 550
-
515347990 Wiring harness, headlampWiring harness, headlamp
-
52515175254 Cable supportCable support
-
5342617 male connector housing (15 circuits)male connector housing (15 circuits)
-
54515176035 DC-hornDC-horn
-
55414805101 Ring nutRing nut
-
565447941 BracketBracket
-
5736005 RivetRivet
-
58415101200 Reverse buttonReverse button
-
59410504200 Instrumentation bulpInstrumentation bulp
-
60414991700 Blank keyBlank key
-
61515175341 Tachometer. Ranger 600Tachometer. Ranger 600
-
6242026 Flush mounted socket1Flush mounted socket1
-
63515175145 D.E.S.S. Switch. Ranger 600D.E.S.S. Switch. Ranger 600
-
64278000508 Nut. Ranger 600Nut. Ranger 600
-
65515166900 Cap ass'y, DESS. Ranger 600Cap ass'y, DESS. Ranger 600
