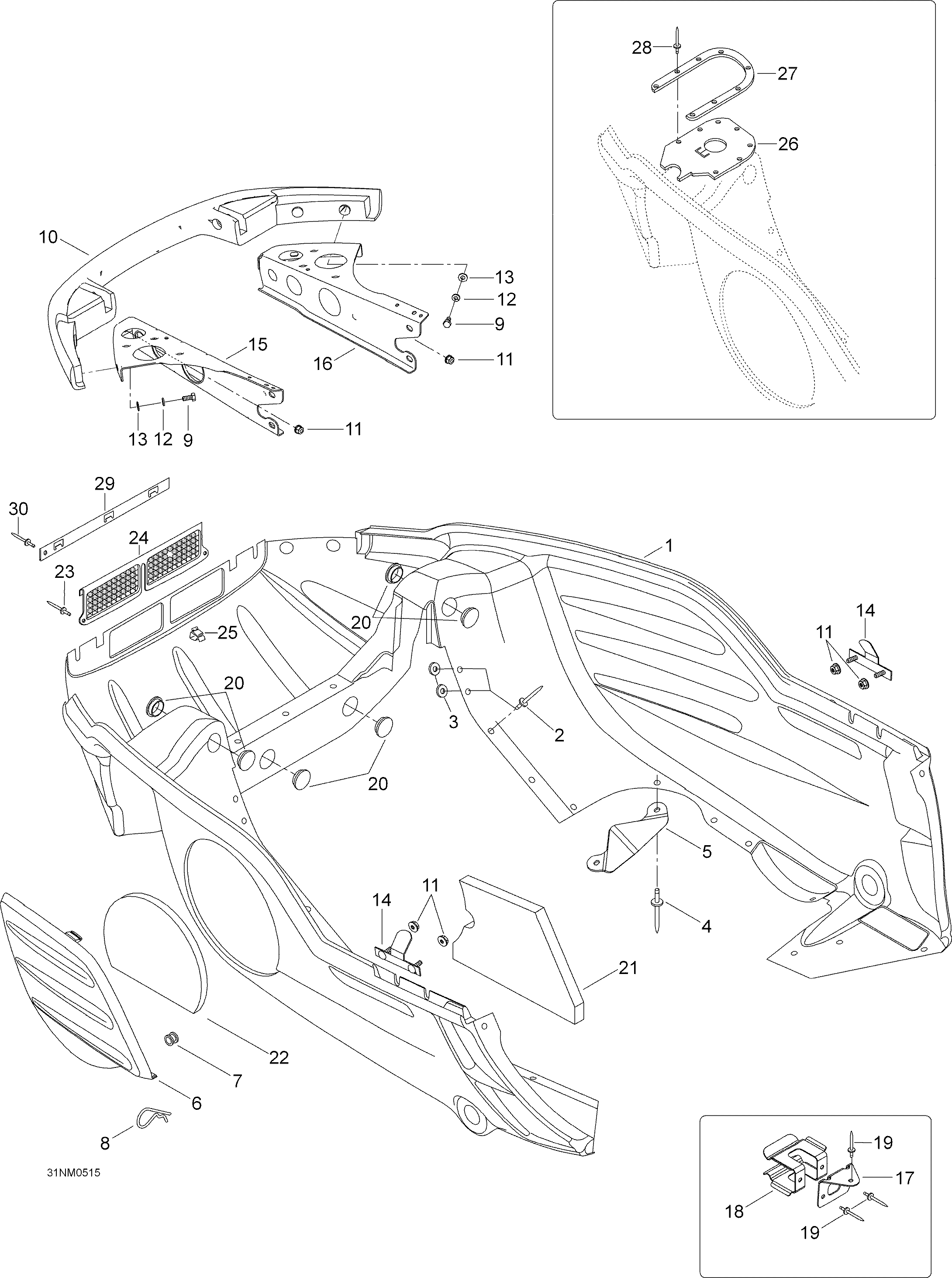

09- Bottom Pan для BRP Lynx Ranger 600 - 2005
-
№АртикулНазвание
-
1605150216 Bottom pan, Black. Ranger 550Bottom pan, Black. Ranger 550
-
1605352478 Bottom pan, Black. Ranger 600Bottom pan, Black. Ranger 600
-
236037 RivetRivet
-
320008 Washer A5,3Washer A5,3
-
436087 RivetRivet
-
5502006563 Deflector snowDeflector snow
-
6502006506 Bottom pan doorBottom pan door
-
7414036300 GrommetGrommet
-
8414575600 PinPin
-
940029 Hex. screw M6 x 16Hex. screw M6 x 16
-
10502006719 Bumper, blackBumper, black
-
1133200 Elastic flange nut M6Elastic flange nut M6
-
1220052 Lock washer A6Lock washer A6
-
1320009 Washer A6,4Washer A6,4
-
14502006645 BracketBracket
-
15502006597 L.H. SupportL.H. Support
-
16502006596 R.H. SupportR.H. Support
-
17502006599 Belt supportBelt support
-
18517281905 Belt supportBelt support
-
1936489 RivetRivet
-
20414916600 Nylon capNylon cap
-
21605250270 Bottom foamBottom foam
-
22605350269 Bottom pan door foamBottom pan door foam
-
2336036 RivetRivet
-
24502006697 GrillGrill
-
25517302785 ClipClip
-
26605350666 Grommet. Ranger 550Grommet. Ranger 550
-
605350511 Grommet. Ranger 600Grommet. Ranger 600
-
27605350667 Bracket. Ranger 550Bracket. Ranger 550
-
605350668 Bracket. Ranger 600Bracket. Ranger 600
-
2836071 RivetRivet
-
29502006647 Support plate. Ranger 600Support plate. Ranger 600
-
3036005 Rivet. Ranger 600Rivet. Ranger 600
