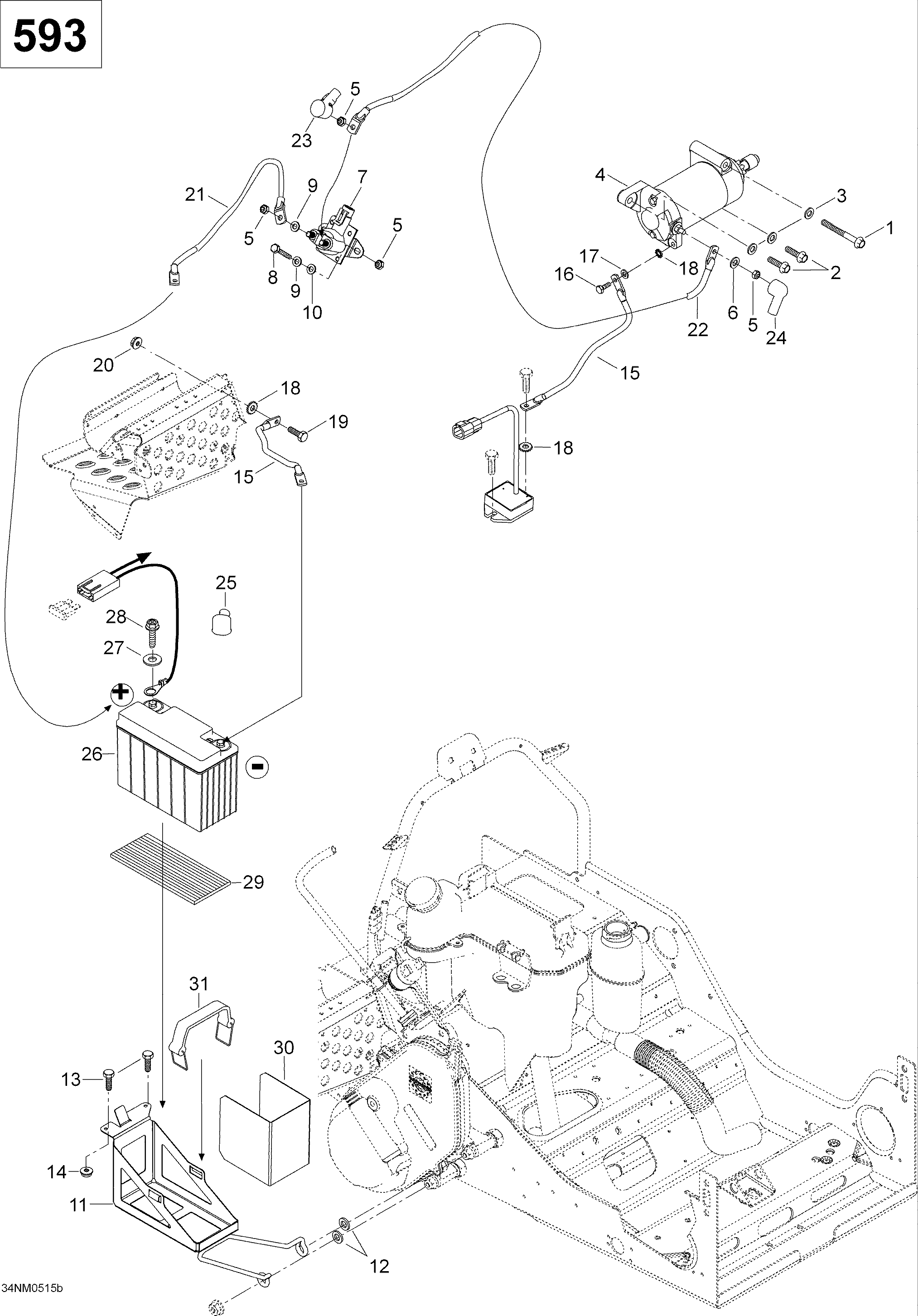

10- Battery And Starter, 600 для BRP Lynx Ranger 600 - 2005
-
№АртикулНазвание
-
1207587544 Screw M8 x 75Screw M8 x 75
-
2207583044 Screw M8 x 30Screw M8 x 30
-
3250200008 WasherWasher
-
4515176003 StarterStarter
-
533010 Elastic stop nut M6Elastic stop nut M6
-
620003 Washer A6,4Washer A6,4
-
7278001766 RelayRelay
-
840030 Hex. screw M6 x 20Hex. screw M6 x 20
-
920052 Lock washer A6Lock washer A6
-
1020009 Washer A6,4Washer A6,4
-
11515175848 BracketBracket
-
1220005 Washer A10,5Washer A10,5
-
1340247 Screw M5 x 16Screw M5 x 16
-
1433062 Elastic flanged nut M5Elastic flanged nut M5
-
15515175483 Ground wireGround wire
-
16207361644 Hex. screw M6 x 16Hex. screw M6 x 16
-
1720003 Washer A6,4Washer A6,4
-
1820017 Serrated lock washer M6Serrated lock washer M6
-
1940029 Hex. screw M6 x 16Hex. screw M6 x 16
-
2033200 Elastic flanged nut M6Elastic flanged nut M6
-
21
-
22
-
23570151000 Cap protectionCap protection
-
24278000020 Cap protectionCap protection
-
25570064200 Cap protectionCap protection
-
26515175642 Battery. Includes 26 to 28Battery. Includes 26 to 28
-
27391302100 WasherWasher
-
28207161644 Screw M6 x 16Screw M6 x 16
-
295347314 RubberRubber
-
30515175643 heat protectorheat protector
-
31515175475 Battery strapBattery strap
