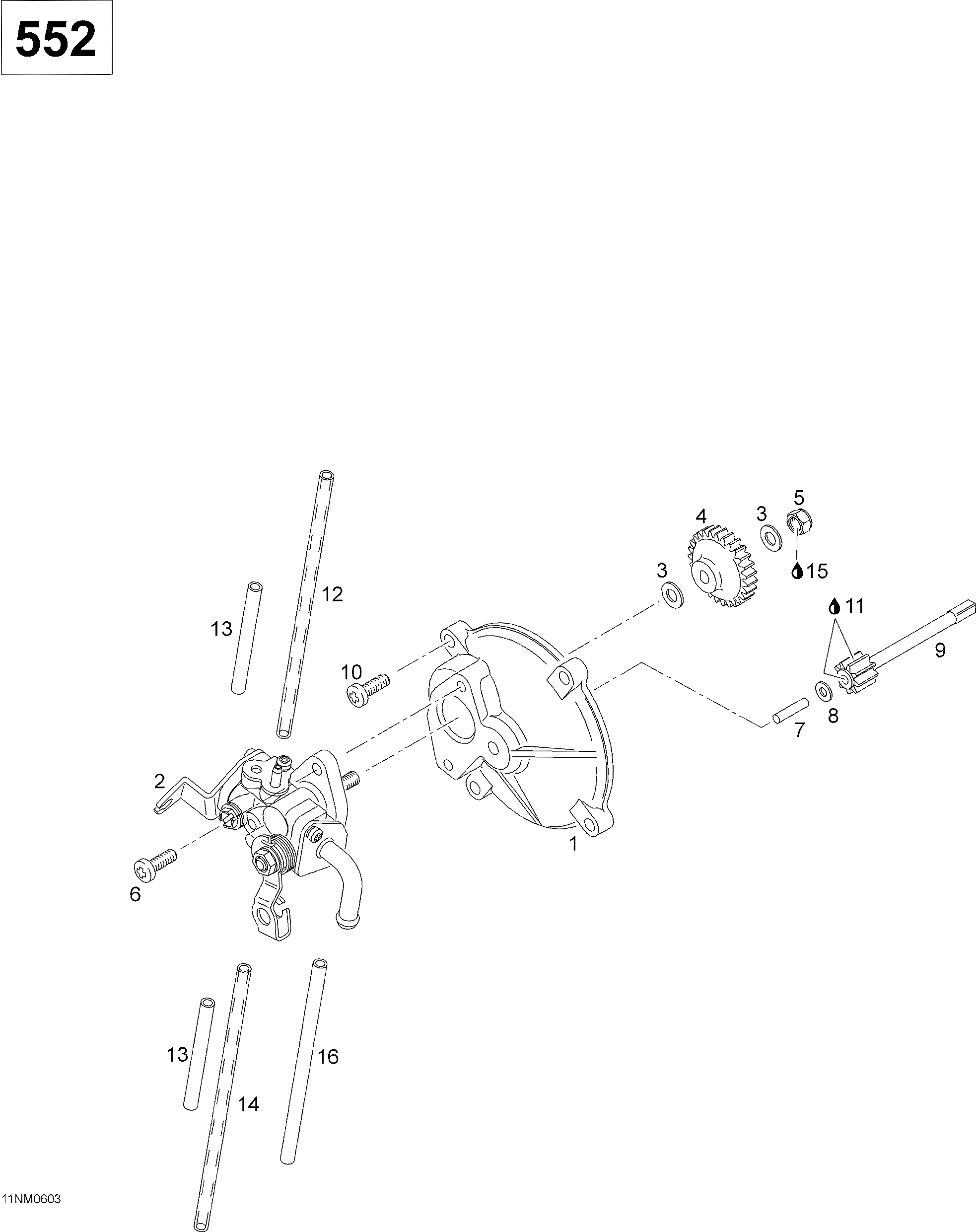

01- Oil Pump для BRP Lynx GLX 6900 - 2006
-
№АртикулНазвание
-
1420910160 Pump mounting flangePump mounting flange
-
2420889070 Oil pump ass'yOil pump ass'y
-
3420927945 Washer 6.2 mmWasher 6.2 mm
-
4420935930 Oil pump gear (27 tooth)Oil pump gear (27 tooth)
-
5232561414 Elastic stop nut M6Elastic stop nut M6
-
6420841971 Self tapping screw M 5.5 x 16Self tapping screw M 5.5 x 16
-
7420832260 Needle pin B 4 x 17.8Needle pin B 4 x 17.8
-
8420244073 Washer 4.3 mmWasher 4.3 mm
-
9420935970 Gear (9-tooth)Gear (9-tooth)
-
10420841976 Self tapping screw M5.5 x 20Self tapping screw M5.5 x 20
-
11413707000 Molykote 111Molykote 111
-
12420660493 MAG side oil line 325 mmMAG side oil line 325 mm
-
13420960725 Isolation line 150 mm (MAG/PTO)Isolation line 150 mm (MAG/PTO)
-
14420660495 PTO side oil line 400 mmPTO side oil line 400 mm
-
15293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
16420460170 Instalation tubingInstalation tubing
