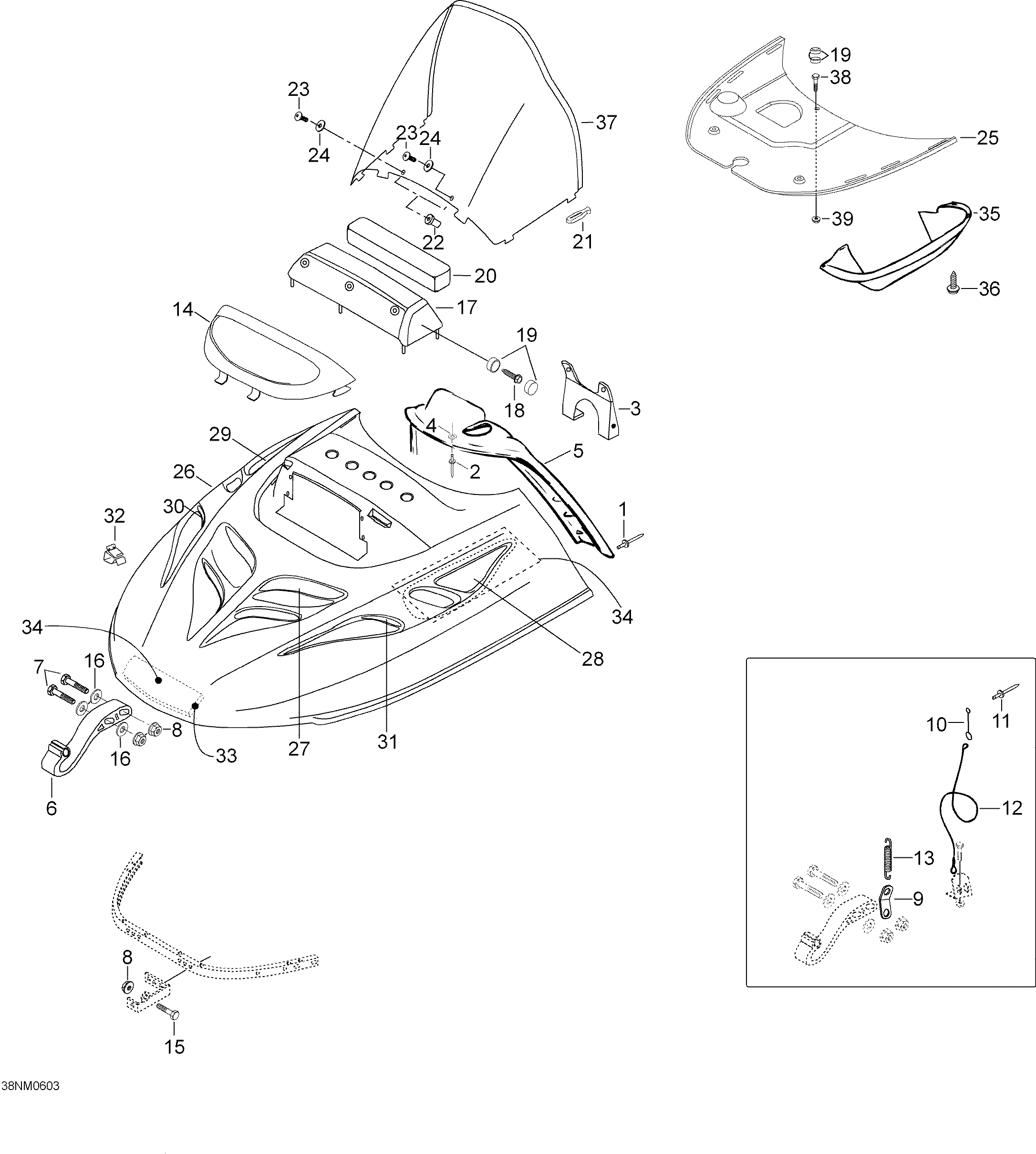

09- Hood для BRP Lynx GLX 6900 - 2006
-
№АртикулНазвание
-
136036 RivetRivet
-
236097 RivetRivet
-
35347795 BracketBracket
-
420062 Washer A4,3Washer A4,3
-
5605148419 Rear hoodRear hood
-
65343075 Hinge weldedHinge welded
-
740193 Screw M6 x 50Screw M6 x 50
-
833200 Elastic flanged nut M6, NylockElastic flanged nut M6, Nylock
-
95443123 Spring plateSpring plate
-
10605449395 Cable keeperCable keeper
-
1136005 RivetRivet
-
125346947 Retainer cableRetainer cable
-
135442675 SpringSpring
-
14605252351 Lamp moldingLamp molding
-
1540084 Screw M6 x 45Screw M6 x 45
-
1620009 Washer A6,4Washer A6,4
-
17605149010 Intake coverIntake cover
-
1840901 Plastofast screw 5 x 20Plastofast screw 5 x 20
-
19282000 Nut protectorNut protector
-
20605349056 FilterFilter
-
21570023800 LatchLatch
-
2228055 Well-nutWell-nut
-
2340156 Screw M5 x 20Screw M5 x 20
-
2420008 Washer A5,3Washer A5,3
-
255246742 Middle deckMiddle deck
-
26605153458 Hood pre ass'y, Velvet-Blue. Includes 26 to 34Hood pre ass'y, Velvet-Blue. Includes 26 to 34
-
275142669 Grill, middleGrill, middle
-
285242670 L.H. upper grillL.H. upper grill
-
295242671 R.H. upper grillR.H. upper grill
-
305242672 R.H. lower grillR.H. lower grill
-
315342673 L.H. lower grillL.H. lower grill
-
32414227300 ClipClip
-
33414631900 Acoustic foamAcoustic foam
-
3444001 Reflective sheet (1000mm x 1000mm)Reflective sheet (1000mm x 1000mm)
-
355146986 Cooling channelCooling channel
-
36414644300 Dart-windshieldDart-windshield
-
375147892 WindscreenWindscreen
-
3840179 Screw M5 x 25Screw M5 x 25
-
3933062 Elastic flanged nut M5Elastic flanged nut M5
