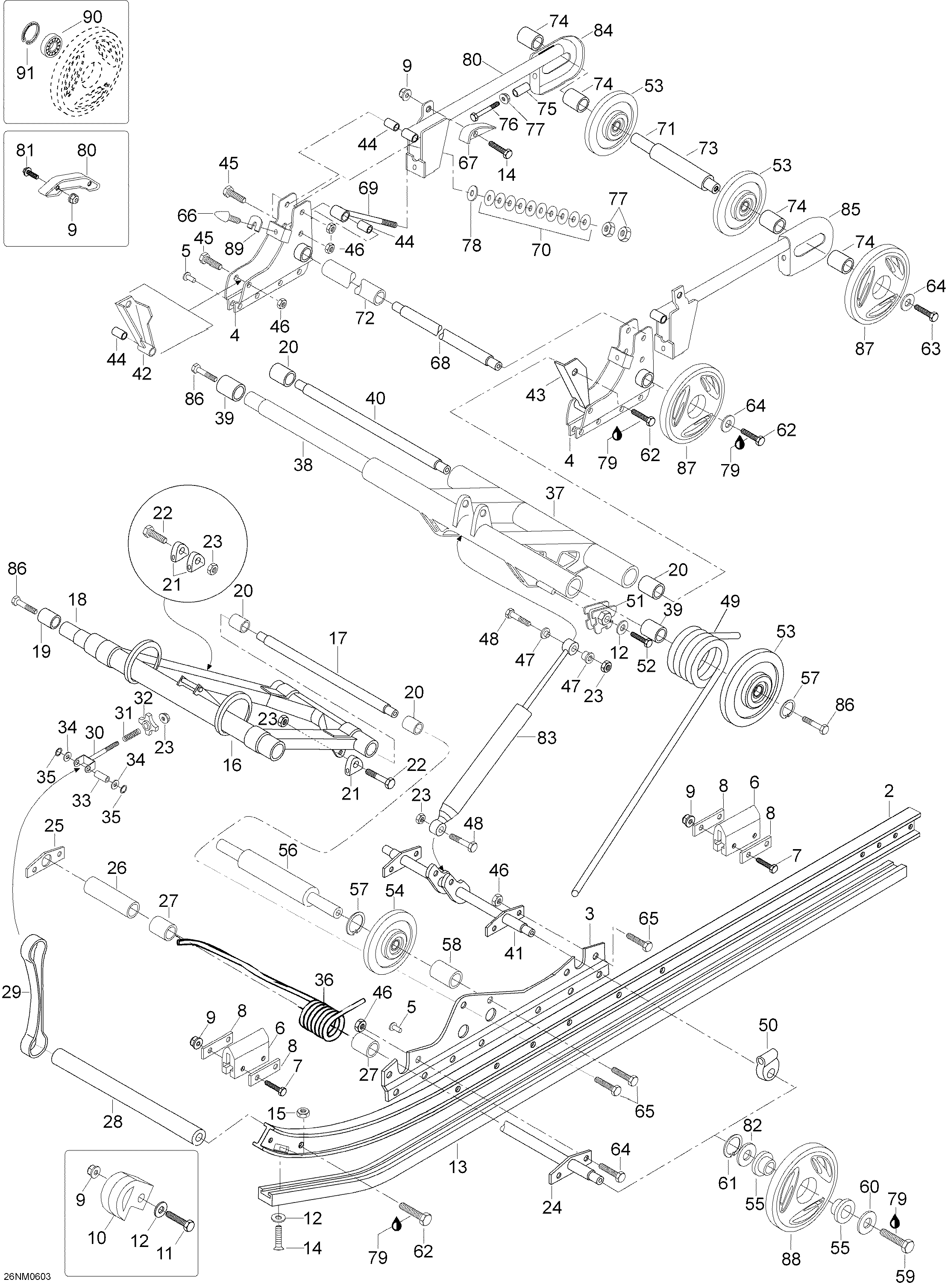

08- Rear Suspension для BRP Lynx GLX 6900 - 2006
-
№АртикулНазвание
-
15142866 R.H. Runner ass'y. Includes 1 to 5R.H. Runner ass'y. Includes 1 to 5
-
15142865 L.H. Runner ass'y. Includes 1 to 5L.H. Runner ass'y. Includes 1 to 5
-
25142864 RunnerRunner
-
35344811 R.H. SupportR.H. Support
-
35344810 L.H. SupportL.H. Support
-
4539673 R.H. SupportR.H. Support
-
4539672 L.H. SupportL.H. Support
-
5544212 RivetRivet
-
6570023100 Rubber stopperRubber stopper
-
740002 Hex. screw M6 x 40Hex. screw M6 x 40
-
8548387 PlatePlate
-
933200 Elastic flanged nut M6, NylockElastic flanged nut M6, Nylock
-
10605348954 Runner protectorRunner protector
-
1140031 Hex. screw M6 x 25Hex. screw M6 x 25
-
1220003 Washer A6,4Washer A6,4
-
13549582 Shoe runnerShoe runner
-
1440030 Hex. screw M6 x 20Hex. screw M6 x 20
-
1533010 Elastic stop nut M6Elastic stop nut M6
-
165242808 Front arm weldedFront arm welded
-
17549695 AxleAxle
-
18542794 AxleAxle
-
19541528 SleeveSleeve
-
20542770 SleeveSleeve
-
21548799 Spring supportSpring support
-
2240014 Hex. screw M10 x 40Hex. screw M10 x 40
-
2333012 Elastic stop nut M10Elastic stop nut M10
-
24539653 AxleAxle
-
25548469 Support plateSupport plate
-
265440313 SleeveSleeve
-
27548841 SleeveSleeve
-
28549718 Cross shaftCross shaft
-
295442604 Stopper strapStopper strap
-
305441643 Eye bolt adjusterEye bolt adjuster
-
31414460600 SpringSpring
-
32572034000 Adjuster knobAdjuster knob
-
335441645 PinPin
-
3420005 Washer A10,5Washer A10,5
-
3541035 CirclipCirclip
-
36538798 R.H. SpringR.H. Spring
-
36538797 L.H. SpringL.H. Spring
-
375343096 Rear arm weldedRear arm welded
-
385340577 Rear cross shaftRear cross shaft
-
3931023 Slide BearingSlide Bearing
-
40549656 ShaftShaft
-
41539655 ShaftShaft
-
425440350 Lever, R.H.Lever, R.H.
-
435440349 Lever, L.H.Lever, L.H.
-
44545758 SleeveSleeve
-
4540008 Hex. screw M8 x 45Hex. screw M8 x 45
-
4633011 Elastic stop nut M8 DIN985 m8 ZneElastic stop nut M8 DIN985 m8 Zne
-
47544417 CushionCushion
-
4840017 Hex. screw M10 x 50Hex. screw M10 x 50
-
49538806 R.H. SpringR.H. Spring
-
49538805 L.H. SpringL.H. Spring
-
505442112 Spring supportSpring support
-
51572030800 L.H. Cam adjusterL.H. Cam adjuster
-
51572030900 R.H. Cam adjusterR.H. Cam adjuster
-
5240114 Hex. screw M6 x 10Hex. screw M6 x 10
-
53503189478 Idler wheel 165Idler wheel 165
-
54503191029 Sisatukipyora 135mm, mustaSisatukipyora 135mm, musta
-
55503189534 CushionCushion
-
56549680 Shaft supportShaft support
-
5731001 CirclipCirclip
-
58546577 SleeveSleeve
-
5940336 Hex. screw M8 x 20Hex. screw M8 x 20
-
60503183100 Washer, hardenedWasher, hardened
-
6131007 CirclipCirclip
-
6240335 Hex. screw M10 x 30Hex. screw M10 x 30
-
6340050 Hex. screw with cap M10 x 35Hex. screw with cap M10 x 35
-
64503183300 Washer, hardenedWasher, hardened
-
6540035 Hex. screw M8 x 16Hex. screw M8 x 16
-
66535455 Rubber stopperRubber stopper
-
67548262 ProtectorProtector
-
68541816 ShaftShaft
-
695440377 Bolt-eye adjusterBolt-eye adjuster
-
7025004 PlatePlate
-
715341979 ShaftShaft
-
72541815 SleeveSleeve
-
735441980 SleeveSleeve
-
745440422 SleeveSleeve
-
75605452332 SleeveSleeve
-
7640239 Hex. screw M10 x 100Hex. screw M10 x 100
-
7733004 Nut M10Nut M10
-
7820011 Washer A10,5Washer A10,5
-
79293800060 Loctite 243, 10ml blueLoctite 243, 10ml blue
-
805343191 ProtectorProtector
-
8140064 Lock screw M6 x 40Lock screw M6 x 40
-
8231091 ShimShim
-
83503189996 ShockShock
-
84605252505 R.H. ExtensionR.H. Extension
-
85605252504 L.H. ExtensionL.H. Extension
-
8640314 Hex. screw M10 x 30Hex. screw M10 x 30
-
87503190856 Idler wheel 165mm/Full MoonIdler wheel 165mm/Full Moon
-
88503190797 Idler wheel 135mm/Full MoonIdler wheel 135mm/Full Moon
-
895440645 Shim plateShim plate
-
90503190795 LaakeriLaakeri
-
9131002 CirclipCirclip
