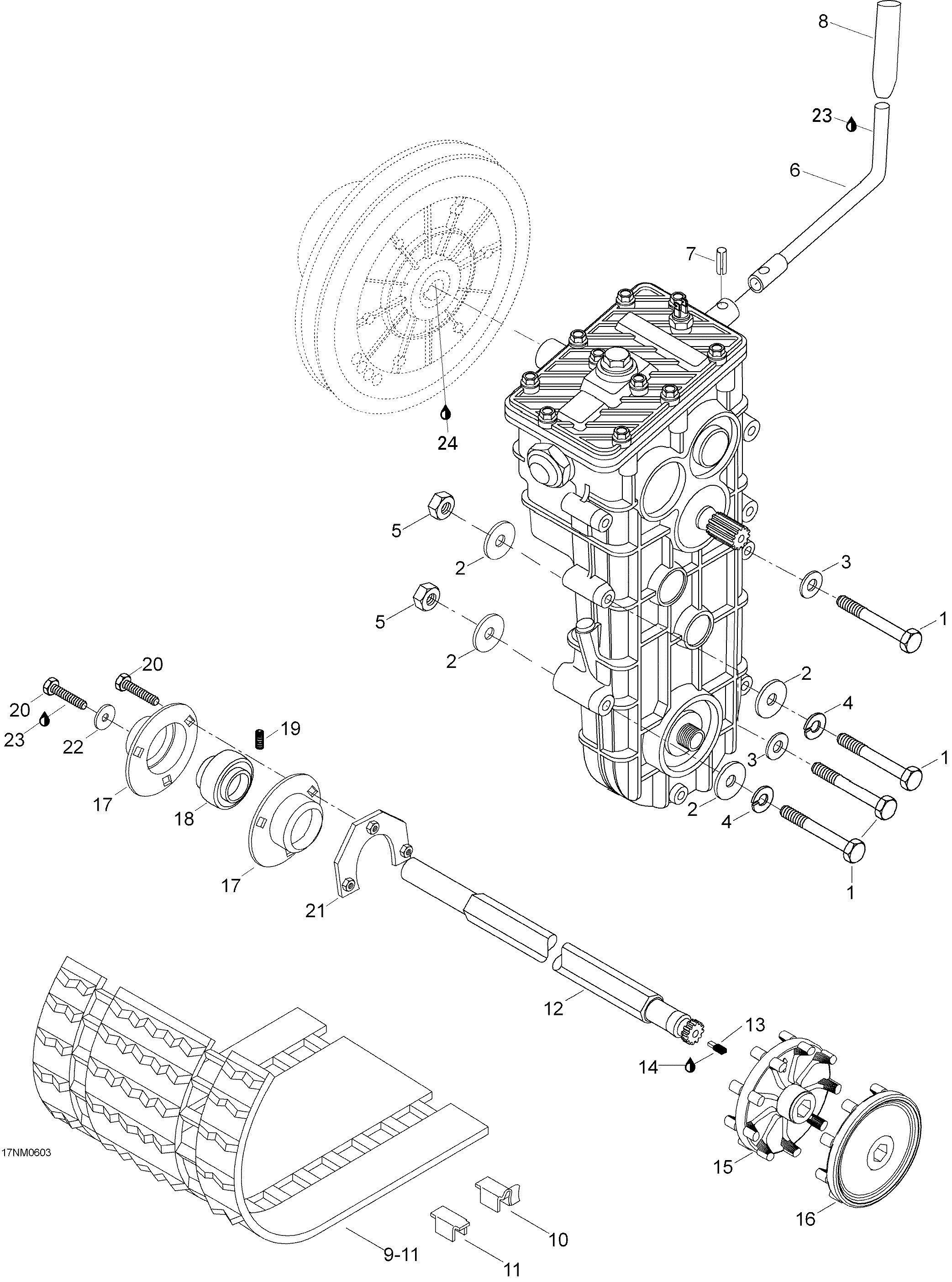

05- Track And Drive Axle для BRP Lynx GLX 6900 - 2006
-
№АртикулНазвание
-
140012 Hex. Screw M8 x 80Hex. Screw M8 x 80
-
220010 Washer A8,4Washer A8,4
-
320004 Washer A8,4Washer A8,4
-
420014 Lock washer A8,4Lock washer A8,4
-
533011 Elastic stop nut M8Elastic stop nut M8
-
65340902 Shift handleShift handle
-
741008 Spring keySpring key
-
828247 ButtonButton
-
913056 Track. Includes 9 to 11Track. Includes 9 to 11
-
105318323 Cleat guideCleat guide
-
115318322 Slide guideSlide guide
-
-5346405 Drive axle ass'y. Includes 12 to 16Drive axle ass'y. Includes 12 to 16
-
125344243 Drive axleDrive axle
-
13542013 Speedometer drive insertSpeedometer drive insert
-
14293800005 Loctite 271, 10mlLoctite 271, 10ml
-
15414931800 SprocketSprocket
-
16415067400 SprocketSprocket
-
17534430 Bearing housing setBearing housing set
-
1831UC205 Bearing. Includes 18 to 19Bearing. Includes 18 to 19
-
1910531 Lock screwLock screw
-
2040336 Hex. screw M8 x 20Hex. screw M8 x 20
-
21546421 Thrust ringThrust ring
-
22546336 WasherWasher
-
23293800060 Loctite 243Loctite 243
-
24293800070 Loctite 767, 8 ozLoctite 767, 8 oz
