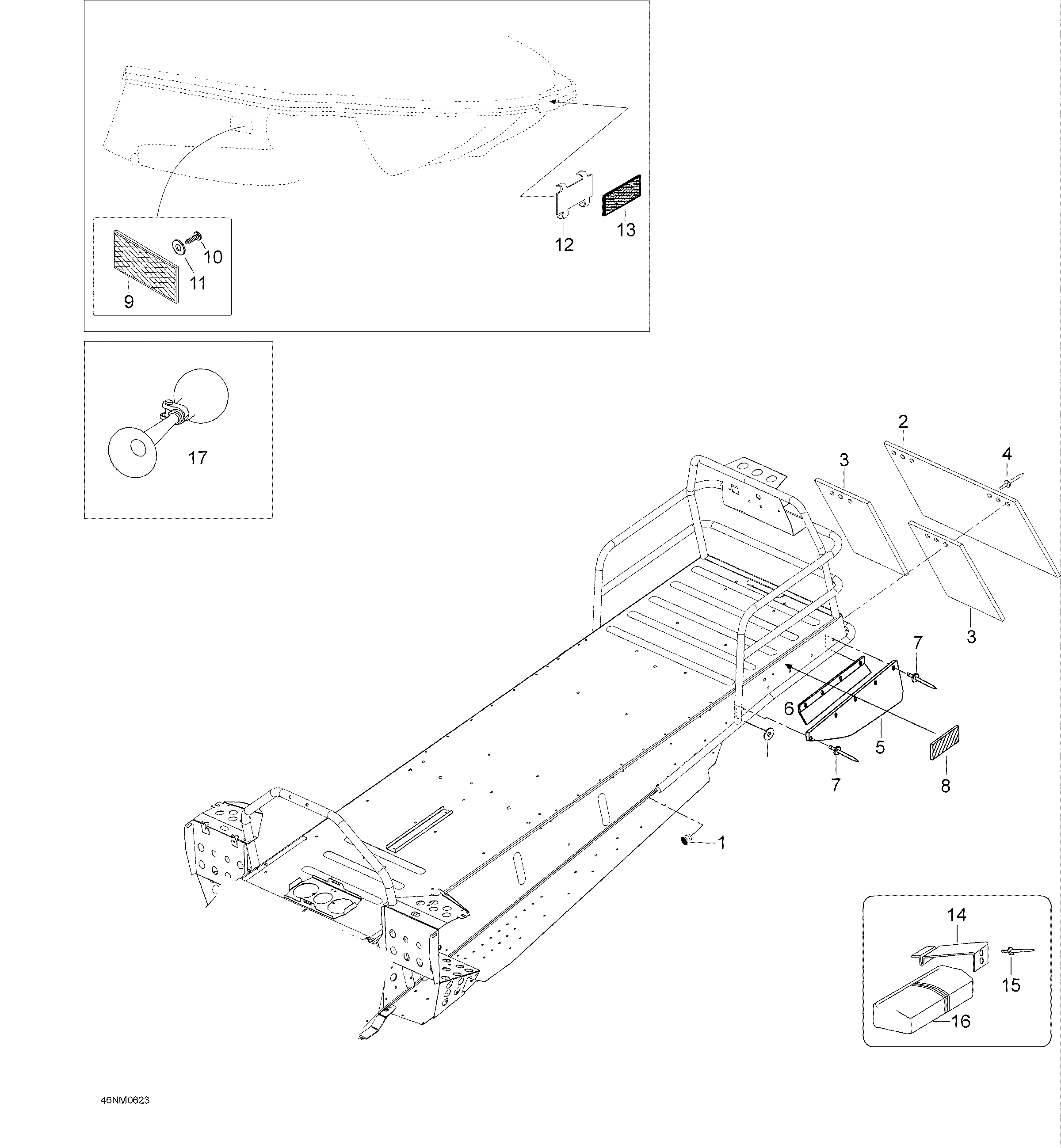

09- Utilities для BRP Lynx GLX 6900 - 2006
-
№АртикулНазвание
-
128136 PluggPlugg
-
25340055 Snow guardSnow guard
-
35341770 SupportSupport
-
436037 RivetRivet
-
55340136 Side snowguardSide snowguard
-
65340532 SupportSupport
-
736097 RivetRivet
-
821121 Reflector, yellowReflector, yellow
-
9414510200 Reflector, AmberReflector, Amber
-
1040070 Screw M5 x 10Screw M5 x 10
-
1120018 Serrated lock washer A5,3Serrated lock washer A5,3
-
125440839 BracketBracket
-
1321060 Reflector, BrightReflector, Bright
-
14539455 Spring plateSpring plate
-
1536005 RivetRivet
-
16605350523 Tool setTool set
-
1721003 BollBoll
