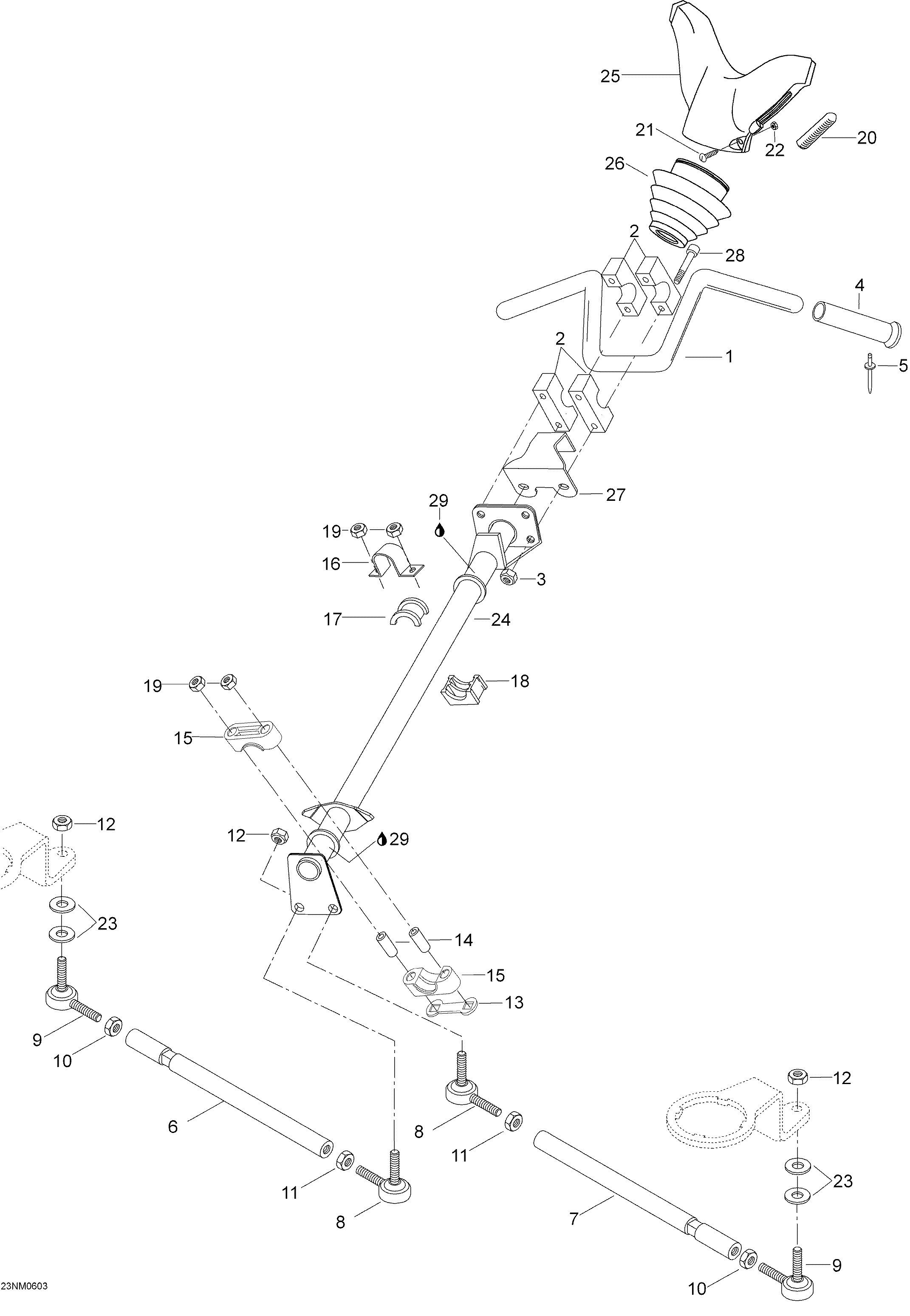

03- Steering System для BRP Lynx GLX 6900 - 2006
-
№АртикулНазвание
-
1529751 Steering handle barSteering handle bar
-
2548448 FasteningFastening
-
333011 Nut elastic M8Nut elastic M8
-
45340464 HandleHandle
-
536005 RivetRivet
-
65441066 Tie rod R.H.Tie rod R.H.
-
7548983 Tie rod L.H.Tie rod L.H.
-
8506151495 L.H. Ball jointL.H. Ball joint
-
9506151492 R.H. Ball jointR.H. Ball joint
-
1033019 Nut M10 R.H.Nut M10 R.H.
-
1133017 Nut M10 L.H.Nut M10 L.H.
-
1233023 Nut elastic M10Nut elastic M10
-
13506150600 Stopper plateStopper plate
-
14506150500 Housing bushingHousing bushing
-
15506150400 Half housingHalf housing
-
165343381 Retaining supportRetaining support
-
17572064500 Half housingHalf housing
-
18572064400 Half housingHalf housing
-
1933201 Nut elastic M8Nut elastic M8
-
20572023900 KeyKey
-
2140156 Screw M5 x 20Screw M5 x 20
-
2233062 Nut M5Nut M5
-
2331014 WasherWasher
-
245245968 Main tubeMain tube
-
25572023800 Steering paddingSteering padding
-
26539033 Steering paddingSteering padding
-
275444196 SupportSupport
-
2840286 Allen screw M8 x 45Allen screw M8 x 45
-
29413711500 Synthetic greaseSynthetic grease
