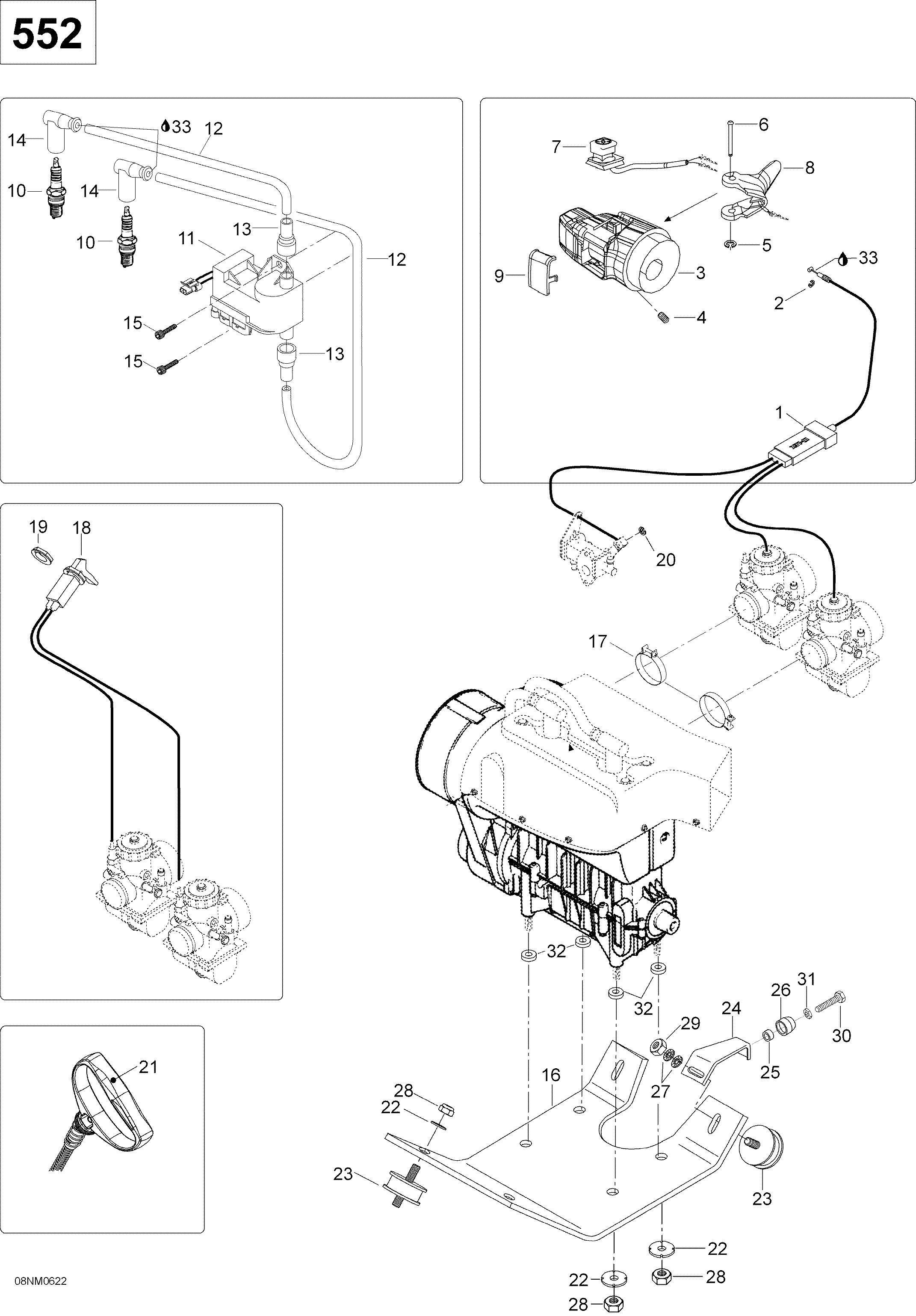

01- Engine And Engine Support для BRP Lynx ST 550 - 2006
-
№АртикулНазвание
-
1605249117 Throttle cableThrottle cable
-
231038 CirclipCirclip
-
3512059489 Throttle handle housingThrottle handle housing
-
4414440800 Screw M8 x 10Screw M8 x 10
-
5414439000 CirclipCirclip
-
6414438700 PinPin
-
7515175410 Switch killSwitch kill
-
8512059144 Throttle handleThrottle handle
-
9572100901 CoverCover
-
10414961100 Spark plug , BR 9 ESSpark plug , BR 9 ES
-
11512059626 Electronic box ass'y. Includes 42 to 45, Safari 400_Safari 400 E. Includes 11 to 14Electronic box ass'y. Includes 42 to 45, Safari 400_Safari 400 E. Includes 11 to 14
-
12278001268 Ignition cableIgnition cable
-
13515174900 Protection capProtection cap
-
14278000237 Spark plug connectorSpark plug connector
-
1540322 Self tapping screw M6 x 16Self tapping screw M6 x 16
-
16605249349 Engine supportEngine support
-
17414532700 ClampClamp
-
18535482 Choke cable. Includes 18 to 19Choke cable. Includes 18 to 19
-
19512059094 Plastic nutPlastic nut
-
2031035 CirclipCirclip
-
21572084400 GripGrip
-
22512056700 Lock washerLock washer
-
23570127700 Rubber damperRubber damper
-
24539902 SupportSupport
-
252846014 Rubber sleeveRubber sleeve
-
26605449240 SleeveSleeve
-
2720068 Lock washer D10Lock washer D10
-
2833012 Elastic stop nutElastic stop nut
-
2933004 Nut M10Nut M10
-
3040121 Hex. screw M8 x 40Hex. screw M8 x 40
-
3133003 Nut M8Nut M8
-
325446347 SleeveSleeve
-
33293550004 Dielectric grease, 150gDielectric grease, 150g
