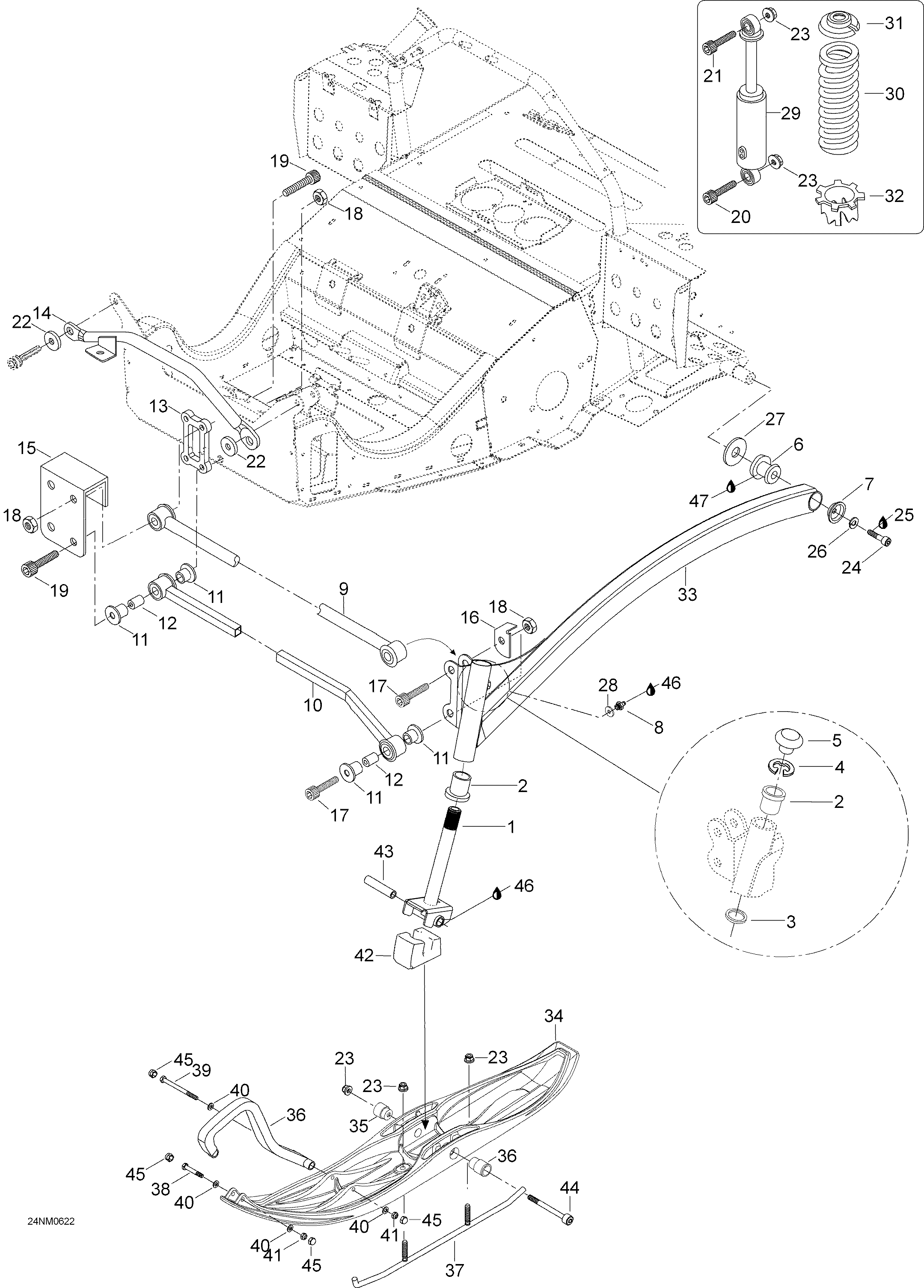

07- Front Suspension And Ski для BRP Lynx ST 550 - 2006
-
№АртикулНазвание
-
1506151234 Ski legSki leg
-
2505070003 CushionCushion
-
3505070004 SpacerSpacer
-
4371910400 CirclipCirclip
-
5572091300 CapCap
-
6570062200 Rubber damperRubber damper
-
7506115800 CupCup
-
834011 Grease nippleGrease nipple
-
95348207 Upper arm ass'yUpper arm ass'y
-
10605252227 Lower arm ass'yLower arm ass'y
-
11506149100 CushionCushion
-
12605450024 SleeveSleeve
-
135345384 SpacerSpacer
-
14605349134 BarBar
-
155345716 PlatePlate
-
16605448861 R.H. LimiterR.H. Limiter
-
16605448862 L.H. LimiterL.H. Limiter
-
1740371 Socket head screw M12 x 55Socket head screw M12 x 55
-
1833013 Elastic stop nut M12Elastic stop nut M12
-
1940370 Socket head screw M12 x 75Socket head screw M12 x 75
-
2040837 Socket head screw M10 x 55Socket head screw M10 x 55
-
2140254 Socket head screw M10 x 65Socket head screw M10 x 65
-
22605449801 WasherWasher
-
2333074 Elastic flanged nut M10Elastic flanged nut M10
-
2440810 Socket head screw M8 x 20Socket head screw M8 x 20
-
25293800060 Loctite 243, 10mlLoctite 243, 10ml
-
2620014 Lock washer A8Lock washer A8
-
27503146700 WasherWasher
-
2820007 Washer A6,4Washer A6,4
-
-605348910 Shock ass'y. Includes 29 to 32Shock ass'y. Includes 29 to 32
-
2923165 ShockShock
-
3025061 SpringSpring
-
31230076 Spring stopperSpring stopper
-
32230078 CamCam
-
33605251768 R.H. Swing arm ass'yR.H. Swing arm ass'y
-
33605251767 L.H. Swing arm ass'yL.H. Swing arm ass'y
-
34605148440 ADJ-ski. Includes 34 to 35ADJ-ski. Includes 34 to 35
-
35605348392 SleeveSleeve
-
36505070963 HandleHandle
-
37605349311 Carbide runner kitCarbide runner kit
-
3840009 Hex. screw M8 x 50Hex. screw M8 x 50
-
3940264 Hex. screw M8 x 90Hex. screw M8 x 90
-
4020004 Washer A8,4Washer A8,4
-
4133011 Elastic stop nut M8Elastic stop nut M8
-
42605348458 Ski stopperSki stopper
-
43506133300 SleeveSleeve
-
4440225 Socket head screw M10 x 140Socket head screw M10 x 140
-
4528056 CapCap
-
46413711500 Synthetic greaseSynthetic grease
-
47293550014 Grease, Super LubeGrease, Super Lube
