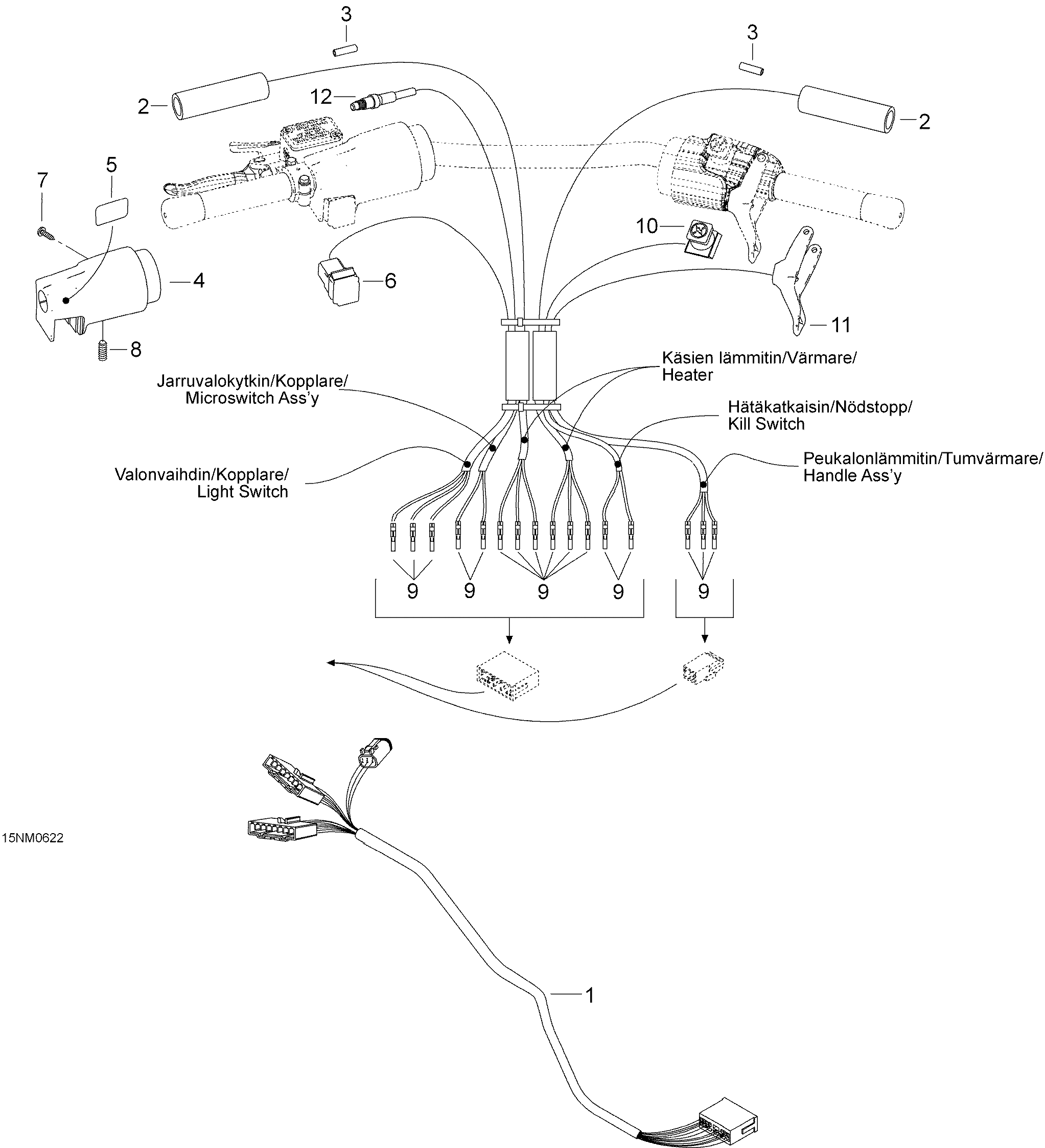

10- Steering Harness для BRP Lynx ST 550 - 2006
-
№АртикулНазвание
-
15248351 Wiring harnessWiring harness
-
2515175664 HeaterHeater
-
339023 TubingTubing
-
4515175696 HousingHousing
-
5415025500 DecalDecal
-
6515175390 SwitchSwitch
-
7250000022 ScrewScrew
-
8414440800 Screw M8 x 10Screw M8 x 10
-
942603 ConnectorConnector
-
10515175410 Switch killSwitch kill
-
11512059144 Throttle handleThrottle handle
-
12507032334 Microswitch ass'yMicroswitch ass'y
