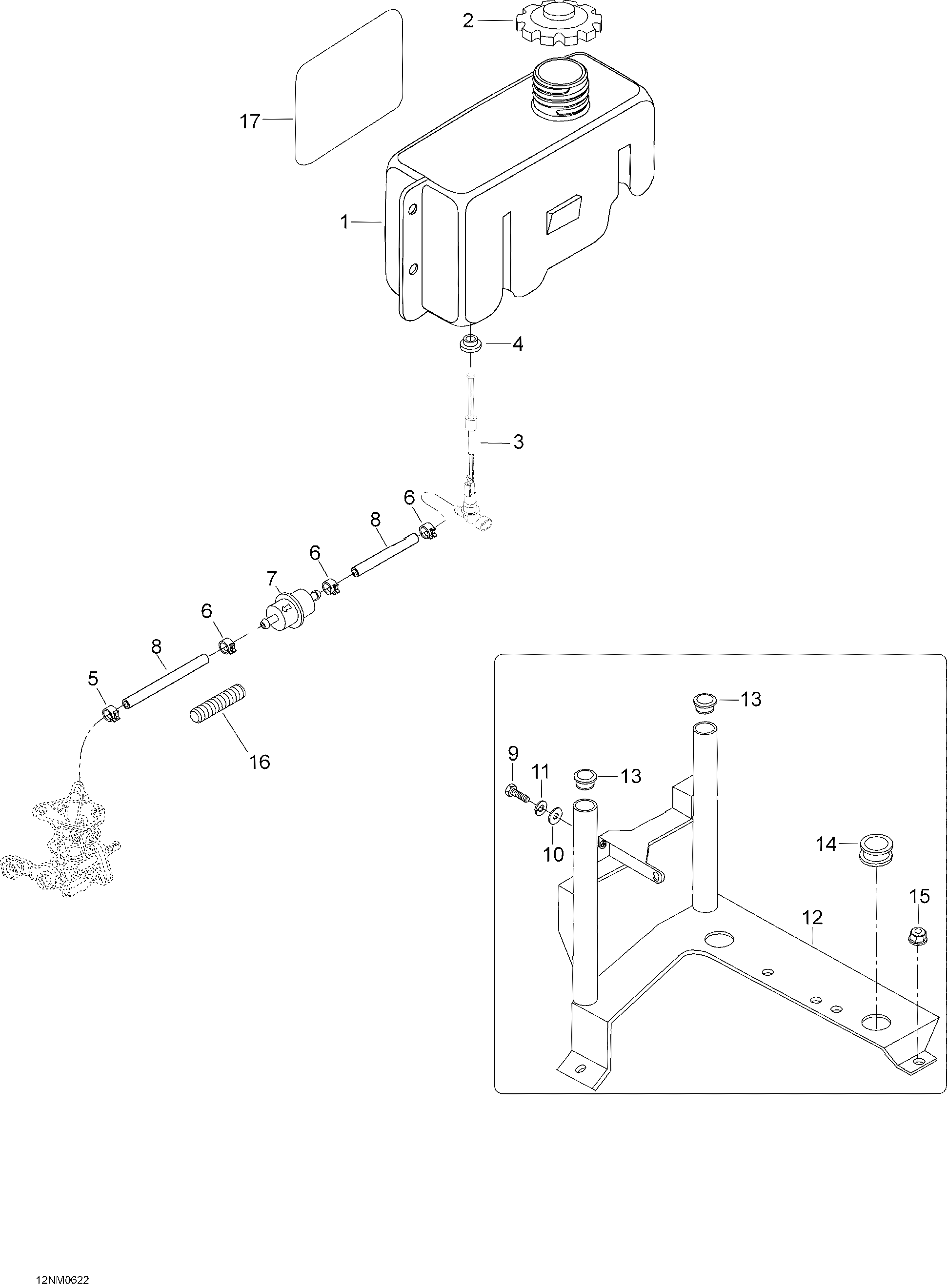

02- Oil System для BRP Lynx ST 550 - 2006
-
№АртикулНазвание
-
15142700 Oil tankOil tank
-
2519000044 Oil tank capOil tank cap
-
3605452095 Level switchLevel switch
-
4570023000 GrommetGrommet
-
5414420700 ClampClamp
-
6414415200 ClampClamp
-
7414536500 Oil filterOil filter
-
839046 Oil lineOil line
-
940322 Self tapping screw M6 x 16Self tapping screw M6 x 16
-
1020009 Washer A6,4Washer A6,4
-
1120052 Lock washer A6Lock washer A6
-
12605350521 SupportSupport
-
1328136 PlugPlug
-
1428022 GrommetGrommet
-
1533200 Elastic flanged nut M6Elastic flanged nut M6
-
1628015 TubingTubing
-
175443578 Heat-protectorHeat-protector
