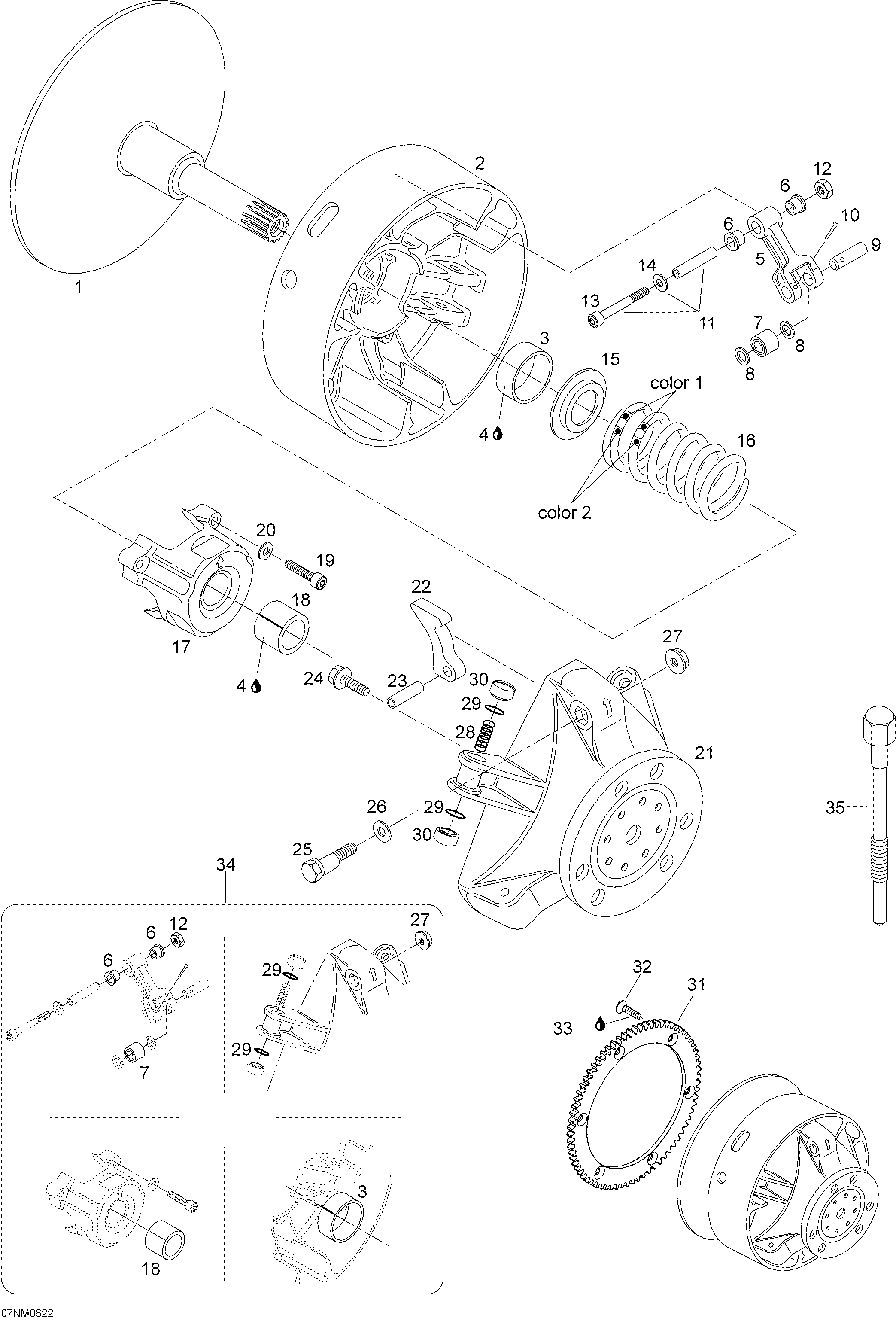

05- Drive Pulley для BRP Lynx ST 550 - 2006
-
№АртикулНазвание
-
1417222412 Fix flangeFix flange
-
2417222241 Sliding flange. Includes 2 to 4Sliding flange. Includes 2 to 4
-
3417004201 Bushing outer halfBushing outer half
-
4413703100 Loctite 609, 10ccLoctite 609, 10cc
-
5417222383 Lever assy. Includes 5 to 6Lever assy. Includes 5 to 6
-
6417004305 Flange bushingFlange bushing
-
7417003900 Roller assyRoller assy
-
8417004302 Thrust washerThrust washer
-
9417004308 PinPin
-
10732958001 Cotter pinCotter pin
-
11417004800 Fitting screw assyFitting screw assy
-
1233010 Nut elastic M6Nut elastic M6
-
13222965065 Allen screw M6 x 50Allen screw M6 x 50
-
1420003 Flat washer 6mmFlat washer 6mm
-
15417222044 Spring seatSpring seat
-
16415034900 Spring purple/blueSpring purple/blue
-
17417222304 Spring cover assy. Includes 17 to 18Spring cover assy. Includes 17 to 18
-
18417004501 Spring cover bushingSpring cover bushing
-
19250000038 Allen screw M6 x 40Allen screw M6 x 40
-
20420245370 Friction washerFriction washer
-
21417222081 Gouvernor cup assyGouvernor cup assy
-
22417005290 Ramp 290Ramp 290
-
23732804009 Dowl tubeDowl tube
-
24210361890 Screw M6 x 18Screw M6 x 18
-
25417005500 Calibration screwCalibration screw
-
26417005600 WasherWasher
-
27233061414 Locking nut M6Locking nut M6
-
28417005700 SpringSpring
-
29732401030 O-RingO-Ring
-
30417005800 Shoe sliderShoe slider
-
31417222858 Ring gearRing gear
-
32236281684 Screw M8 x 16Screw M8 x 16
-
33293800005 Loctite 271, 10mlLoctite 271, 10ml
-
34417006100 Clutch repair kitClutch repair kit
-
35529007900 Puller inner halfPuller inner half
