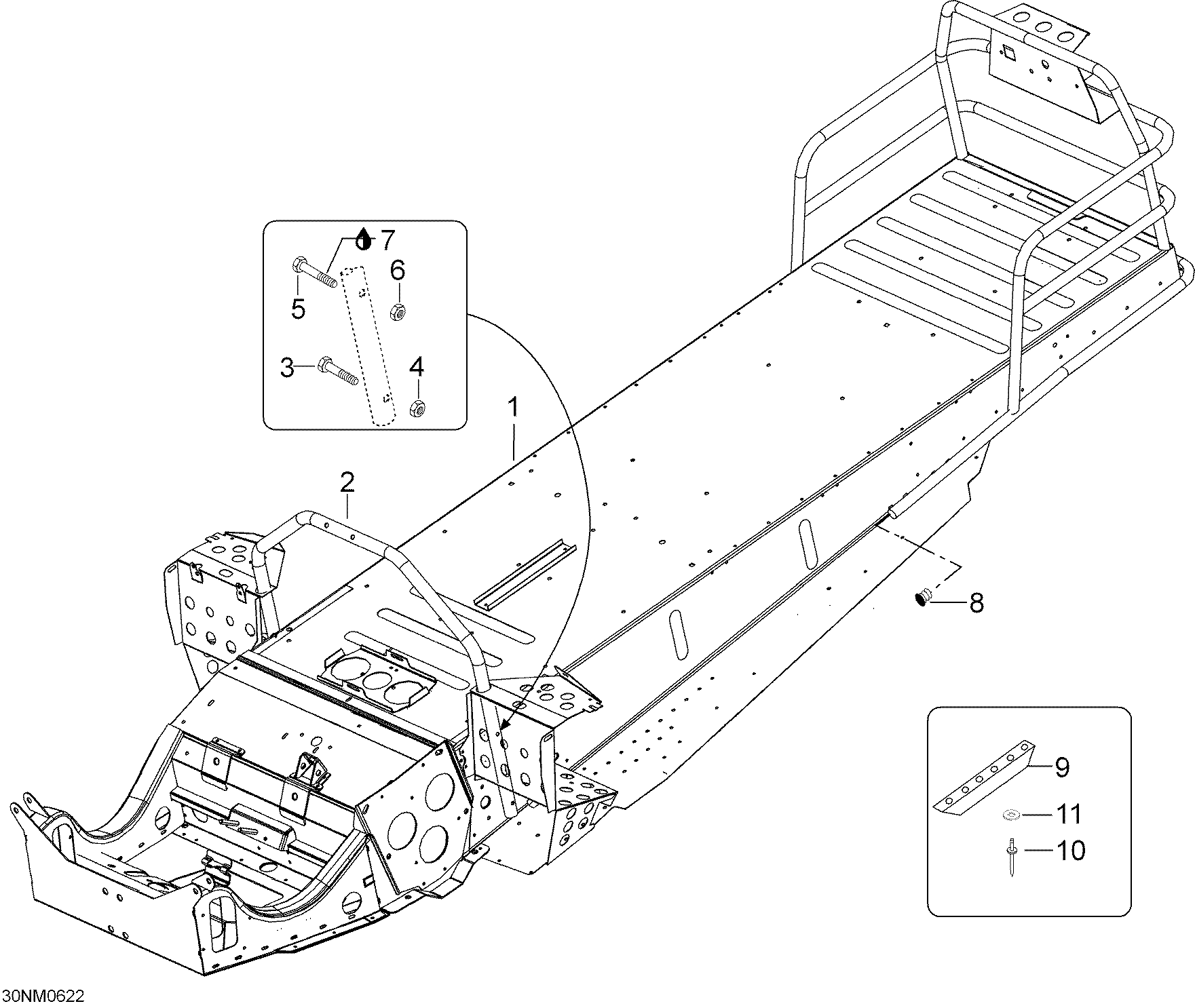

09- Frame для BRP Lynx ST 550 - 2006
-
№АртикулНазвание
-
1605152565 Frame ass'y. Includes 1 to 2Frame ass'y. Includes 1 to 2
-
2605150258 Handle steering supportHandle steering support
-
340032 Hex. screw M6 x 40Hex. screw M6 x 40
-
433051 Nut M6Nut M6
-
540002 Elastic flanged nut M6Elastic flanged nut M6
-
633200 Elastic flanged nut M6Elastic flanged nut M6
-
7293800060 Loctite 243, 10mlLoctite 243, 10ml
-
828136 PlugPlug
-
9605349264 ProtectorProtector
-
1036005 RivetRivet
-
1120002 Washer A5,3Washer A5,3
