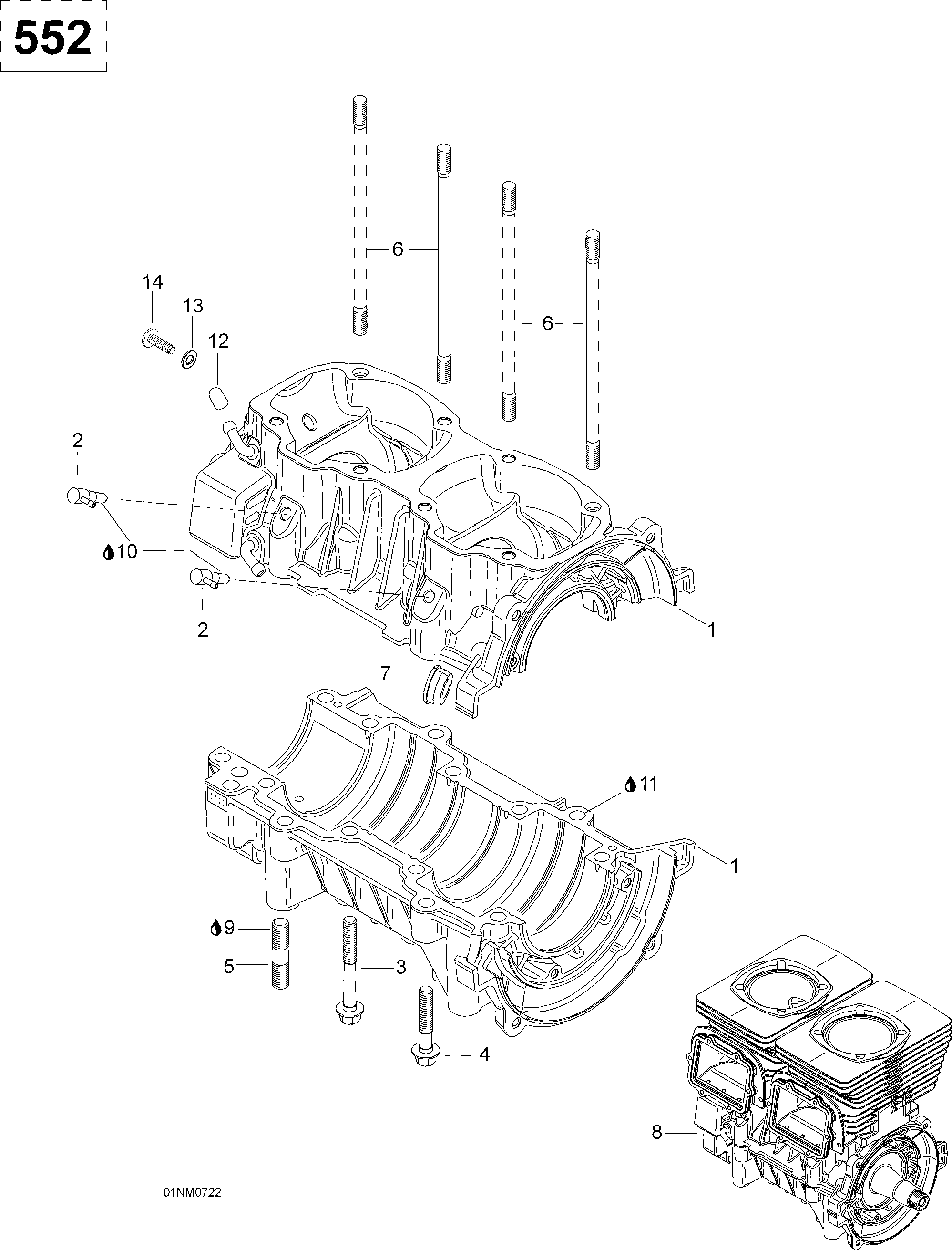

01- Crankcase для BRP Lynx ST 550 - 2007
-
№АртикулНазвание
-
1420891061 Crankcase ass'y. Includes 1 to 4Crankcase ass'y. Includes 1 to 4
-
2420956510 Checkvalve ass'yCheckvalve ass'y
-
3420640951 Hex. screw M8 x 68.5Hex. screw M8 x 68.5
-
4420640431 Hex. screw M8 x 45Hex. screw M8 x 45
-
5420940704 Stud M10Stud M10
-
6420840556 Stud M8 x 173.5Stud M8 x 173.5
-
7420860962 Cable crommetCable crommet
-
8300055204 Short block engineShort block engine
-
9293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
10413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
11420297906 Sealing compound, 30 mlSealing compound, 30 ml
-
12420960772 Protection capProtection cap
-
13420250311 WasherWasher
-
14420640896 Taptite screw M5 x 12Taptite screw M5 x 12
