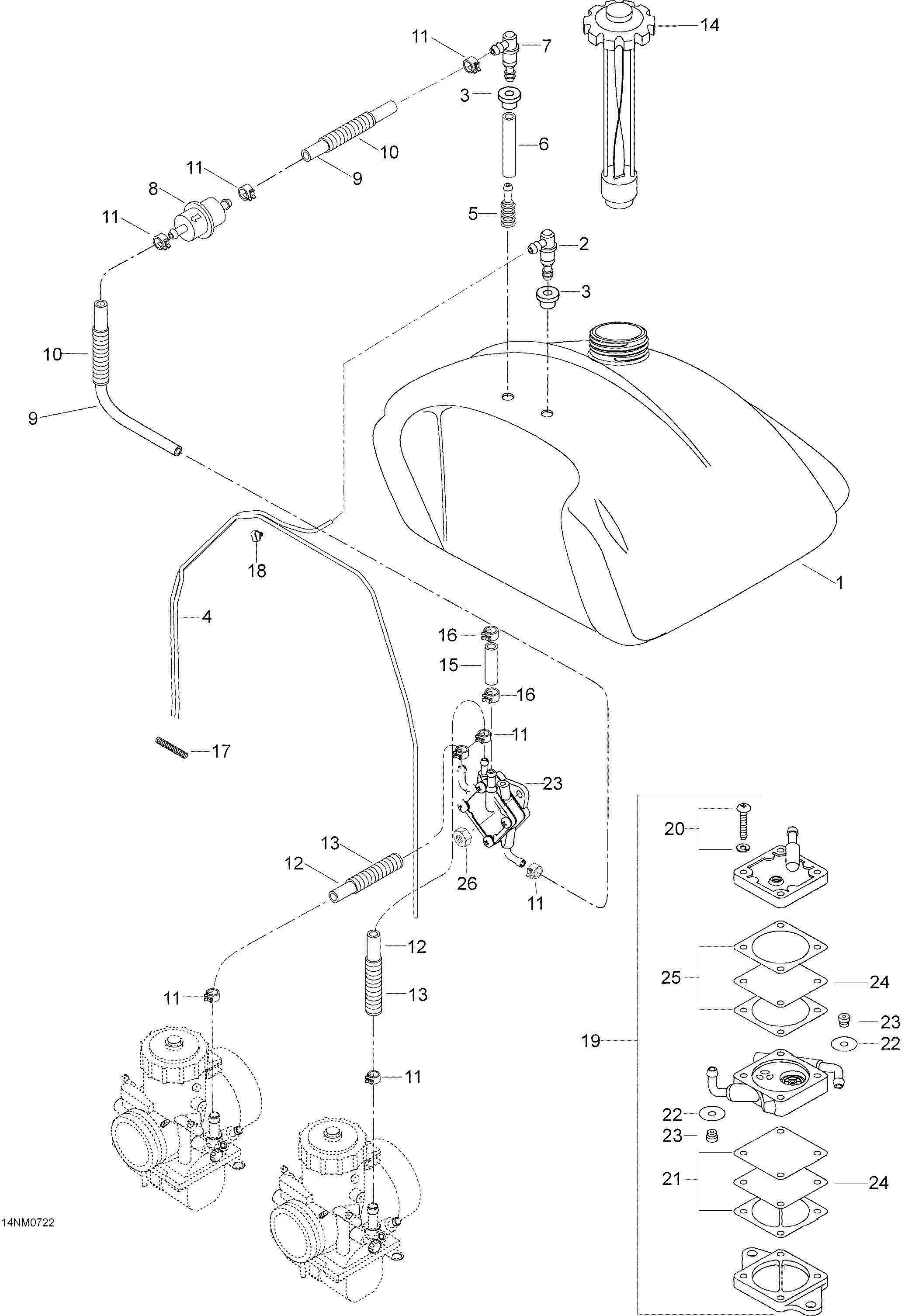

02- Fuel System для BRP Lynx ST 550 - 2007
-
№АртикулНазвание
-
1519393 Fuel tankFuel tank
-
2533535 Connector-maleConnector-male
-
328037 GrommetGrommet
-
439035 AirpipeAirpipe
-
5414872100 Fuel filterFuel filter
-
639048 Fuel hoseFuel hose
-
75341709 Connector-maleConnector-male
-
8605352516 Fuel filterFuel filter
-
939004 Fuel hoseFuel hose
-
1028012 Spiral tubeSpiral tube
-
11414554800 ClampClamp
-
1239004 Fuel hoseFuel hose
-
1328012 Spiral tubeSpiral tube
-
14605349994 CapCap
-
1539001 Fuel hoseFuel hose
-
16414420700 ClampClamp
-
1725003 SpringSpring
-
18513032923 Clamp tubeClamp tube
-
1919058 Fuel pump. Includes 19 to 25Fuel pump. Includes 19 to 25
-
21404902300 GasketGasket
-
22404902100 GrommetGrommet
-
23275500042 ValveValve
-
24404902200 DiaphragmDiaphragm
-
25404902400 GasketGasket
-
2633010 Elastic stop nut M6Elastic stop nut M6
