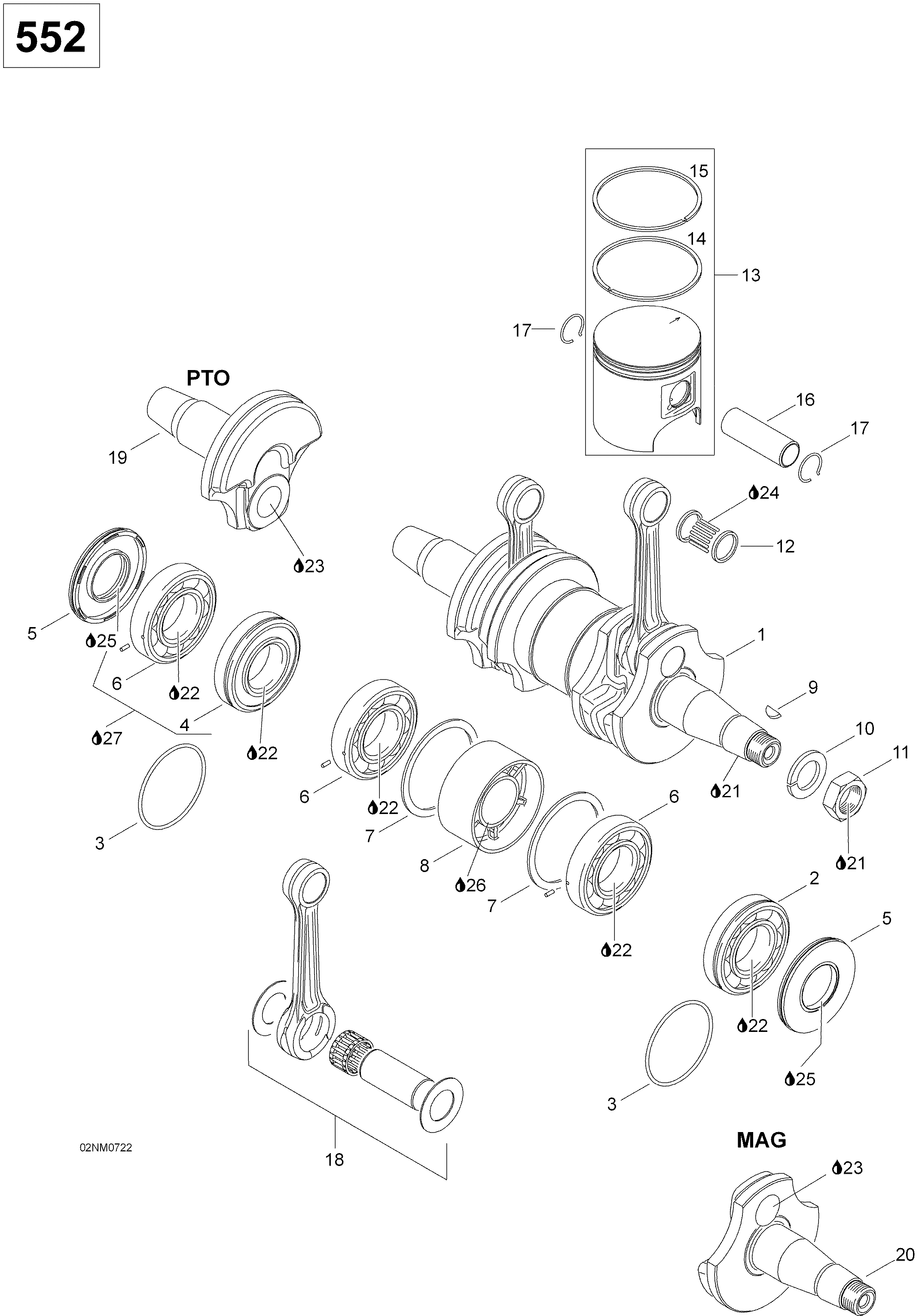

01- Crankshaft для BRP Lynx ST 550 - 2007
-
№АртикулНазвание
-
1420889062 Crankshaft ass'y. Includes 1 to 8Crankshaft ass'y. Includes 1 to 8
-
2420832571 Ball bearing 6207Ball bearing 6207
-
3420250165 O-ring 64 mmO-ring 64 mm
-
4420832639 Ball bearing 6207Ball bearing 6207
-
5420831950 Oil sealOil seal
-
6420832573 Ball bearing 6207 ass'yBall bearing 6207 ass'y
-
7420927710 Retaining diskRetaining disk
-
8420850149 Labyrinth sleeveLabyrinth sleeve
-
9420246055 Woodruff keyWoodruff key
-
10420945759 Lock washerLock washer
-
11420842230 Nut M22Nut M22
-
12420832420 Cageless needle bearingCageless needle bearing
-
13420889050 Piston assy 75.86 mm. Includes 13 to 15Piston assy 75.86 mm. Includes 13 to 15
-
13420889051 Piston assy 76.11 mm. Includes 13 to 15Piston assy 76.11 mm. Includes 13 to 15
-
13420889052 Piston assy 76.36 mm. Includes 13 to 15Piston assy 76.36 mm. Includes 13 to 15
-
14420815300 Rectangular ring 76.00 mmRectangular ring 76.00 mm
-
14420815301 Rectangular ring 76.25 mmRectangular ring 76.25 mm
-
14420815302 Rectangular ring 76.50 mmRectangular ring 76.50 mm
-
15420815155 Semi-trapez ring 76.00 mmSemi-trapez ring 76.00 mm
-
15420815156 Semi-trapez ring 76.25 mmSemi-trapez ring 76.25 mm
-
15420815157 Semi-trapez ring 76.50 mmSemi-trapez ring 76.50 mm
-
16420916405 Piston pinPiston pin
-
17420845106 CirclipCirclip
-
18420889064 Crankshaft repair kitCrankshaft repair kit
-
19420819181 Half crankshaft (P.T.O.)Half crankshaft (P.T.O.)
-
20420819210 Half crankshaft (M.A.G.)Half crankshaft (M.A.G.)
-
21293800060 Loctite 243, 10mlLoctite 243, 10ml
-
22293800070 Loctite 767, antiseize lubricant, 8 ozLoctite 767, antiseize lubricant, 8 oz
-
23413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
24413802900 Injection oil (12 x 1 Liter)Injection oil (12 x 1 Liter)
-
25420899271 Petamo grease, GHY133N, 400 gPetamo grease, GHY133N, 400 g
-
27293550021 Isoflex grease, 50 gIsoflex grease, 50 g
